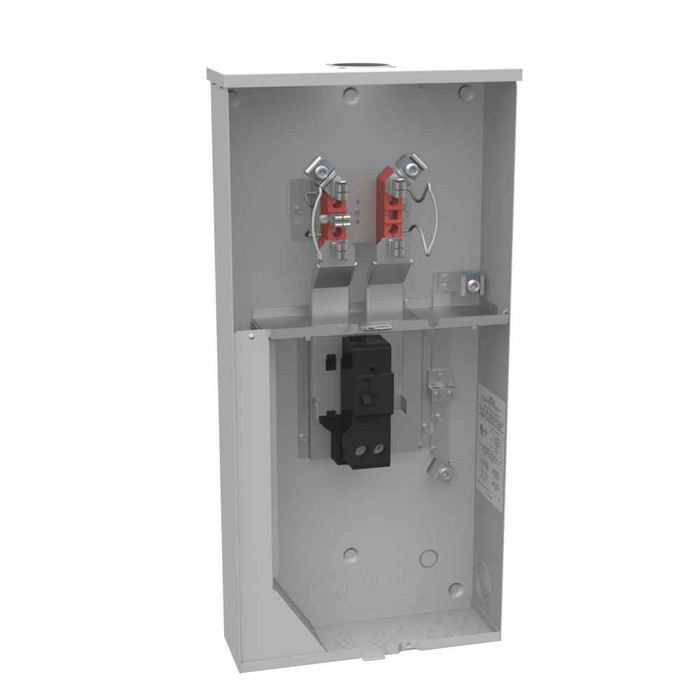

Milbank Ringless Meter Socket with Main Breaker 4 Terminal, 100–200 Amp, Outdoor, Utility Approved

Milbank Ringless Meter Socket with Main Breaker 200 Amp 1 Phase Outdoor Surface Mount

(No reviews yet) Write a Review

Model: U5844-PXL-100

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,300.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Ringless Meter Socket with Main Breaker 200 Amp 1 Phase Outdoor Surface Mount

Professional electrical metering solution with integrated main breaker protection

The Milbank Ringless Meter Socket with Main Breaker delivers reliable electrical metering and main circuit protection in a single outdoor-rated unit. This 200 amp continuous rated meter socket features 1 phase configuration with integrated main breaker, 4 terminal design, and durable G90 galvanized steel construction with powder coat finish for long-lasting outdoor performance.

Professional Features & Benefits

  • 200 Amp Continuous Rating: Handles high-capacity electrical loads with reliable amperage capacity for demanding residential and commercial applications.
  • Integrated Main Breaker: Combines metering and main circuit protection in one unit, simplifying installation and reducing equipment footprint.
  • Type 3R Outdoor Enclosure: Weather-resistant design protects internal components from rain, sleet, and outdoor environmental conditions.
  • G90 Galvanized Steel Construction: Corrosion-resistant material with powder coat finish ensures durability and extended service life in outdoor installations.
  • 4 Terminal Ringless Design: Accommodates flexible wiring configurations with lay-in terminals supporting 6 AWG to 350 kcmil wire range.
  • UL Listed Compliance: Meets rigorous safety standards for reliable operation and code compliance in professional electrical installations.
  • Surface Mount Installation: Streamlined mounting system enables efficient installation on exterior walls and service locations.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Barrel Lock Provision: 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision
  • Brand Name: Milbank
  • Departent: Electrical
  • Equipment Ground: 2 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MTMN
  • Product Height: 30 IN
  • Product Length: 4.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.5L x 14.01W x30H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 14.01 IN

Professional Applications

  • Residential Service Entrance Metering
  • Commercial Building Electrical Service
  • Multi-Unit Property Metering
  • Outdoor Electrical Service Installations
  • Utility Company Approved Metering Solutions
  • Electrical Contractor Service Upgrades

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R outdoor rating, ensuring dependable performance in demanding electrical service applications. The robust G90 galvanized steel construction with powder coat finish provides long-term durability and corrosion resistance for professional electrical installations.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Equipment Ground:
2 Barrel Ground Lug
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MTMN
Product Height:
30 IN
Product Length:
4.5 IN
Product Size:
4.5L x 14.01W x30H
Product Type:
Meter Main Combination
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
14.01 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
4
Product Group:
Power Distribution

Milbank U5844-PXL-100 – Frequently Asked Questions

1) Will the Milbank U5844-PXL meter socket work on a 200 amp residential service upgrade?
Yes, the U5844-PXL is a 200 amp continuous rated, single phase meter socket with an integrated main breaker, rated up to 240 volts AC at 60 Hertz. It's a 4 terminal, single meter position socket, which is the standard arrangement for a 120/240V single phase residential or light commercial service. The main breaker itself is ordered separately by ampere size, so you can put a 100, 125, 150 or 200 amp main in the same 200 amp rated enclosure.
2) What main breaker sizes can I get in the Milbank U5844-PXL ringless meter socket?
Four breaker sizes: 100 amp (U5844-PXL-100), 125 amp (U5844-PXL-125), 150 amp (U5844-PXL-150) and 200 amp (U5844-PXL-200). Each carries one main breaker in a 200 amp rated can, so undersizing the breaker doesn't change the enclosure or the wire range. Pick the breaker to match the service the utility is setting, not the panel downstream.
3) My utility requires a horn bypass meter socket. Does Milbank U5844-PXL come with bypass?
Horn bypass is a separate ordering option on the U5844-PXL, not standard. The KK suffix gets you bypass: U5844-PXL-100-KK with a 100 amp main, U5844-PXL-200-KK with a 200 amp main, and U5844-PXL-200-KK-BLG which adds a 7/8 inch barrel lock provision. The plain -100, -125, -150 and -200 numbers have no bypass. Many utilities won't accept a socket without bypass on a 200 amp service, so confirm the requirement before you pick the suffix.
4) Can I land 4/0 aluminum or 350 kcmil service entrance conductors in a Milbank U5844-PXL?
Line side terminals on the U5844-PXL take 6 AWG through 350 kcmil, so 4/0 aluminum SER or 350 kcmil copper both land. The terminals are lay-in type, which means you drop the conductor in from the side rather than threading it end-on through a bore. That makes a big service conductor a lot easier to dress in a 14.01 inch wide can.
5) Do I still need a separate main breaker panel if I install the Milbank U5844-PXL?
No, the U5844-PXL is a meter socket with the main disconnect built in, so it handles the service disconnect at the meter. What it does not do is distribute branch circuits: there are zero receptacles and no branch positions in the can, so you still feed a downstream load center for circuits. Combining meter and main in one enclosure is what saves you the separate outdoor disconnect a straight meter socket would need.
6) How much wall space do I need for the Milbank U5844-PXL meter socket?
Lay out for 4.5 x 14.01 x 30 inches, with 30 inches being the height and 14.01 the width. It's surface mount, so it hangs on the exterior wall rather than recessing into it, and the 4.5 inch depth is what projects off the face of the wall. Thirty inches of vertical run matters on a service upgrade where you're fitting between the meter height the utility wants and a panel or gutter below.
7) Is the Milbank U5844-PXL rated for outdoor mounting in the weather?
Type 3R and UL Listed, so it's built for outdoor wall mounting where it sees rain and sleet. The can is G90 galvanized steel with a powder coat finish, and the internal insulation is glass polyester. Type 3R is a rainproof rating, not a washdown or dusttight one, so it suits a normal exterior service wall rather than a hosedown or corrosive process environment.
8) Does the Milbank U5844-PXL meter socket accept a utility barrel lock?
Every version has a 9/16 inch knockout and an angle bracket for a barrel lock provision. If your utility specifies a 7/8 inch barrel lock instead, order U5844-PXL-200-KK-BLG, which is built with the 7/8 inch provision alongside horn bypass and a 200 amp main. Barrel lock size is the kind of detail a utility rejects an installation over, so match it to their spec sheet.
9) Should I use a ringless meter socket or a ring type one for my service?
That call belongs to the serving utility, not the installer. The U5844-PXL is ringless, meaning the cover seals and locks without a sealing ring around the meter. Utilities standardize on one style or the other across their territory and will reject the wrong one at inspection. Call the utility with the address before ordering, then match amperage, jaw count (this is a 4 terminal, 1 position socket) and bypass requirement to what they specify.
10) I'm standardizing meter sockets across a portfolio of rental properties. Does the Milbank U5844-PXL cover services from 100 to 200 amps?
One enclosure covers the whole range. Same 200 amp rated, Type 3R, surface mount can whether you order the 100, 125, 150 or 200 amp main, and the same 6 AWG to 350 kcmil line side wire range on all of them. So the mounting pattern, the 4.5 x 14.01 x 30 inch footprint and the installation detail stay identical across the portfolio while only the breaker size changes per service. That keeps one part family, code MTMN, on the shelf instead of four.
