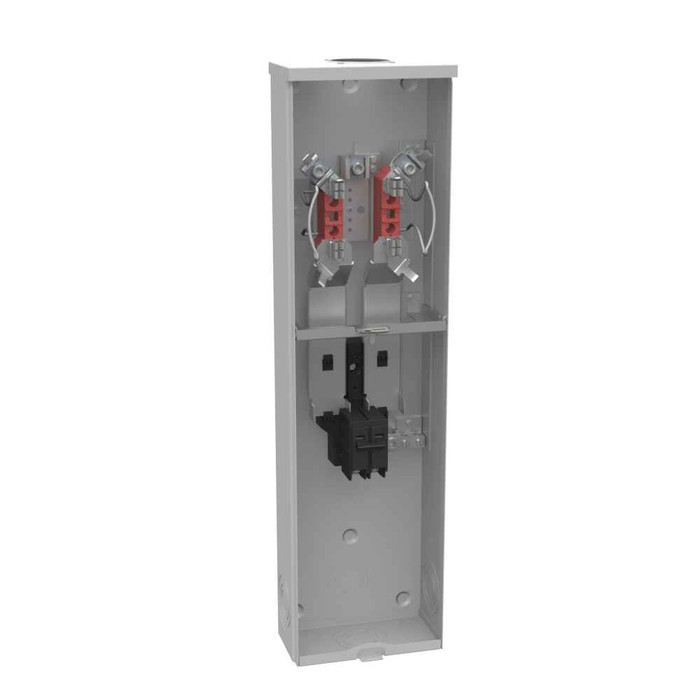

Milbank U5842-RL Ringless Meter Main 4 Terminal, 100–200 Amp, Small Hub, Outdoor Service

Milbank Ringless Meter Socket with Main Breaker 200 Amp 1 Phase 240V Outdoor Service

(No reviews yet) Write a Review

Model: U5842-RL-100-KK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$997.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Ringless Meter Socket with Main Breaker 200 Amp 1 Phase 240V Outdoor Service

Professional outdoor electrical service solution with integrated main breaker protection

The Milbank Ringless Meter Socket with Main Breaker delivers reliable 200 amp continuous service for residential and commercial applications. This 1 phase, 240V outdoor service unit features G90 galvanized steel construction with powder coat finish for superior weather resistance and durability. The 4 terminal design with lay-in terminals accommodates 6 AWG to 350 kcmil conductors, while the small hub opening configuration provides versatile overhead cable entry options.

Professional Features & Benefits

  • 200 Amp Continuous Rating: Provides robust electrical capacity for demanding residential and light commercial applications with reliable power distribution.
  • 1 Phase 240V Configuration: Standard residential voltage rating ensures compatibility with most home electrical systems and appliances.
  • G90 Galvanized Steel Construction: Superior corrosion resistance and structural integrity for long-term outdoor performance in harsh weather conditions.
  • 4 Terminal Lay-In Design: Simplified installation with secure conductor connections accommodating wire sizes from 6 AWG to 350 kcmil.
  • Type 3R Enclosure Rating: Weather-resistant protection suitable for outdoor installations with protection against rain, sleet, and ice formation.
  • UL Listed Certification: Meets rigorous safety standards ensuring code compliance and reliable performance in electrical service applications.
  • Small Hub Opening: Compact design optimizes space utilization while providing secure overhead cable entry and professional appearance.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Cable Entry: Overhead
  • Departent: Electrical
  • Equipment Ground: 2 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Hub Opening
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Number Branch Circuits: 1
  • Number Of Jaws: 4 Terminal
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MTMN
  • Product Height: 30 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Type: Ringless Meter Socket
  • Special Features: Commonwealth Edison Chicago Housing Authority
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 8 IN

Professional Applications

  • Residential electrical service installations and upgrades
  • Small commercial and retail establishments
  • Multi-unit residential properties and condominiums
  • Professional offices and service buildings
  • Light industrial facilities requiring reliable metered power
  • Municipal and housing authority projects
  • Outdoor electrical service applications requiring weather protection

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability in outdoor environments, while the professional 4 terminal design provides secure connections and simplified installation for electrical contractors and service professionals.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Cable Entry:
Overhead
Equipment Ground:
2 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Hub Opening
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Number Branch Circuits:
1
Number Of Jaws:
4 Terminal
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MTMN
Product Height:
30 IN
Product Type:
Ringless Meter Socket
Special Features:
Commonwealth Edison Chicago Housing Authority
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
8 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Small Hub Opening
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Number of Terminations:
4
Product Group:
Power Distribution

Milbank U5842-RL-100-KK – Frequently Asked Questions

1) Will the Milbank U5842-RL meter main work for a 200 amp residential service upgrade on 120/240V single phase?
Yes. The U5842-RL is a ringless meter socket with main breaker rated 200 continuous amps, single phase, up to 240 volts AC at 60 Hz. It carries a 4 terminal (4 jaw) socket, which is the standard configuration for single phase 3 wire 120/240V self contained metering. One meter position, one branch circuit out, so it serves a single dwelling or single tenant.
2) What main breaker sizes does the Milbank U5842-RL come with, and can I get one without a breaker installed?
Three breaker sizes are factory installed: 100 amp (U5842-RL-100), 125 amp (U5842-RL-125) and 200 amp (U5842-RL-200). If you want to supply your own breaker, order U5842-RL-KK, which is a main breaker provision with horn bypass and no breaker fitted. Note that the socket itself is rated 200 continuous amps regardless of which breaker you pick, so a 100 amp version is a 200 amp socket with a 100 amp main.
3) Does the Milbank U5842-RL have a meter bypass, and which version do I order if my utility requires one?
Horn bypass is an option, not standard on every version. Order a KK suffix for it: U5842-RL-100-KK, U5842-RL-200-KK, U5842-RL-KK (bypass with breaker provision only), or the CECHA approved bypass versions U5842-RL-125-KK-CECHA and U5842-RL-KK-CECHA. The plain U5842-RL-100, -125 and -200 do not carry the bypass designation. Many utilities require a bypass so the meter can be pulled without dropping the customer load, so check the utility's approved equipment list before you pick the suffix.
4) Is the Milbank U5842-RL approved for ComEd and Chicago Housing Authority jobs?
For Commonwealth Edison and Chicago Housing Authority work, order a CECHA version: U5842-RL-125-KK-CECHA (125 amp main breaker, horn bypass) or U5842-RL-KK-CECHA (horn bypass, main breaker provision). The CECHA suffix is what identifies the ComEd and CHA configuration on the U5842-RL, and it is only on those two. If you buy a non CECHA version for a ComEd territory job you risk a failed utility inspection.
5) Can the Milbank U5842-RL be fed from underground, or is it overhead only?
Overhead. Cable entry on the U5842-RL is overhead, and the top is furnished as a small hub opening for the service mast or conduit. If your service is underground lateral, this is the wrong socket. You want a meter main built for bottom or side underground entry instead, not this unit with a hub in the top.
6) Can a Milbank U5842-RL meter main be mounted outdoors in rain and freezing weather?
Yes, it is built for outdoor service. The enclosure is Type 3R and UL Listed, which means it is rated against rain, sleet and ice on the outside of the enclosure. Shell is G90 galvanized steel with a powder coat finish, and the internal insulation is glass polyester. Type 3R is not a washdown or dust tight rating, so for a hose down or heavy dust environment you want a higher enclosure type.
7) Does the Milbank U5842-RL include a breaker panel for branch circuits, or do I still need a load center?
You still need a load center. The U5842-RL is a meter socket with a single main breaker and one branch circuit out, and it has no receptacles. It combines the meter and the service disconnect in one can, then feeds your panel downstream. Anything beyond that single main, meaning your lighting and appliance circuits, goes in a separate load center.
8) How much wall space do I need for a Milbank U5842-RL meter socket with main breaker?
Plan on 30 inches of height and 8 inches of width for the enclosure. It is surface mounted, so it bolts flat to the wall or a backer board rather than recessing into it, and you need clear working space in front of it per your local code. Note this is a narrow shell, so on a crowded meter bank wall the 8 inch width is what lets it sit between other equipment.
9) What is the difference between a ringless meter socket and a ring type socket, and which one does my utility want?
A ringless socket like the U5842-RL uses a hinged or lift off cover that seals to the enclosure itself, with the utility's seal on the cover. A ring type socket instead uses a separate sealing ring clamped around the meter's rim. They are not interchangeable, and the utility dictates which one it will accept in its territory. Confirm ringless versus ring type with the serving utility before ordering, because a ringless can rarely be converted in the field.
10) Is there a Milbank U5842-RL version with a padlockable hasp for a job that requires the cover be locked?
Yes. U5842-RL-100-HSP is furnished with a stainless steel hasp, so the cover can be padlocked in addition to the utility seal. It comes with a 100 amp main breaker. The hasp option is worth specifying on housing authority, multi family, and any exposed street level installation where the enclosure is reachable from the sidewalk.
11) Can I standardize on the Milbank U5842-RL across a portfolio of 100 to 200 amp overhead services?
That is a reasonable standard for overhead fed single phase 120/240V services. The same U5842-RL shell covers 100, 125 and 200 amp mains, a breaker provision version, horn bypass, a hasp option and the CECHA configuration, all 4 terminal, 1 position, Type 3R and UL Listed. Stocking one family means one set of mounting details and one wire range, 6 AWG to 350 kcmil, for your crews. It does not cover underground fed services or 3 phase, so those openings need a different socket.
