Milbank 200A Single Phase Ring...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,510.54

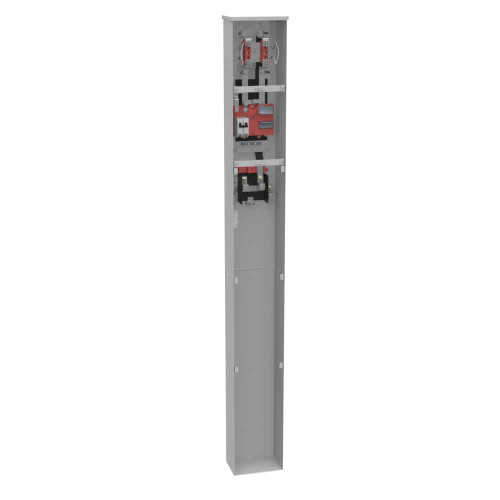

Milbank U5138 4 Terminal Ringless Meter Socket - Plain Top Horn Bypass, Single Pedestal Pad Mount

Milbank 200A Single Phase Ringless Meter Socket with Horn Bypass - Pedestal Mount Mobile Home Power System

(No reviews yet) Write a Review

Model: U5138-O-200S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,510.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A Single Phase Ringless Meter Socket with Horn Bypass - Pedestal Mount Mobile Home Power System

Professional Mobile Home Power Distribution with Horn Bypass Capability

The Milbank 200A Single Phase Ringless Meter Socket delivers reliable mobile home power distribution with professional horn bypass capability. This pedestal-mounted system features G90 galvanized steel construction with powder coat finish, 4-terminal configuration, and UL Listed Type 3R rating for dependable outdoor service up to 240 volts alternating current.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides substantial power capacity for comprehensive mobile home electrical service and load requirements.
  • Horn Bypass Provision: Enables utility service continuity during meter maintenance or replacement without interrupting power to critical loads.
  • G90 Galvanized Steel with Powder Coat Finish: Delivers superior corrosion resistance and long-term durability in outdoor mobile home installations.
  • 4 Terminal Ringless Design: Simplifies meter installation and removal while maintaining secure electrical connections and reducing installation time.
  • UL Listed Type 3R Rating: Ensures compliance with safety standards and provides reliable protection against weather conditions in outdoor applications.
  • Underground Cable Entry: Accommodates direct burial cable installations common in mobile home park electrical distribution systems.
  • Glass Polyester Insulation: Provides excellent electrical isolation and thermal stability for safe, reliable long-term operation.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Mobile Home Power
  • Brand Name: Milbank
  • Bypass Provision: Horn Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: Ground Bar
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 1/0 AWG - 300 kcmil
  • Number Branch Circuits: 4
  • Number Of Jaws: 4 Terminal
  • Number Of Meter Positions: Single Power Head
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MHSP
  • Product Height: 56 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pedestal
  • Product Type: Ringless Meter Socket
  • Special Features: Florida Meter Group
  • Standard: UL Listed;Type 3R
  • Terminal: Double Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 9.688 IN

Professional Applications

  • Mobile Home Parks and Communities
  • Manufactured Housing Installations
  • Recreational Vehicle Parks
  • Temporary Housing Facilities
  • Remote Residential Properties
  • Utility Service Points
  • Electrical Distribution Systems

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability, while the glass polyester insulation provides superior electrical performance for dependable mobile home power distribution service.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Mobile Home Power
Brand Name:
Milbank
Bypass Provision:
Horn Bypass
Cable Entry:
Underground
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
1/0 AWG - 300 kcmil
Number Branch Circuits:
4
Number Of Jaws:
4 Terminal
Number Of Meter Positions:
Single Power Head
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MHSP
Product Height:
56 IN
Product Type:
Ringless Meter Socket
Special Features:
Florida Meter Group
Standards:
UL Listed;Type 3R
Terminal:
Double Mechanical
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pedestal
Amps:
200
Product Width:
9.688 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Plain Top
Installation Category:
Pedestal
Terminal Type:
Double Mechanical
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
4
Product Group:
Power Distribution

Milbank U5138-O-200S – Frequently Asked Questions

1) What is the difference between the Milbank U5138-O and the U5138-O-200S mobile home pedestal?
Both are the same 200 amp ringless, horn bypass pedestal. The U5138-O ships with a main breaker provision, meaning the space and mounting are there but you supply and install the breaker. The U5138-O-200S comes with a 200 amp main breaker already installed. Order the -200S if you want the service disconnect factory fitted; order the plain -O if the utility or your spec calls for a specific breaker.
2) Will the Milbank U5138 meter pedestal take 4/0 aluminum URD from the transformer?
Yes. The line side terminals accept 6 AWG through 350 kcmil, so 4/0 aluminum URD lands directly. Load side terminals take 1/0 AWG through 300 kcmil. Both are double mechanical lugs, and cable entry is underground, which is how mobile home park feeds are normally run.
3) Can this Milbank pedestal be mounted on a wall or a pole instead of a pad?
No. The U5138 is built as a pedestal unit, pad mounted on a single base, 56 inches tall and 9.688 inches wide. There is no wall or pole mounting provision on it. For a wall mounted service you need a standard surface mount meter socket, not this pedestal.
4) Does a horn bypass meter socket let the utility pull the meter without killing power?
That is the point of it. The horn bypass on the U5138 lets a lineman jumper line to load so the meter can be pulled, tested or swapped while the loads downstream stay energized. Many utilities require horn bypass on 200 amp pedestal services. If your utility does not permit bypass, you need a non-bypass socket instead.
5) Is the Milbank U5138 meter pedestal rated for outdoor use in a coastal or wet area?
It carries a UL Listing and a Type 3R enclosure rating, which is the standard rainproof rating for outdoor service equipment. The enclosure is G90 galvanized steel with a powder coat finish, and the internal insulation is glass polyester. Type 3R is rain and sleet rated, not submersion rated, so the pad still needs to sit above grade and above any standing water.
6) Does the Milbank U5138 pedestal come with a ground bar, or do I have to add one?
A ground bar is included as the equipment ground provision, so you can land your equipment grounding conductors and the grounding electrode conductor inside the unit without adding a kit. Whether the neutral stays bonded depends on how the utility classifies the pedestal on your job.
7) Will a standard 200A residential meter fit this ringless socket?
The U5138 is a 4 terminal ringless socket rated 200 continuous amperes, single phase, 60 Hz, up to 240 volts AC. That matches the common single phase self contained residential meter. Ringless means the cover lifts off rather than being held by a sealing ring, so the utility's ring type sealing hardware is not used here. Confirm with your utility which socket style they accept before setting the pedestal.
8) Can I bring a conduit riser into the top of this Milbank pedestal?
The top is a plain top, meaning there is no factory hub opening. It is built for underground cable entry, which is the normal arrangement for mobile home park and RV park distribution. If your service comes in overhead, you want a hub top socket rather than this plain top pedestal.
