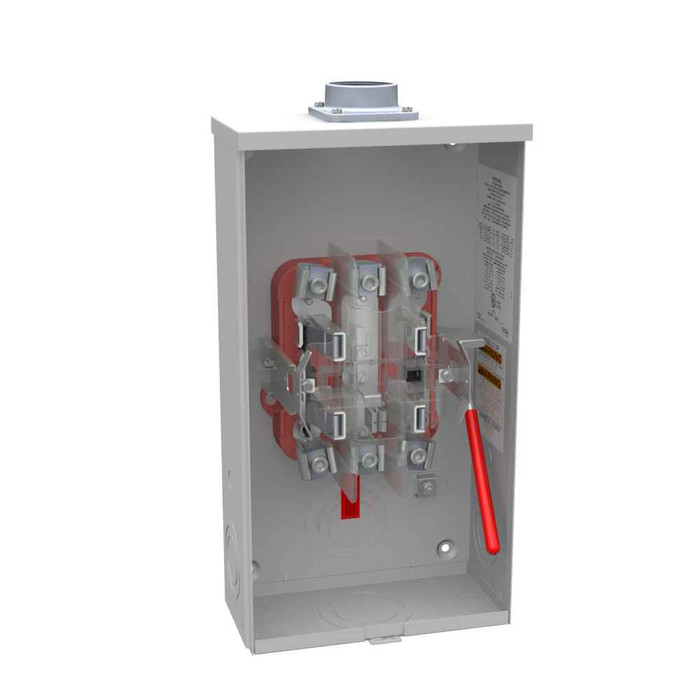

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass - 5 Terminal Surface Mount (2)

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass - 5 Terminal Surface Mount

Professional electrical metering solution with convenient bypass functionality

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass capability for service continuity. Constructed with G90 galvanized steel and powder coat finish, this UL Listed Type 3R enclosure provides durable performance for overhead cable entry applications. The 5 terminal configuration with lay-in terminals accommodates wire ranges from 6 AWG to 350 kcmil on both line and load sides.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
• Lever Bypass Configuration: Enables service continuity during meter maintenance or replacement without interrupting power to the load.
• G90 Galvanized Steel Construction: Provides superior corrosion resistance and long-term durability in outdoor installations.
• UL Listed Type 3R Enclosure: Meets stringent safety standards and offers protection against weather conditions for reliable outdoor performance.
• 5 Terminal Ringless Design: Simplifies installation with lay-in terminal configuration and eliminates the need for ring-type lugs.
• Flexible Wire Range: Accommodates conductors from 6 AWG to 350 kcmil on both line and load sides for versatile installation options.
• Glass Polyester Insulation: Provides excellent electrical insulation properties and thermal stability for safe operation.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead
• Departent: Electrical
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 5 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Height: 18.5 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Type: Ringless Meter Socket
• Special Features: Ameren Energy
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 10 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service installations requiring metering and bypass capability
• Light commercial facilities needing reliable electrical measurement and service continuity
• Multi-unit properties with individual metering requirements
• Retrofit applications where lever bypass functionality is essential
• Overhead service entrance installations in Type 3R rated environments
• Utility company approved installations meeting Ameren Energy specifications

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed construction and Type 3R environmental protection. The robust G90 galvanized steel with powder coat finish ensures long-term performance in demanding outdoor conditions, while the comprehensive 5 terminal design provides professional-grade electrical connections for dependable service.
