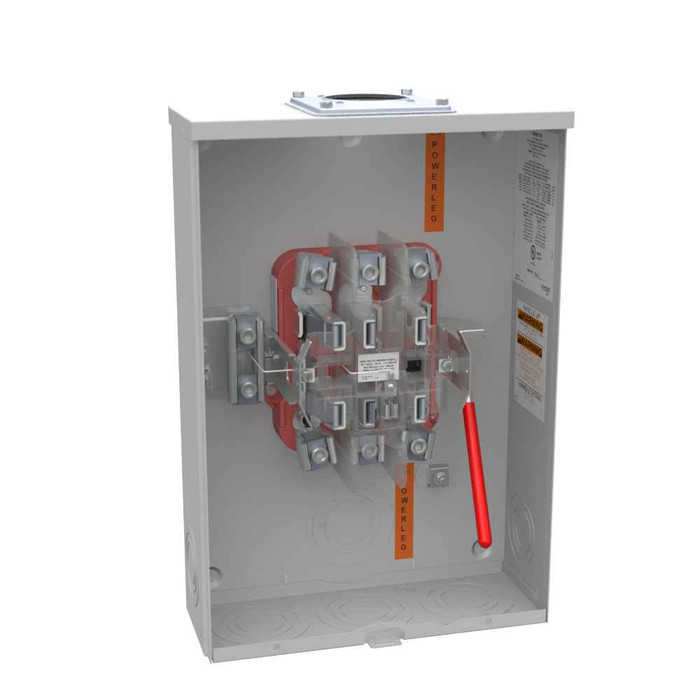

Milbank UAP9701 7 Terminal Ringless Meter Socket - Lever Bypass, Aluminum Painted

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass - 7 Terminal Surface Mount (2)

(No reviews yet) Write a Review

Model: UAP9701-X-QG-AEP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$973.84
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass - 7 Terminal Surface Mount

Professional electrical metering solution with integrated bypass capability

The Milbank 200A 3-Phase Ringless Meter Socket delivers reliable electrical metering for commercial and industrial applications. This surface-mount unit features durable aluminum construction with powder coat finish, 7-terminal configuration, and integrated lever bypass functionality for service flexibility. UL Listed with Type 3R rating for outdoor installations.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for commercial and light industrial applications with reliable current capacity.
  • 3-Phase Configuration: Supports three-phase electrical systems commonly used in commercial facilities and industrial equipment.
  • Lever Bypass Provision: Enables safe meter removal and service continuity during maintenance operations without power interruption.
  • 7-Terminal Design: Provides comprehensive connection points for complex metering configurations and utility requirements.
  • Type 3R Enclosure Rating: Weather-resistant construction suitable for outdoor installations with protection against rain and ice formation.
  • Aluminum with Powder Coat Finish: Corrosion-resistant material and finish ensure long-term durability in harsh environmental conditions.
  • UL Listed Certification: Meets rigorous safety standards for electrical equipment installation and operation.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: HD7T
  • Product Height: 19 IN
  • Product Length: 4.844 IN
  • Product Material: Aluminum with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 13W x19H
  • Product Type: Ringless Meter Socket
  • Special Features: American Electric Power
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Commercial Buildings and Office Complexes
  • Light Industrial Facilities
  • Multi-Unit Residential Properties
  • Retail and Service Establishments
  • Municipal and Government Buildings
  • Educational Institutions
  • Healthcare Facilities

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The aluminum construction with powder coat finish provides long-term durability, while the comprehensive wire range accommodation (6 AWG - 350 kcmil) ensures compatibility with various installation requirements.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
HD7T
Product Height:
19 IN
Product Length:
4.844 IN
Product Size:
4.844L x 13W x19H
Product Type:
Ringless Meter Socket
Special Features:
American Electric Power
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
Aluminum with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
3
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Number of Terminations:
7
Product Group:
Metering & Service Entrance

Milbank UAP9701-X-QG-AEP – Frequently Asked Questions

1) Will a 7-terminal meter socket work for my 3-phase 4-wire service?
The Milbank UAP9701 is a 7-jaw, 3-phase meter socket rated 200 continuous amps at 600VAC, 60Hz, with one meter position. Seven jaws is the standard arrangement utilities specify for 3-phase 4-wire self-contained metering. If your utility is metering a single-phase service, a 7-terminal socket is the wrong part, and if they require transformer-rated metering you need a CT cabinet and meter socket instead of a self-contained unit like this one.
2) Does this Milbank socket include a main breaker or disconnect?
No. The UAP9701 is a meter socket only, with no main breaker and no receptacles. You supply the service disconnect separately, either a panel with a main downstream or a separate fused disconnect, depending on what your AHJ and utility require for the service entrance.
3) What does the lever bypass actually get me on a commercial meter socket?
Lever bypass lets the utility or a qualified electrician pull the meter without dropping power to the load. On a tenant space, a clinic, or any facility where you cannot take an outage to swap or test a meter, that is the difference between a scheduled shutdown and a five minute job. Sockets without a bypass provision require the service to be de-energized. The UAP9701 carries the lever bypass built in.
4) Can the UAP9701 be mounted outdoors on a wall?
Yes. It is a surface mount enclosure with a Type 3R rating, UL Listed, built from aluminum with a powder coat finish, so it is intended for exterior wall mounting where it will see rain and ice. Type 3R does not cover hosedown or dust-tight service, so a washdown area or a heavy dust environment calls for a higher enclosure type.
5) Can I use this socket for an underground service lateral, or is it overhead only?
Either one. Cable entry is rated for overhead or underground, so the same socket works for a weatherhead drop or a lateral coming up from below. The hub arrangement is what you choose at order time: one option ships with a large hub opening that adapts down to a small hub for overhead conduit, while the closing plate options blank off the top for underground work.
6) Which UAP9701 version do I order if my utility is AEP?
Two of the configurations are specifically AEP approved: UAP9701-X-QG-AEP, with the large closing plate and quadplex ground, and UAP9701-X-QG-BLG-AEP, which adds the 7/8 inch barrel lock provision. If American Electric Power is the serving utility and they require a barrel lock on the socket, order the BLG-AEP version, since the barrel lock knockout and angle bracket are part of that configuration rather than something you add in the field.
7) How much wall space do I need for this Milbank meter socket?
Overall size is 4.844L x 13W x 19H inches. Plan the wall opening around the 13 by 19 inch face and allow for the 4.844 inch depth off the wall, plus bending room above or below for the service conductors depending on whether you are coming in overhead or underground.
8) What is the difference between the barrel lock version and the stainless hasp version?
It comes down to how your utility seals the cover. UAP9701-X-QG-BLG-AEP has a 7/8 inch knockout with an angle bracket for a utility barrel lock. UAP9701-X-QG-HSP instead has a stainless steel hasp, which takes a padlock or a wire seal. Both also carry the large closing plate and quadplex ground. Ask the serving utility which locking method they accept before you order, because swapping later means a new cover.
9) What does ringless mean on a meter socket, and does it change how the meter installs?
Ringless means there is no separate sealing ring clamping the meter to the socket. The cover itself holds the meter in place and is removed as a unit, which is what most utilities now specify because it is faster to seal and harder to tamper with. If your utility still requires a ring-type socket, the UAP9701 is not the right can. Check the utility's approved meter socket list, since ringless versus ring type is their call, not the installer's.
