Milbank 200A 7-Terminal Ringless Lever Bypass Meter Socket 600V 3-Phase Surface Mount

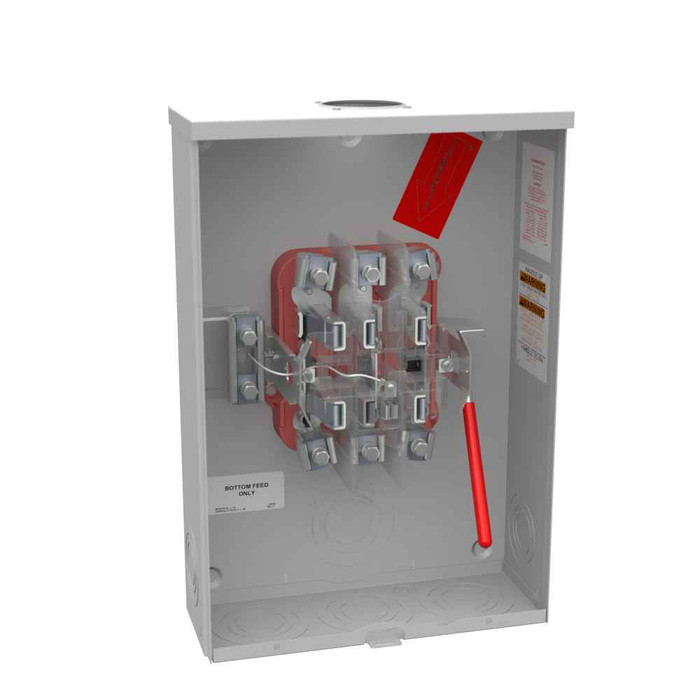

Milbank 200A 7-Terminal Ringless Lever Bypass Meter Socket

Professional 3-Phase Power Metering with Lever Bypass Capability

The Milbank 200A 7-Terminal Ringless Lever Bypass Meter Socket delivers reliable 3-phase power metering for commercial and industrial applications. Featuring robust G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface-mount meter socket provides 600V AC operation with versatile overhead or underground cable entry options and integrated lever bypass functionality for maintenance operations.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads for commercial and industrial power distribution systems.
• 7-Terminal Configuration: Provides comprehensive connection points for complex 3-phase metering applications with lay-in terminal design.
• Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption through integrated bypass capability.
• Type 3R Enclosure Rating: Weather-resistant construction suitable for outdoor installations with protection against rain and ice formation.
• G90 Galvanized Steel Construction: Durable material with powder coat finish ensures long-term corrosion resistance and structural integrity.
• 600V AC Operation: High voltage capability supports demanding commercial and industrial electrical systems.
• UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 7 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 3 Phase
• Product Family Code: HD7T
• Product Height: 19 IN
• Product Length: 4.844 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.844L x 13W x19H
• Product Type: Ringless Meter Socket
• Special Features: Public Service Electric and Gas New Jersey
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 13 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Power Metering
• Industrial Facility Electrical Distribution
• Multi-Tenant Properties
• Manufacturing Operations
• Retail and Office Buildings
• Municipal and Government Facilities
• Educational Institutions

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability through UL Listed certification and Type 3R weather-resistant construction. The robust G90 galvanized steel with powder coat finish ensures long-term durability, while the comprehensive 7-terminal configuration and lever bypass provision provide professional-grade functionality for demanding electrical metering applications.
