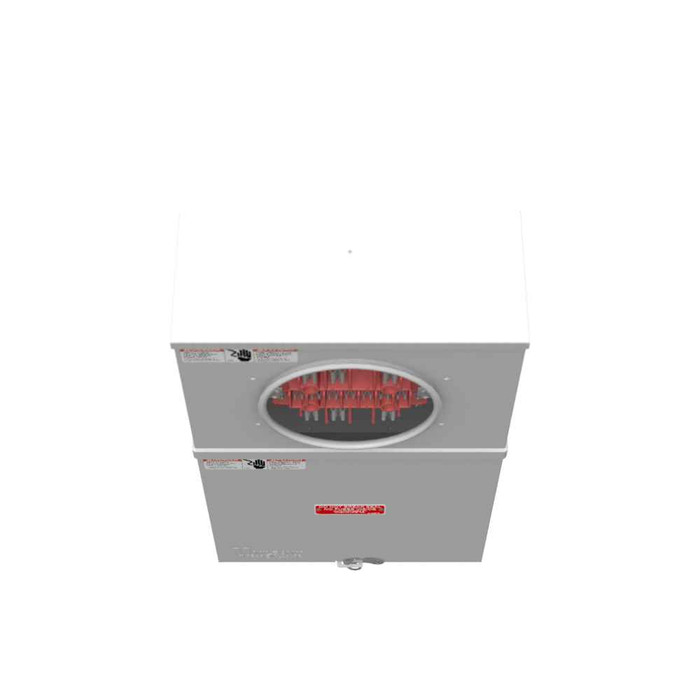

Milbank 13 Terminal Ring Type Meter Socket 3 Phase 600V 20A with Test Switch Provision (2)

Milbank 13 Terminal Ring Type Meter Socket 3 Phase 600V 20A with Test Switch Provision

Professional 3-Phase Metering Solution with Test Switch Capability

The Milbank 13 Terminal Ring Type Meter Socket delivers reliable 3-phase electrical metering for commercial and industrial applications. Engineered with 304 stainless steel construction and powder coat finish, this single-position meter socket provides 600V AC operation at 20 continuous amperes with integrated test switch provision for enhanced service flexibility.

Professional Features & Benefits

• 20 Continuous Ampere Rating: Provides reliable current handling capacity for consistent metering performance in demanding applications.
• 3 Phase 600V AC Operation: Supports high-voltage commercial and industrial electrical systems with professional-grade voltage handling.
• 304 Stainless Steel Construction: Delivers superior corrosion resistance and long-term durability in harsh environmental conditions.
• 13 Terminal Ring Type Design: Ensures secure electrical connections with professional-grade terminal configuration for reliable service.
• Test Switch Provision: Enables safe meter testing and maintenance procedures without service interruption.
• UL Listed Type 3R Rating: Meets stringent safety standards for outdoor installation with weather-resistant protection.
• Underground Cable Entry: Accommodates underground service connections for clean, professional installations.

Technical Specifications

• Amperage Rating: 20 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Glass Polyester
• Line Side Wire Range: 12 - 10 AWG
• Load Side Wire Range: 12 - 10 AWG
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 13 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 3 Phase
• Product Family Code: CT20
• Product Height: 20 IN
• Product Length: 5.125 IN
• Product Material: 304 Stainless Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 5.125L x 12W x20H
• Product Type: Ring Type Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Single Mechanical
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 12 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Electrical Metering
• Industrial Facility Power Monitoring
• Multi-Tenant Property Metering
• Manufacturing Plant Electrical Distribution
• Warehouse and Distribution Centers
• Professional Office Buildings
• Retail and Commercial Establishments

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed Type 3R certification and premium 304 stainless steel construction with powder coat finish. The robust design ensures long-term performance in demanding commercial and industrial environments, backed by professional-grade materials and manufacturing standards.
