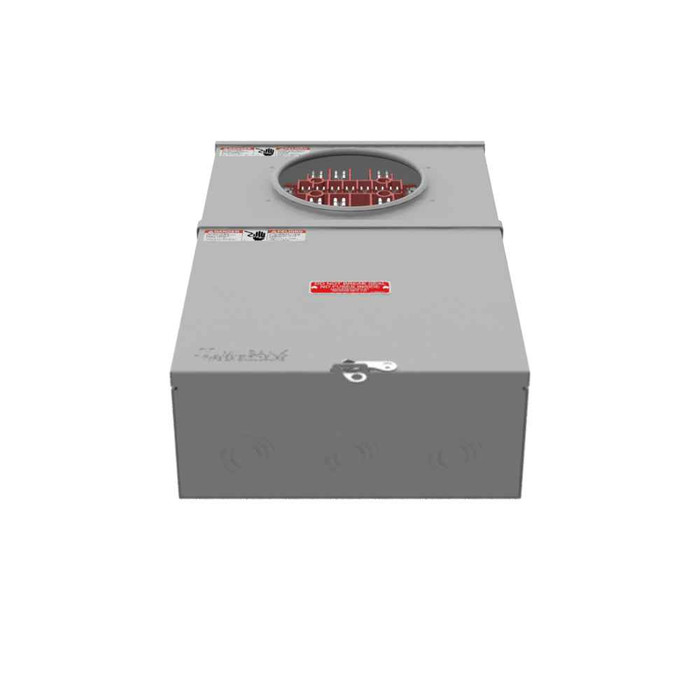

Milbank 6 Terminal Ring Type Meter Socket 20A 600V 1 Phase with Test Switch Provision

Milbank 6 Terminal Ring Type Meter Socket 20A 600V 1 Phase with Test Switch Provision

Professional electrical metering solution with stainless steel construction

The Milbank 6 Terminal Ring Type Meter Socket delivers reliable single-phase electrical metering with 20 continuous ampere capacity and 600V AC rating. Constructed from 304 stainless steel with powder coat finish and Type 3R enclosure rating, this UL Listed meter socket provides durable performance for underground cable entry applications with glass polyester insulation and ground lug equipment grounding.

Professional Features & Benefits

• 20 Continuous Ampere Rating: Provides adequate capacity for residential and light commercial single-phase electrical service applications.
• 600V AC Rating: Supports standard electrical service voltages with reliable performance and safety compliance.
• 304 Stainless Steel Construction: Delivers superior corrosion resistance and long-term durability in outdoor installations.
• Type 3R Enclosure Rating: Ensures protection against rain, sleet, and ice formation for reliable outdoor operation.
• UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.
• Test Switch Provision: Enables safe meter testing and maintenance procedures without service interruption.
• Underground Cable Entry: Designed specifically for underground electrical service connections with appropriate sealing.

Technical Specifications

• Amperage Rating: 20 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Glass Polyester
• Line Side Wire Range: 12 - 10 AWG
• Load Side Wire Range: 12 - 10 AWG
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 6 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: CT20
• Product Height: 20 IN
• Product Length: 5.125 IN
• Product Material: 304 Stainless Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 5.125L x 12W x20H
• Product Type: Ring Type Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Single Mechanical
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 12 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service metering
• Small commercial facility power monitoring
• Multi-unit residential properties
• Professional office buildings
• Retail establishments
• Light industrial facilities
• Underground electrical service installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R enclosure protection. The 304 stainless steel construction with powder coat finish ensures long-term durability and corrosion resistance for professional electrical installations requiring dependable metering performance.
