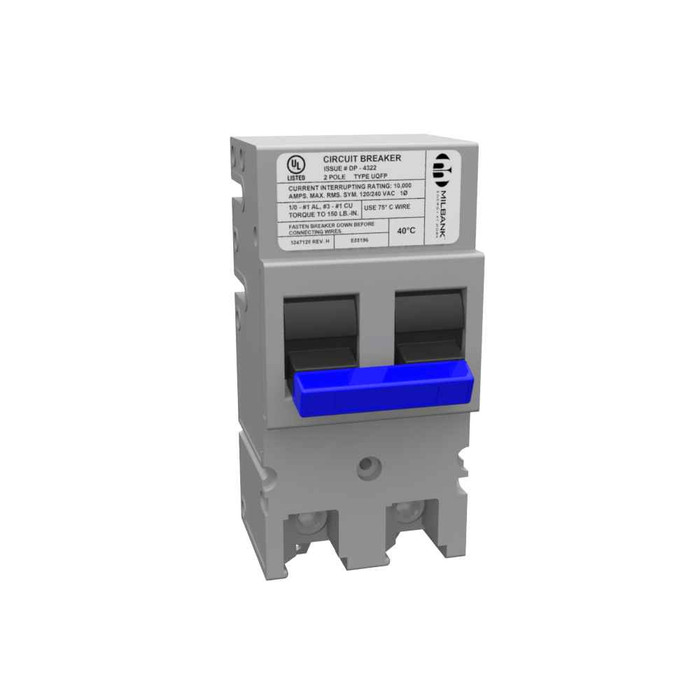

Milbank UQFP Plug-In 200 Amp Frame, 10,000 AIC and 22,000 AIC, Two-Pole ‑ Common Trip

Milbank UQFP Plug-In Circuit Breaker 200 Amp F-Frame 2-Pole Thermal Magnetic with 10,000/22,000 AIC Rating

(No reviews yet) Write a Review

Model: UQFPH-100
$941.43

In Stock (leaves warehouse same day if ordered before 3pm ET)

$941.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank UQFP Plug-In Circuit Breaker 200 Amp F-Frame 2-Pole Thermal Magnetic with 10,000/22,000 AIC Rating

Professional Current Interrupting Device for Metering Applications

The Milbank UQFP delivers reliable circuit protection with its 200 amp F-frame design and dual AIC ratings of 10,000 and 22,000. This two-pole thermal magnetic circuit breaker features plug-in installation with bus to lug connections, operating at 240 volts AC and 60 Hz for single-phase applications. Built with non-metallic construction and lever actuator operation, this UL Listed device provides professional-grade current interruption for metering accessory applications.

Professional Features & Benefits

  • 200 Amp F-Frame Design: Provides robust current handling capacity for demanding electrical applications with reliable thermal magnetic trip protection.
  • Dual AIC Ratings (10,000/22,000): Offers flexible installation options to match specific fault current requirements and system protection needs.
  • Two-Pole Common Trip Configuration: Ensures simultaneous disconnection of both poles for enhanced safety and complete circuit isolation.
  • Thermal Magnetic Trip Technology: Combines thermal overload and magnetic short-circuit protection for comprehensive current interruption performance.
  • Plug-In Installation: Simplifies mounting and connection with direct bus engagement for efficient installation and maintenance access.
  • UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations and code compliance.
  • Non-Metallic Construction: Provides durable housing with corrosion resistance and reliable long-term performance in various environments.

Technical Specifications

  • Actuator: Lever
  • Application: Metering Accessory
  • Auxiliary Contacts: No Auxiliary Contacts
  • Brand Name: Milbank
  • Connection: Bus to Lug
  • Departent: Electrical
  • Frame: F-Frame
  • Frequency Rating: 60 Hertz
  • Number Of Poles: 2
  • Operating Temperature: 40 Degrees Celsius
  • Phase: 1 Phase
  • Product Family Code: MSCB
  • Product Length: 3.281 IN
  • Product Material: Non Metallic
  • Product Type: Current Interrupting Device
  • Standard: UL Listed
  • Trip Type: Thermal Magnetic
  • Unspsc Number: 39121601
  • Voltage Rating: 240 Volts Alternating Current
  • Width: 3 IN

Professional Applications

  • Electrical Metering Systems and Accessory Protection
  • Commercial Building Electrical Distribution
  • Industrial Panel and Switchgear Applications
  • Utility Service Equipment Protection
  • Multi-Unit Residential Electrical Systems
  • Professional Electrical Contractor Installations
  • Code-Compliant Circuit Protection Solutions

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and professional-grade thermal magnetic protection technology. The non-metallic construction ensures long-term durability while the F-frame design provides robust performance for demanding electrical applications. Trust Milbank's commitment to quality circuit protection solutions for your professional installations.

Manufacturer Resources

Product Specs

Actuator:
Lever
Application:
Metering Accessory
Auxiliary Contacts:
No Auxiliary Contacts
Brand Name:
Milbank
Connection:
Bus to Lug
Frame:
F-Frame
Frequency Rating:
60 Hertz
Number Of Poles:
2
Operating Temperature:
40 Degrees Celsius
Phase:
1 Phase
Product Family Code:
MSCB
Product Length:
3.281 IN
Product Type:
Circuit Breaker
Standards:
UL Listed
Trip Type:
Thermal Magnetic
Unspsc Number:
39121601
Voltage Rating:
240 Volts Alternating Current
Product Material:
Non Metallic
Product Width:
3 IN
Department:
Electrical
Product Subgroup:
Circuit Breakers
Connection Type:
Bus To Lug
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Current Interrupting Device
Product Group:
Circuit Protection

Milbank UQFPH-100 – Frequently Asked Questions

1) Will a Milbank UQFP plug-in breaker work in my 120/240V single-phase meter socket?
The UQFP is rated 240 volts AC, 60 Hz, single phase, two-pole, so it suits a standard 120/240V single-phase service. It is a plug-in breaker with bus-to-lug connections, meaning it engages the socket bus on the line side and takes conductors on lugs at the load side. It is built for metering accessory use, not for a general-purpose load center.
2) What does the M in a Milbank UQFP-M breaker mean?
The M suffix is the threaded load-side tang. Ordering UQFP-M-200 instead of UQFP-200 gets you a breaker whose load-side tang is threaded, which is what you want when the enclosure or meter socket you are feeding uses a bolted tang connection rather than a plain one. Both 10K and 22K versions offer it: UQFP-M at 10K AIC, UQFPH-M at 22K. Confirm which the socket needs before ordering, because the tang style is not field-changeable.
3) Is the Milbank UQFP breaker UL Listed for a service disconnect installation?
UL Listed, and that is stated on the product record rather than implied. For an inspector on a metering or service equipment job that is usually the box that has to be ticked. The trip mechanism is thermal magnetic, combining thermal overload response with magnetic instantaneous short-circuit response.
4) Milbank UQFP vs UQFPH, what is the difference?
Interrupting capacity is the whole difference. UQFP is rated 10,000 AIC; UQFPH is rated 22,000 AIC. Both are 200 amp F-frame, two-pole, 240 volt, 60 Hz, single phase, thermal magnetic, plug-in with bus-to-lug connections, and both come in 100 through 200 amp trip ratings. Add M to either designation for the threaded load-side tang.
5) Is the 175 amp Milbank UQFP available with the threaded tang?
At 22,000 AIC, yes: UQFPH-M-175 is the 175 amp threaded-tang breaker. At 10,000 AIC the threaded-tang versions run 100, 125, 150 and 200 amps, so for a 175 amp trip with a threaded tang the UQFPH-M-175 is the part to order.
6) How much room does a Milbank UQFP breaker take up in the socket?
The UQFP measures 3.281 inches in length and 3 inches in width. Useful when you are checking clearance inside a meter socket or pedestal before committing, since the F-frame body is the same across all five amp ratings.
7) Does a two-pole Milbank UQFP trip both legs together?
Both poles trip together. It is a two-pole common trip breaker, so a fault on either leg opens both, and the 240V load is fully isolated rather than left single-legged. That is what you want on a 120/240V service disconnect, and it is why this is not the same thing as two independent single-pole breakers.
8) Can I get auxiliary contacts or a shunt on the Milbank UQFP?
No auxiliary contacts on the UQFP. It is a straight thermal magnetic breaker with a lever actuator for manual on/off, nothing for remote status or remote tripping. If the job needs a contact for a BMS or an alarm point, this is the wrong device and you need a breaker built with that accessory provision.
9) Will the Milbank UQFP breaker housing hold up in an outdoor meter socket?
The breaker body is non-metallic, so the housing itself will not corrode in a damp or coastal outdoor location. Weather protection for the installation still comes from the enclosure rating, not from the breaker.
