Milbank 100A 2-Pole 240V Plug-...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$587.34

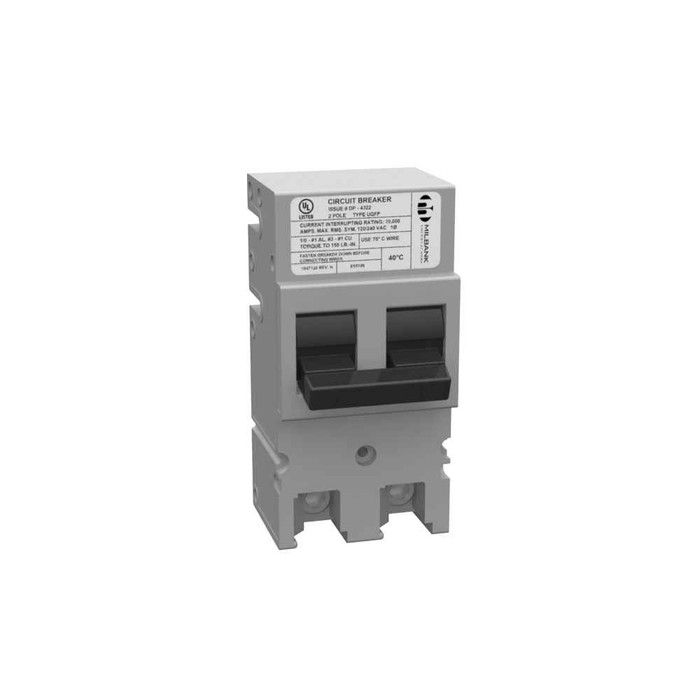

Milbank UQFP-RP 100 Ampere 2 Pole 240 Volt Plug-in 10K AIC Reverse Polarity

Milbank 100A 2-Pole 240V Plug-In Circuit Breaker with Reverse Polarity - 10kA AIC Thermal Magnetic

(No reviews yet) Write a Review

Model: UQFP-200-RP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$587.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 100A 2-Pole 240V Plug-In Circuit Breaker with Reverse Polarity - 10kA AIC Thermal Magnetic

Professional Circuit Protection with Reverse Polarity Configuration

The Milbank 100A 2-Pole 240V plug-in circuit breaker delivers reliable electrical protection with specialized reverse polarity configuration for metering accessory applications. This UL Listed thermal magnetic breaker features 10,000 ampere interrupting capacity, F-Frame construction, and non-metallic materials for dependable 1-phase 60Hz service at operating temperatures up to 40°C.

Professional Features & Benefits

  • 100 Ampere Rating: Provides robust current handling capacity for demanding electrical loads and applications.
  • 10,000 AIC Rating: Delivers high fault current interrupting capability for enhanced system protection and safety.
  • Reverse Polarity Design: Specialized configuration optimized for metering accessory applications requiring reversed connections.
  • Thermal Magnetic Trip: Combines thermal overload and magnetic short-circuit protection for comprehensive fault detection.
  • UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.
  • Plug-In Connection: Enables efficient bus-to-lug installation with secure electrical connections and easy serviceability.
  • F-Frame Construction: Compact 3.281" x 3" profile provides space-efficient mounting in electrical panels and enclosures.

Technical Specifications

  • Actuator: Lever
  • Application: Metering Accessory
  • Auxiliary Contacts: No Auxiliary Contacts
  • Brand Name: Milbank
  • Connection: Bus to Lug
  • Departent: Electrical
  • Frame: F-Frame
  • Frequency Rating: 60 Hertz
  • Interrupt Rating: 10,000 Ampere Interrupting Capacity
  • Number Of Poles: 2
  • Operating Temperature: 40 Degrees Celsius
  • Phase: 1 Phase
  • Product Family Code: MSCB
  • Product Length: 3.281 IN
  • Product Material: Non Metallic
  • Product Type: Current Interrupting Device
  • Special Features: Reverse Polarity
  • Standard: UL Listed
  • Trip Type: Thermal Magnetic
  • Unspsc Number: 39121601
  • Voltage Rating: 240 Volts Alternating Current
  • Width: 3 IN

Professional Applications

  • Electrical Metering Systems
  • Commercial Panel Boards
  • Industrial Control Panels
  • Utility Service Equipment
  • Electrical Distribution Systems
  • Professional Electrical Installations

Why Choose Milbank Quality?

Milbank circuit breakers deliver proven reliability with UL Listed certification and robust thermal magnetic protection technology. The non-metallic construction and F-Frame design ensure long-term durability in demanding electrical environments, while the specialized reverse polarity configuration provides the precise functionality required for professional metering accessory applications.

Manufacturer Resources

Product Specs

Actuator:
Lever
Application:
Metering Accessory
Auxiliary Contacts:
No Auxiliary Contacts
Brand Name:
Milbank
Connection:
Bus to Lug
Frame:
F-Frame
Frequency Rating:
60 Hertz
Interrupt Rating:
10,000 Ampere Interrupting Capacity
Number Of Poles:
2
Operating Temperature:
40 Degrees Celsius
Phase:
1 Phase
Product Family Code:
MSCB
Product Length:
3.281 IN
Product Type:
Current Interrupting Device
Special Features:
Reverse Polarity
Standards:
UL Listed
Trip Type:
Thermal Magnetic
Unspsc Number:
39121601
Voltage Rating:
240 Volts Alternating Current
Product Material:
Non Metallic
Product Width:
3 IN
Department:
Electrical
Product Subgroup:
Electrical
Connection Type:
Bus To Lug
Number of Phases:
1
Product Details:
Current Interrupting Device
Frequency:
60 hertz

Milbank UQFP-200-RP – Frequently Asked Questions

1) What does reverse polarity mean on a Milbank UQFP-RP breaker, and when do I need it?
Reverse polarity means the breaker is built to be fed from the lug end and connect out through the plug-in bus, the opposite of a standard plug-in breaker. Milbank calls it out as a special feature on the UQFP-RP and lists the connection as bus to lug. It's intended for metering accessory applications, where the utility feed lands on the lugs and the bus carries the load side. If your meter socket or panel is wired conventionally, order a standard-polarity breaker instead, not this one.
2) Is 10,000 AIC enough for my service, or do I need a higher interrupting rating?
The UQFP-RP is rated 10,000 ampere interrupting capacity. That covers most residential and light commercial 240V single-phase services where the utility available fault current at the equipment is at or below 10 kA. If the utility's available fault current letter for your site comes back above 10 kA, this breaker is not the right device for that location and you need a higher AIC unit. Get the number from the utility before you set the can.
3) Will this Milbank breaker work on a 208Y/120 three-phase system?
No. The UQFP-RP is a 2-pole device rated 240 volts AC, single phase, 60 Hz. It can be applied across two legs of a single-phase 240V system only. For three-phase distribution you need a 3-pole breaker rated for that system.
4) How much space does the UQFP-RP take up in the enclosure?
It's an F-Frame breaker measuring 3.281 inches by 3 inches. Lay that against the mounting area in your meter socket or pedestal before ordering, and remember the lever actuator needs clearance to throw plus room for the lug-side conductors.
5) Can I use this breaker in an outdoor meter pedestal in a hot climate?
Milbank rates the UQFP-RP for operation to 40 degrees Celsius (104 F) ambient. That's the air temperature inside the enclosure, not the shade temperature outside it. A sun-loaded metal can in desert heat can run well above ambient, so on those installs either derate the load, shade or ventilate the enclosure, or pick a device rated higher.
6) Does this breaker have auxiliary or alarm contacts for remote monitoring?
No. The UQFP-RP ships with no auxiliary contacts and no provision listed for them, so there's no dry contact to signal trip status back to a BMS or alarm panel. If your spec calls for remote trip indication, this isn't the device.
7) Is the Milbank UQFP-RP UL Listed for inspection sign-off?
Yes, it's UL Listed. For a plan submittal the UQFP-RP also carries UNSPSC 39121601 and falls under Milbank's MSCB circuit breaker family, which is what most procurement systems want on the line item alongside the MPN.
8) How does this plug-in breaker mount and land conductors?
It plugs onto the bus on one side and terminates to lugs on the other, so no separate mounting hardware or backpan bolts are needed beyond seating it on the bus stabs. Operation is by a lever actuator. Because the connection is bus to lug in the reverse polarity arrangement, confirm which side your incoming feeder needs to land on before you cut conductors to length.
9) Is the Milbank UQFP-RP thermal magnetic or electronic trip?
Thermal magnetic. The thermal element handles sustained overloads with an inverse time delay, and the magnetic element trips instantly on a short circuit. There's no adjustable electronic trip unit, so the trip curve is fixed by the amp rating you order (100, 125, 150 or 200).
10) Is the breaker housing metal or plastic?
Non-metallic. The UQFP-RP body is molded case rather than metal, which is standard for a plug-in branch device and keeps the case itself from being an energized or grounded surface inside the can.
