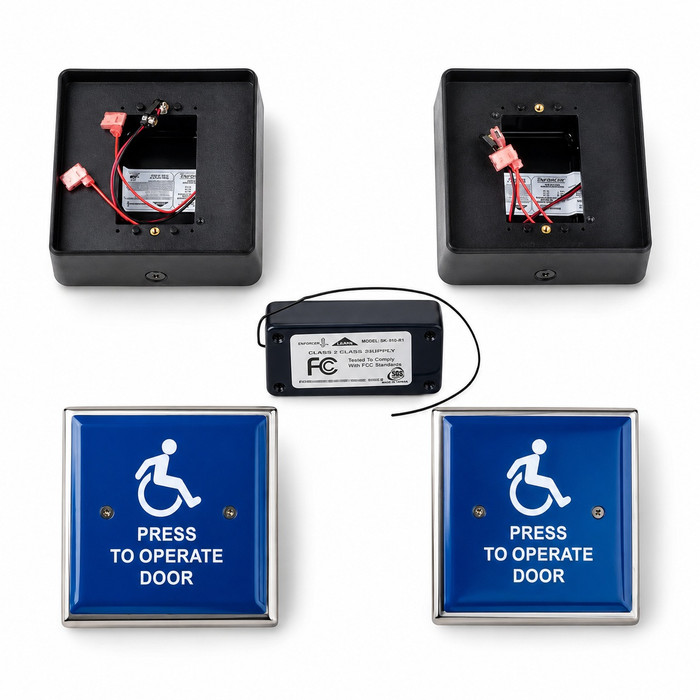

MS Sedco ClearPath CTP-H Turnkey Wireless Kit - complete kit flat-lay showing two square black radio receiver housings with wiring, central FCC-certified wireless receiver module, and two blue square ADA 'Press to Operate Door' push plates

MS Sedco CTP ClearPath Turnkey Wireless Radio Control Kit for Low Energy ADA Door Activation

(No reviews yet) Write a Review

Model: CTP-H

In Stock (leaves warehouse same day if ordered before 3pm ET)

$370.00
$276.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

MS Sedco CTP ClearPath Turnkey Wireless Radio Control Kit for Low Energy ADA Door Activation

The MS Sedco ClearPath™ CTP Turnkey Wireless Radio Control Kit delivers a complete, out-of-the-box solution for automating low-energy door openings in ADA-compliant applications. Designed for both single openings and vestibule configurations, each kit ships with all required components pre-matched for seamless wireless handicap door button activation—including push plate switches, CP/TX wireless transmitters preinstalled in surface-mount boxes, and a CP/RX wireless receiver. Available in popular configurations such as the CTP-H (4-1/2" square switches) and CTP-J-H (jamb-width switches), these kits are engineered for quick installation and long-term reliability in commercial environments.

Key Features

  • Complete Turnkey Package: Each single-opening kit includes two push plate switches, two CP/TX wireless transmitters (preinstalled in surface-mount boxes), and one CP/RX wireless receiver—everything needed for a fully operational wireless door activation system.
  • Flexible Switch Styles: Available in 4-1/2" square, 6" round, or jamb-width push plate switch formats to suit a variety of door frame and wall configurations.
  • Vestibule-Ready Configurations: Kits are designed to cover both single openings and vestibule applications, providing scalable wireless handicap door button solutions for diverse facility layouts.
  • Popular Pre-Configured Models: Model CTP-H includes two 59-H switches, two CP/TX transmitters, and one CP/RX receiver with 4-1/2" square plates; Model CTP-J-H includes the same electronics with jamb-width switches for narrow-profile installations.
  • Multiple Finish Options: Choose from -H (Blue Handicap Symbol), -HSS (Stainless Steel Faceplates), or -P (Plain) suffix options to match facility aesthetics and signage requirements.
  • Wireless Radio Control Technology: Part of the MS Sedco 300/390/HDRC Radio Control Series, providing reliable wireless signal transmission for low-energy door operators without the need for control wiring between switches and receiver.
  • Retrofit and New Construction Compatible: Preconfigured packaging ensures component compatibility and saves installation time, making ClearPath™ kits suitable for both retrofit upgrades and new construction projects.
  • Commercial-Grade Electronic Access Control: Engineered for commercial applications requiring dependable, code-compliant door activation.

Certifications & Compliance

  • FCC Certified
  • Designed for ADA-compliant low-energy door operator applications
  • Suitable for commercial electronic access control installations

Technical Specifications

  • System: Complete turnkey kit — CP/TX transmitter paired with CP/RX receiver
  • Operating Frequency: User-selectable 300MHz, 390MHz, or HDRC (filtered 390MHz)
  • Relay Output (Receiver): NO/CC/COM, rated 3A
  • Input Power: Transmitter: 9V alkaline battery; Receiver: 12–24V AC/DC

Typical Applications

  • Commercial Office Building Accessible Entrances
  • Healthcare Facility ADA-Compliant Door Automation
  • Educational Institution Accessible Entry Systems
  • Retail Establishment Handicap Door Activation
  • Government and Municipal Building ADA Upgrades
  • Multi-Tenant Residential Property Common Area Access
  • Vestibule and Double-Door Entry Wireless Control Systems

Why MS Sedco ClearPath?

MS Sedco ClearPath™ kits are engineered as a complete, pre-matched wireless radio control solution within the trusted 300/390/HDRC Radio Control Series, eliminating compatibility guesswork and reducing installation complexity. With component sets covering switches, transmitters, and receivers in a single shipment, these commercial-grade kits deliver the reliability and ADA-compliant performance that demanding facility applications require.

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Radio Control
Subcategory:
Radio Control
Commercial/Residential:
Commercial
Electronic:
Yes
Series:
300/390/HDRC Radio Control
Tags:
wireless handicap door button
Package:
No
Product Model:
CTP
Product Category:
Electronic Access Controls
Department:
Door Hardware

MS Sedco CTP-H – Frequently Asked Questions

1) What comes in the MS Sedco ClearPath CTP kit for a single door opening?
Each single-opening ClearPath CTP kit ships with two push plate switches, two CP/TX wireless transmitters already installed in surface-mount boxes, and one CP/RX receiver. That covers both sides of one opening, interior and exterior. The transmitters and receiver are pre-matched, so there's no pairing or component-matching work on site. What the kit does not include is the low energy operator itself, so the CTP is the activation side of the job, not the whole automatic door.
2) Do I have to run wire between the push plates and the door operator with the ClearPath CTP kit?
No wire between the switches and the receiver. The CP/TX transmitters send to the CP/RX receiver over radio, which is the whole point of the ClearPath kit on a retrofit where you'd otherwise be cutting a wall or fishing a jamb. You still wire the receiver: it needs 12 to 24V AC/DC input power, and its NO/CC/COM relay output, rated 3A, lands on the operator's activation input. The transmitters run on a 9V alkaline battery each, so no power at the plate.
3) Will an MS Sedco CTP push plate fit on a narrow door jamb?
That's the CTP-J-H. It uses jamb-width switches, a narrow vertical plate meant for the frame face where a square plate won't land. The other build is the CTP-H with 4-1/2 inch square plates, which needs flat wall or a wide stile. Both use the same CP/TX transmitters and CP/RX receiver, so the only decision is the plate footprint your mounting surface will take. Switch plates are also offered in a 6 inch round format.
4) Will the ClearPath CTP receiver relay work with my existing low energy door operator?
The CP/RX receiver puts out a dry relay: NO/CC/COM contacts rated 3A. Any low energy operator that takes a dry contact closure on its activation input will accept it, which is the standard actuator input on that class of operator. Feed the receiver 12 to 24V AC/DC, which most operators can supply from their accessory terminals. If your operator only accepts a wired 24V actuator signal rather than a dry contact, this is not the right activation.
5) Which radio frequency does the MS Sedco ClearPath CTP kit run on, and can I change it?
Frequency is user-selectable at 300MHz, 390MHz, or HDRC, which is a filtered 390MHz. HDRC is the one to pick where a building already has 390MHz traffic and you're worried about a neighbouring system triggering the door. Because you set it in the field, one kit covers all three, and you're not ordering a frequency-specific part number.
6) Can I use one MS Sedco ClearPath CTP kit for a vestibule with two sets of doors?
The CTP kits are built to cover single openings and vestibule configurations. One single-opening kit gives you two switches, two transmitters and one receiver, which is one opening's worth of activation. A vestibule with two separate operators needs coverage for each opening, so count the kit by opening rather than by entrance. The advantage in a vestibule is that the interior plate between the two doors doesn't need wire run back to either operator.
7) What is the difference between the -H, -HSS and -P suffixes on an MS Sedco CTP kit?
Those are the face plate choices. -H is the blue plate with the handicap symbol, the one most facilities want on an accessible entrance so the plate reads as an actuator on sight. -HSS is a stainless steel faceplate, usually the choice where the finish has to match other stainless hardware or signage is handled separately. -P is plain, no symbol. The electronics are identical across all three; you're only choosing what the user sees.
8) Can I use the MS Sedco CTP wireless kit on an existing automatic door, or is it new construction only?
Both. The kit is packaged for retrofit upgrades as well as new construction, and retrofit is where the wireless piece pays: the transmitters come preinstalled in surface-mount boxes, so the plates go on the wall surface rather than into a cut-in back box, and nothing runs back to the operator. On new work you get the same time saving without pulling actuator wire.
9) Do the ClearPath push plates need power or batteries at the switch?
Each CP/TX transmitter runs on a 9V alkaline battery, so there is nothing to power at the plate location. That is what lets a plate go on a glass surround, a freestanding bollard location, or a jamb with no conduit. Plan on battery replacement as part of the maintenance route for the opening. The receiver is the only part that needs a power feed, at 12 to 24V AC/DC.
10) Is the MS Sedco ClearPath CTP kit approved for use as a wireless transmitter in a commercial building?
The ClearPath CTP system is FCC certified, which is the certification that governs the radio side of a wireless actuator. It's built for commercial installations, and the intended application is low energy ADA door operator activation in places like healthcare, education, government and multi-tenant common areas.
11) What switch model is in the MS Sedco CTP-H kit?
The CTP-H uses two 59-H switches on 4-1/2 inch square plates, paired with two CP/TX transmitters and one CP/RX receiver. The CTP-J-H carries the same transmitters and receiver behind jamb-width switches instead. If you're standardizing a building and want every opening to look the same, the switch model plus the face plate suffix is what you match, not the kit code alone.
