MS Sedco CP/TX-J ClearPath Radio Control Jamb Mount Transmitter with HDRC, 300 MHz & 390 MHz and 5 Programming Modes

MS Sedco CP/TX-J ClearPath Radio Control Jamb Mount Transmitter — HDRC™, 300 MHz & 390 MHz Tri-Frequency Wireless Activation

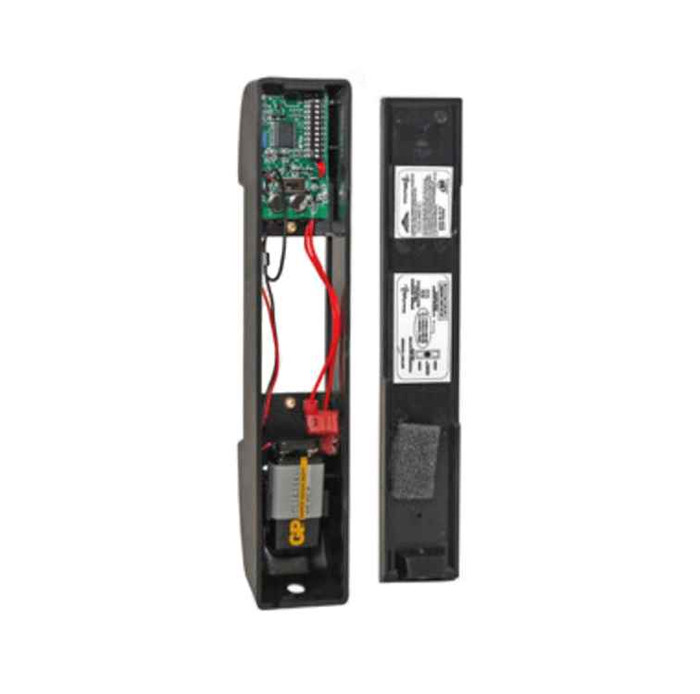

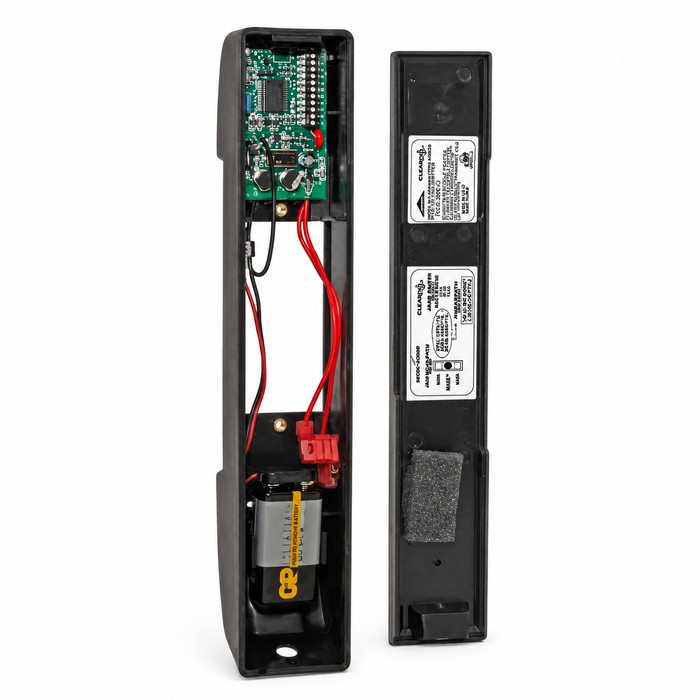

The MS Sedco CP/TX-J is a ClearPath™ Radio Control Jamb Mount Transmitter engineered for the most reliable wireless activation of automatic doors available. This transmitter ships complete with the CP/TX-J unit, a wire harness, and a 9V battery pre-installed in the 1010 Jamb Surface Mounting Box — ready for immediate deployment. It features three selectable frequencies — MS Sedco's proprietary High Definition Radio Control™ (HDRC™), 300 MHz, and 390 MHz — housed in a compact 4"L x 2"W x 1"H form factor, making it ideal for commercial automatic door applications where interference-free performance is critical.

Key Features

• Tri-Frequency Selectable Operation: Includes HDRC™, 300 MHz, and 390 MHz frequencies selectable via a simple slide switch, allowing seamless interchangeability with all past MS Sedco products and many other manufacturers' devices operating at these frequencies.
• High Definition Radio Control™ (HDRC™) Technology: MS Sedco's latest breakthrough in RF signal transmission uses sophisticated componentry to transmit a fixed frequency signal that resists distortion from outside interference, passed through a proprietary electronic "filter" in the receiver to ensure reliable door activation.
• 5 Programming Modes: Mode 1 (standard receiver), Mode 2 (receiver with adjustable time delay: 5, 10, 15, or 20 seconds), Mode 3 (dual channel receiver — requires CP/RXM module), Mode 4 (receiver with sequenced outputs — requires CP/RXM module), and Mode 5 (receiver with ratchet relay — requires CP/RXR module).
• Complete Jamb Mount Package: Ships as a fully assembled unit with transmitter, wire harness, and 9V battery installed in the 1010 Jamb Surface Mounting Box — no additional components required for standard installation.
• Compact Form Factor: Measures 4"L x 2"W x 1"H, enabling discreet jamb-surface mounting without compromising door frame aesthetics or clearances.
• Shared PCB Platform: ClearPath™ transmitters share the same printed circuit board (PCB), come prewired, and are installed with a battery in a mounting box for consistent, reliable performance across the product line.
• FCC Licensed & Interference-Resistant: FCC licensed and guaranteed to work where other RF systems fail, solving problems caused by interference and stray signals in demanding commercial environments.
• Compatible Accessories: Modes 3 and 4 require the CP/RXM module (plugs directly onto the CP/RX main circuit board for a second output); Mode 5 requires the CP/RXR module (plugs directly onto the CP/RX main circuit board for ratchet relay functionality).

Certifications & Compliance

• FCC Licensed
• Commercial Grade

Technical Specifications

• Operating Frequency: User-selectable 300MHz, 390MHz or HDRC (filtered 390MHz)
• Input Power: 9V alkaline battery
• Mounting: Jamb mount with MS Sedco #1010 surface box
• Certification: FCC
• Housing: Blue ABS plastic

Typical Applications

• Commercial Office Building Automatic Door Systems
• Healthcare Facility Hands-Free Door Activation
• Educational Institution Accessible Entry Points
• Retail Establishment Automatic Entrance Doors
• Industrial and Warehouse Facility Access Control
• Government and Municipal Building Automatic Doors
• Multi-Tenant Residential Property Common Area Entries

Why MS Sedco ClearPath CP/TX-J?

MS Sedco ClearPath™ transmitters are built on a proprietary HDRC™ platform that transmits a fixed frequency signal through an electronic filter, eliminating the interference and stray signal issues that plague conventional RF systems. With three selectable frequencies, five programming modes, and a complete pre-wired jamb mount package including a 9V battery and 1010 Jamb Surface Mounting Box, the CP/TX-J delivers professional-grade reliability engineered specifically for demanding commercial automatic door environments.
