MS Sedco CP/STX ClearPath Vestibule Sequencing Wall Mount Transmitter with HDRC, 300 MHz & 390 MHz

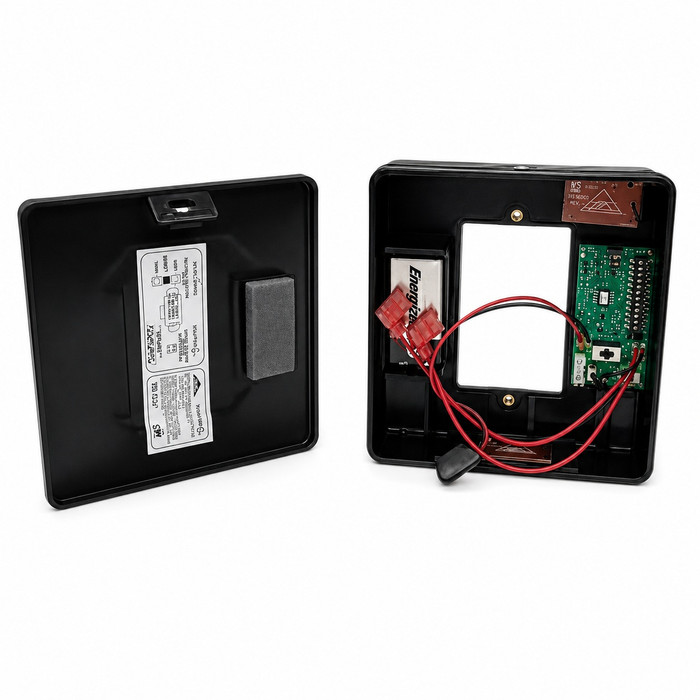

The MS Sedco CP/STX is a wall mount sequencing transmitter from the ClearPath' Radio Control Door Activation System, engineered to deliver the most reliable wireless activation of automatic vestibule doors available. The CP/STX is capable of transmitting two separate signals with an adjustable time delay between them, sequencing vestibule doors one after the other from either direction. It features three selectable frequencies in a single device — HDRC' (High Definition Radio Control'), 300 MHz, and 390 MHz — and comes prewired and installed with a 9V battery in a 1020 mounting box with wire harness included.

Key Features

  • Vestibule Sequencing Capability: Transmits two separate signals with an adjustable time delay between them to sequence vestibule doors one after the other from either direction, enabling smooth and controlled entry flow.
  • Three Selectable Frequencies: Integrates HDRC', 300 MHz, and 390 MHz in a single device, allowing a simple slide of a switch to select the optimal frequency for any installation environment.
  • HDRC' Technology: High Definition Radio Control' transmits a fixed frequency signal that will not distort due to outside interference, passed through a proprietary electronic filter in the receiver to guarantee door activation.
  • SignalLock': Guarantees that a radio signal is transmitted every time the switch is activated, eliminating missed activations in demanding commercial environments.
  • Signal Enhancing Antenna: Boosts the radiating strength of the transmitter signal to ensure long-distance door activation reliability.
  • Extended Battery Life: Power-saving circuitry design lowers battery drain by 50%, effectively doubling battery life for reduced maintenance requirements.
  • Broad Compatibility: FCC licensed and compatible with previous MS Sedco devices as well as products from many other manufacturers operating at 300 MHz and 390 MHz frequencies.
  • Ready-to-Install Package: Comes prewired and installed with a 9V battery in a 1020 mounting box, complete with wire harness for straightforward installation.

Certifications & Compliance

  • FCC Licensed
  • Commercial Grade

Technical Specifications

  • Operating Frequency: User-selectable 300MHz, 390MHz or HDRC (filtered 390MHz)
  • Function: Two-output sequencing transmitter with adjustable delay between activations
  • Input Power: 9V alkaline battery
  • Mounting: Wall mount with MS Sedco #1020 surface box
  • Certification: FCC
  • Housing: Blue ABS plastic

Typical Applications

  • Commercial Building Vestibule Entrances
  • Healthcare Facility Automatic Door Systems
  • Educational Institution Entry Control
  • Retail and Hospitality Automatic Door Activation
  • Government and Municipal Building Access
  • Industrial Facility Hands-Free Door Control
  • Multi-Tenant Residential Lobby Systems

Why MS Sedco CP/STX?

MS Sedco ClearPath' transmitters are engineered with proprietary HDRC' technology that eliminates interference-related failures — guaranteed to work where conventional RF systems won't. The CP/STX shares the same printed circuit board (PCB) platform across the ClearPath' line, ensuring consistent quality and interoperability, while its power-saving circuitry and signal-enhancing antenna deliver dependable, long-range performance in the most demanding commercial door activation applications.

Product Specs

Product Group:
Electronic Access Controls
Series:
300/390/HDRC Radio Control
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Sequencing Transmitters
Subcategory:
Radio Control
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Function:
Vestibule
Product Model:
CP/STX
Product Function:
Vestibule
Product Category:
Electronic Access Controls
Department:
Door Hardware

MS Sedco CP/STX – Frequently Asked Questions

1) What does a sequencing transmitter like the MS Sedco CP/STX do that a standard wall switch transmitter doesn't?
A vestibule has two sets of automatic doors, and opening both at once defeats the air lock. The CP/STX sends two separate signals with an adjustable time delay between them, so the outer door opens, then the inner one follows a moment later. It sequences from either direction, so the same unit handles traffic coming in and going out. A single-output transmitter fires one signal to one receiver and cannot stage a vestibule pair.
2) What frequency does the MS Sedco CP/STX transmit on, and can I match it to receivers already in the building?
Three frequencies are built into the one unit and selected by sliding a switch: 300 MHz, 390 MHz, and HDRC, which is a filtered 390 MHz signal. That means you set it to whatever the existing receivers run on rather than buying a frequency-specific part. MS Sedco states the CP/STX is compatible with previous MS Sedco devices and with products from many other manufacturers operating at 300 MHz and 390 MHz.
3) Does the MS Sedco CP/STX need to be hardwired, and what mounting box does it take?
No line voltage and no wiring back to a panel. The CP/STX runs on a 9V alkaline battery and ships prewired with the battery already installed in an MS Sedco #1020 surface mounting box, wire harness included. It is a surface wall mount, so it goes on the finished wall without cutting in a recessed box. Power-saving circuitry cuts battery drain by 50 percent, which roughly doubles the interval between battery changes.
4) Will the MS Sedco CP/STX work with my existing automatic door operator receiver?
If the receiver on the operator is an MS Sedco unit, or any other manufacturer's receiver running 300 MHz or 390 MHz, the CP/STX is stated to be compatible; set the slide switch to match. The one case that needs care is HDRC. That mode is filtered at the receiver, so a non-HDRC receiver will not respond to it. On mixed sites, run the transmitter at 300 or 390 MHz. Also note the CP/STX is a two-output sequencing device, so getting both doors staged means a receiver on each door.
5) What is HDRC on MS Sedco ClearPath transmitters and when should I use it instead of plain 390 MHz?
HDRC (High Definition Radio Control) is a fixed frequency signal that will not distort from outside interference, and the matching receiver runs it through a proprietary electronic filter before it will accept an activation. Use it on a site where RF traffic is dense or where you have had phantom or missed activations. Plain 300 MHz or 390 MHz is the setting to use when the receiver already in the door operator is a conventional unit that has no HDRC filter.
6) Is the MS Sedco CP/STX FCC licensed for commercial installation?
FCC licensed, and built as commercial grade equipment. It is used on building vestibule entrances, healthcare automatic door systems, schools, retail and hospitality entries, government buildings, industrial hands-free door control, and multi-tenant residential lobbies.
7) How do I keep the CP/STX from missing activations in a busy entrance?
That is what SignalLock is for. It guarantees a radio signal goes out every time the switch is pressed, so a fast or partial press in heavy traffic still transmits. Range is backed by a signal enhancing antenna that boosts the radiating strength of the transmitted signal for long-distance activation. If interference rather than range is the problem, switch the unit to HDRC.
8) Do I need one CP/STX for each side of the vestibule?
One CP/STX handles a full sequence from one approach, because it fires both signals itself with the delay between them. It sequences from either direction, so the outbound path is covered by the same logic. In practice you place a transmitter where each approach needs an actuator, but you are not buying a separate transmitter per door leaf, one unit drives the two-door sequence.
9) What does the CP/STX housing look like and will it match the other push plates in my lobby?
The housing is blue ABS plastic on a surface mounted #1020 box. There is one model, CP/STX, with no finish or color options, so it will not be finish-matched to stainless or bronze plates elsewhere in the lobby. Property managers standardizing the look of an entrance should plan on it reading as a blue plastic transmitter.
