MS Sedco MS Sedco CP/TX-R ClearPath Radio Control Round Wall Mount Transmitter MSS-CP/TX-R

MS Sedco CP/TX-R ClearPath Radio Control Round Wall Mount Transmitter with HDRC, 300 MHz & 390 MHz Tri-Frequency

(No reviews yet) Write a Review

Model: CP/TX-R4

In Stock (leaves warehouse same day if ordered before 3pm ET)

$98.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

MS Sedco CP/TX-R ClearPath Radio Control Round Wall Mount Transmitter with HDRC, 300 MHz & 390 MHz Tri-Frequency

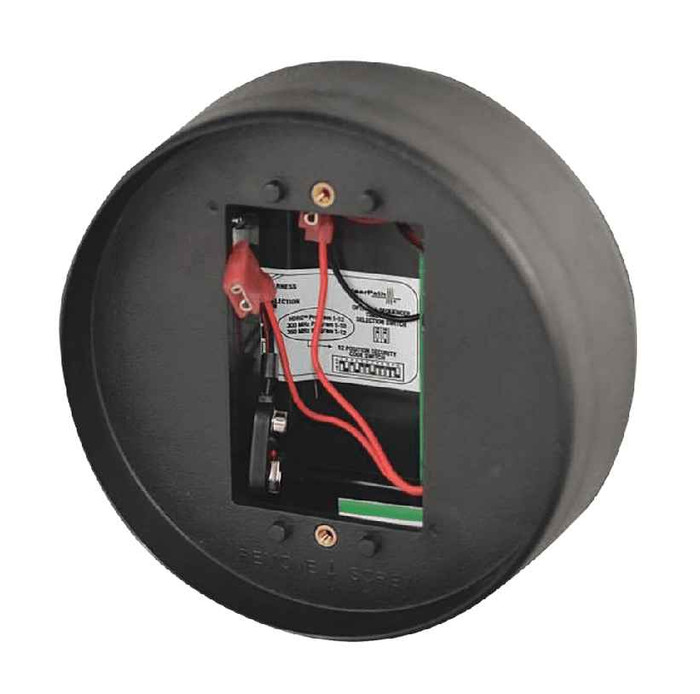

The MS Sedco ClearPath' CP/TX-R is a 4" round wall mount transmitter engineered to deliver the most reliable wireless activation of automatic doors on the market. Featuring three selectable frequencies — HDRC', 300 MHz, and 390 MHz — this transmitter ensures versatile compatibility across applications and unmatched signal integrity. Supplied prewired and preassembled with a pre-installed 9V battery, wire harness, integrated signal-enhancing antennas, and a surface mounting box, the CP/TX-R is ready for plug-and-play installation in commercial door activation systems.

Key Features

  • Tri-Frequency Operation: Three selectable frequencies — HDRC', 300 MHz, and 390 MHz — provide versatile compatibility with ClearPath' systems, legacy MS Sedco products, and many third-party manufacturer systems.
  • High Definition Radio Control' (HDRC'): Eliminates distortion from RF interference, ensuring reliable door activation even in the harshest RF environments where other transmitters may fail.
  • Compact 4" Round Form Factor: Wall mount design in a compact 4" round profile; compact 4" and 6" versions are available to suit various installation requirements.
  • Plug-and-Play Installation: Prewired and preassembled with integrated signal-enhancing antennas, pre-installed 9V battery, wire harness, and surface mounting box included for fast, straightforward setup.
  • Five Programming Modes: Supports Standard Receiver, Receiver with Adjustable Time Delay (5, 10, 15, or 20 seconds), Dual Channel Receiver (requires CP/RXM module), Receiver with Sequenced Outputs (requires CP/RXM module), and Receiver with Ratchet Relay (requires CP/RXR module) for advanced control logic.
  • FCC Licensed & ClearPath' Compatible: FCC licensed and engineered to be fully compatible with previous MS Sedco models, protecting existing system investments.
  • Interference Rejection: Specifically designed to solve problems caused by interference and stray signals, providing dependable activation where competing transmitters may fail.

Certifications & Compliance

  • FCC Licensed
  • ClearPath' Compatible — interoperable with legacy MS Sedco products and third-party systems
  • Commercial Grade

Technical Specifications

  • Operating Frequency: User-selectable 300MHz, 390MHz or HDRC (filtered 390MHz)
  • Input Power: 9V alkaline battery
  • Mounting: Round wall mount with MS Sedco #1025 (4.5") or #1030 (6") surface box
  • Certification: FCC
  • Housing: Blue ABS plastic

Typical Applications

  • Commercial Office Building Automatic Door Systems
  • Healthcare Facility Hands-Free Door Activation
  • Educational Institution Accessible Entry Points
  • Retail Establishment Automatic Door Control
  • Industrial and Warehouse Facility Access Points
  • Government and Municipal Building Entrances
  • Multi-Tenant Residential and Hospitality Properties

Why MS Sedco CP/TX-R?

MS Sedco ClearPath' transmitters are engineered to address the real-world challenges of RF interference and stray signals that cause competing products to fail. The CP/TX-R's HDRC' technology, combined with tri-frequency support for 300 MHz and 390 MHz, delivers unmatched signal integrity and broad compatibility across new and legacy automatic door systems. For commercial applications where dependable, interference-free door activation is non-negotiable, the MS Sedco CP/TX-R is the professional-grade solution.

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Transmitter
Subcategory:
Radio Control
Commercial/Residential:
Commercial
Electronic:
Yes
Series:
300/390/HDRC Radio Control
Tags:
clearpath cp tx
Product Model:
CP/TX-R
Product Category:
Electronic Access Controls
Department:
Door Hardware

MS Sedco CP/TX-R4 – Frequently Asked Questions

1) Will the MS Sedco CP/TX-R transmitter work with my existing older MS Sedco radio door activation system?
Yes. The CP/TX-R ClearPath transmitter runs three user-selectable frequencies (300 MHz, 390 MHz, and HDRC, which is a filtered 390 MHz) and is built to be compatible with previous MS Sedco models, so it drops into legacy installs without replacing the receiver. The 300 and 390 MHz settings also cover many third-party manufacturer systems. You select the frequency on the transmitter to match whatever receiver is already on the opening.
2) What surface box do I need to mount the ClearPath CP/TX-R round wall transmitter?
The CP/TX-R mounts to an MS Sedco #1025 (4.5 inch) or #1030 (6 inch) surface box, and a surface mounting box ships with the transmitter along with the wire harness and a pre-installed 9V battery. It comes prewired and preassembled, so there is no antenna to run separately; the signal-enhancing antennas are integrated. Match the box to the round size you order, 4 inch or 6 inch.
3) My automatic door opens randomly from stray radio signals. Will HDRC fix that?
That is exactly what HDRC (High Definition Radio Control) is for. It is a filtered 390 MHz mode that rejects distortion from RF interference and stray signals, and it is the setting to select in a busy RF environment such as a hospital, an airport, or a building full of other wireless hardware. Both the transmitter and the receiver have to be set to HDRC for the filtering to apply; if the receiver is an older unit that only does 300 or 390 MHz, run the CP/TX-R on that matching frequency instead.
4) Do I need any additional modules to get a time delay or dual channel operation from the ClearPath transmitter system?
Depends on which of the five programming modes you want. Standard Receiver and Receiver with Adjustable Time Delay (5, 10, 15, or 20 seconds) need nothing extra. Dual Channel Receiver and Receiver with Sequenced Outputs both require the CP/RXM module. Receiver with Ratchet Relay requires the CP/RXR module. Sequenced outputs are what you use on a vestibule where the outer and inner doors must fire in order, so budget the CP/RXM into that job from the start.
5) Does the CP/TX-R wall transmitter need to be wired to power, or is it battery operated?
Battery. The CP/TX-R runs on a 9V alkaline battery, and one comes pre-installed, so there is no line voltage or low voltage run to the actuator location. That is the practical reason to use a wireless actuator: you can put a push plate on a wall, a column, or a glass surround with no conduit back to the operator. The receiver side is what gets wired to the door operator.
6) Should I order the 4 inch or the 6 inch round ClearPath wall transmitter?
Both sizes are the same transmitter; the difference is the diameter of the actuator plate and the surface box it lands on. The 4 inch round is the compact choice for tight jambs, narrow columns, and vestibule walls. The 6 inch round gives a larger push target, which is what most people want on healthcare and accessible entrances where a user may be pushing with an elbow, a forearm, or a wheelchair. The 4 inch pairs with the #1025 box, the 6 inch with the #1030.
7) I am standardizing wireless door actuators across a campus with mixed old and new equipment. Can one transmitter cover all of it?
One part number covers the fleet here. Because the CP/TX-R is switchable between 300 MHz, 390 MHz, and HDRC, the same transmitter can be set to whatever each opening's receiver expects, including legacy MS Sedco receivers and many third-party systems. You stock one device, set the frequency at install, and use HDRC on the openings where interference is a known problem. Order the size to suit the location, 4 inch round or 6 inch round.
8) Is the ClearPath CP/TX-R rated for commercial use, and is it FCC licensed?
Commercial grade and FCC licensed. It is specified for automatic door activation in offices, healthcare facilities, schools, retail, warehouses, government buildings, and multi-tenant residential and hospitality properties. The housing is blue ABS plastic.
