MS Sedco MS Sedco S-COR ClearPath Spectrum Wireless Radio Control System MSS-S-COR

MS Sedco S-COR ClearPath Spectrum Wireless Radio Control System Coordinator with Two-Way Digital Communication

(No reviews yet) Write a Review

Model: S-COR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$225.00
$159.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

MS Sedco S-COR ClearPath Spectrum Wireless Radio Control System Coordinator with Two-Way Digital Communication

The MS Sedco S-COR ClearPath™ Spectrum Wireless Radio Control System is an advanced coordinator designed to set a new standard in wireless door activation for commercial applications. At the heart of the system, the S-COR Coordinator functions as an intelligent MS Sedco receiver when paired with the S-TRX Transceiver or a NexGen wireless actuator, delivering groundbreaking two-way digital communication and comprehensive system diagnostics. Operating at 2.4 GHz, the system's shorter wavelengths provide superior performance through barriers and around obstructions, ensuring reliable wireless activation for automatic door systems.

Key Features

  • Digital Two-Way Communication: Advanced two-way digital communication technology enhances transmission reliability and system security, ensuring signals are confirmed between devices.

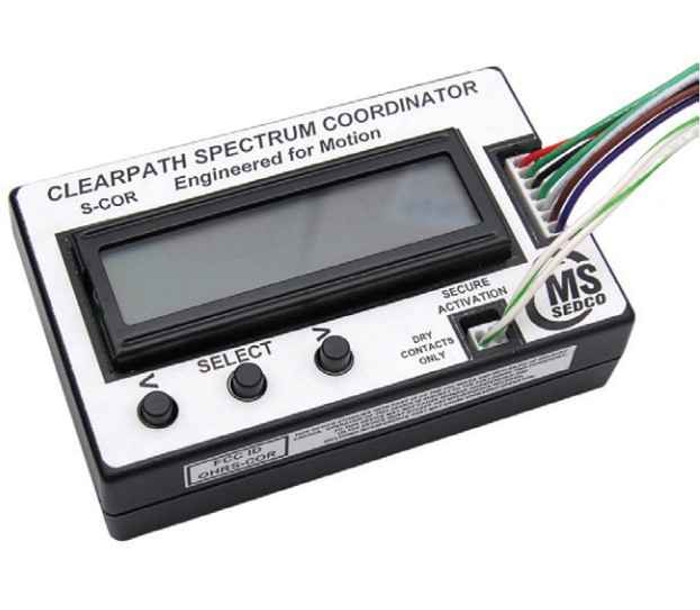

  • LCD Display: The S-COR Coordinator features an integrated LCD display that provides real-time feedback including signal strength, battery status, and device ID for at-a-glance system monitoring.
  • Automatic Device Monitoring: Transceivers continue attempting communication until confirmation is received from the MS Sedco receiver, eliminating missed activations and improving overall system dependability.
  • Multi-Device Pairing: Supports multiple transceivers per coordinator, enabling flexible, scalable configurations across a wide range of door control applications.
  • Optimized 2.4 GHz Frequency: Operates at 2.4 GHz for better performance through barriers and around obstructions compared to lower-frequency alternatives.
  • Compact, Prewired Components: All ClearPath™ transmitters come preinstalled with a battery and circuit board in a mounting box, simplifying installation and reducing setup time.
  • Universal Compatibility: Integrates smoothly with existing MS Sedco systems and accessories, including the S-TRX Transceiver and NexGen wireless actuators.
  • Secure Signal Transfer: Acknowledgment-based communication prevents interference and lost signals, delivering consistent and secure wireless door activation.

Certifications & Compliance

  • Commercial Grade — Designed and rated for commercial door control applications
  • Electronic Access Control — Classified under Electronic Access Controls for professional integration

Technical Specifications

  • System: ClearPath Spectrum wireless radio control coordinator
  • Operating Frequency: 2.4 GHz
  • Communication: Digital two-way - displays device ID, signal strength and battery status
  • Interface: LCD screen for quick, easy programming
  • Outputs: Two built-in outputs
  • Compatibility: Pairs with S-TRX transceivers and NexGen wireless actuators

Typical Applications

  • Commercial Office Buildings with Automatic Door Systems
  • Healthcare Facilities Requiring Hands-Free Door Activation
  • Educational Institutions with Wireless Access Control Needs
  • Retail Establishments Utilizing Automatic Entrance Doors
  • Industrial and Warehouse Facilities with Remote Door Control
  • Government and Municipal Buildings with Electronic Access Systems
  • Multi-Tenant Residential Properties with Controlled Entry Points

Why MS Sedco S-COR?

The MS Sedco ClearPath™ Spectrum S-COR Coordinator delivers professional-grade wireless door control reliability through its advanced two-way digital communication architecture and real-time LCD diagnostics. Engineered specifically for demanding commercial automatic door applications, the S-COR pairs seamlessly with the S-TRX Transceiver and NexGen wireless actuators, offering a scalable and diagnostics-rich solution that goes far beyond traditional wireless receiver functionality.

Product Specs

Product Group:
Electronic Access Controls
Series:
Spectrum Radio Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Radio Control
Subcategory:
Radio Control
Commercial/Residential:
Commercial
Electronic:
Yes
Tags:
ms sedco receiver
Product Model:
S-COR
Product Category:
Electronic Access Controls
Department:
Door Hardware

MS Sedco S-COR – Frequently Asked Questions

1) What does the MS Sedco S-COR coordinator actually do in a wireless automatic door setup?
The S-COR is the receiver end of the ClearPath Spectrum system. Wall plates, wave sensors or other actuators send the activation signal wirelessly; the S-COR picks it up and switches its two built-in outputs to fire the door operator. It pairs with S-TRX transceivers and NexGen wireless actuators. What separates it from a plain receiver is that the link runs both ways, so the transmitter keeps trying until the S-COR acknowledges the signal instead of firing blind into the air.
2) How many door activation devices can one S-COR coordinator handle?
One coordinator supports multiple transceivers, so a single S-COR can take signals from more than one actuator on the same opening, for example an exterior push plate and an interior push plate feeding the same operator. It has two built-in outputs to drive from those inputs. The LCD reports device ID per paired unit, which is how you tell which transmitter is talking when you have several on one coordinator.
3) Will an MS Sedco S-COR work with my existing MS Sedco door controls, or do I have to replace everything?
The S-COR integrates with existing MS Sedco systems and accessories, and specifically pairs with the S-TRX Transceiver and NexGen wireless actuators. Those are the pairings the system is built around. For anything outside the MS Sedco line, treat it as a wired connection through the coordinator's two outputs rather than a wireless pairing.
4) How do I troubleshoot a wireless push plate that only works sometimes?
That is what the LCD on the S-COR is for. The screen reports signal strength, battery status and device ID in real time, so you can stand at the coordinator, have someone hit the plate, and see whether the signal is arriving weak or whether the transmitter battery is going flat. Without that readout you are guessing between a dying battery, a range problem and a bad output connection. The device ID tells you which of the paired transmitters sent the hit.
5) Do I need to buy a transmitter separately with the MS Sedco S-COR coordinator?
Yes. The S-COR is the coordinator, the receiving side of the system. It has to be paired with an S-TRX Transceiver or a NexGen wireless actuator to have anything to receive from, and those are ordered separately. On the transmitter side, ClearPath units arrive with the battery and circuit board already installed in a mounting box, so the field work is mounting and pairing rather than assembly.
6) Is 2.4 GHz better than a 300 or 900 MHz door radio for a building with block walls and long corridors?
The ClearPath Spectrum system runs at 2.4 GHz, and MS Sedco's reasoning is that the shorter wavelengths get through barriers and around obstructions better than lower-frequency alternatives. The practical difference on a job is less about raw range and more about what sits between the plate and the receiver. It also matters that the link is two-way: if a signal is degraded, the transmitter retries until the coordinator confirms, so a marginal path shows up as a delay rather than a dead push plate.
7) How is the S-COR programmed, and do I need a laptop or a programming tool on site?
Programming is done at the unit through its LCD screen, which MS Sedco provides for quick, easy setup. Pairing transmitters and checking their status happens on that display, so a technician works at the coordinator itself rather than carrying separate software. Full setup steps are in the ClearPath Series wireless transmitters and receivers data sheet.
8) Is the MS Sedco S-COR a commercial-grade unit or is it meant for residential garage-style use?
Commercial. The S-COR is classified commercial grade and built for commercial automatic door control, with the typical installs being office buildings, healthcare facilities requiring hands-free activation, schools, retail entrances, warehouses, government buildings and multi-tenant residential entry points. It is an electronic device requiring power at the coordinator location, not a battery-only accessory.
9) Only one model of the MS Sedco S-COR? Are there different frequency or voltage versions to pick from?
There is one configuration, model S-COR, in the Spectrum Radio Controls series. No frequency, finish or voltage options to specify on the order. It runs at 2.4 GHz and carries two outputs as built.
