NGP 101V Vinyl Door Sweep with Aluminum Alloy Housing

NGP 101V Vinyl Door Sweep with Aluminum Alloy Housing

(No reviews yet) Write a Review

Model: 101VA-36
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$27.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

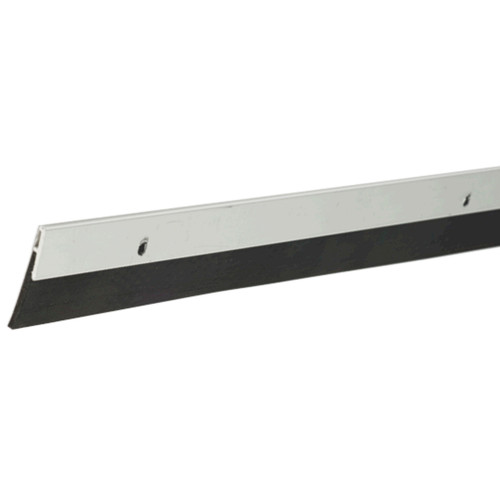

You may also like

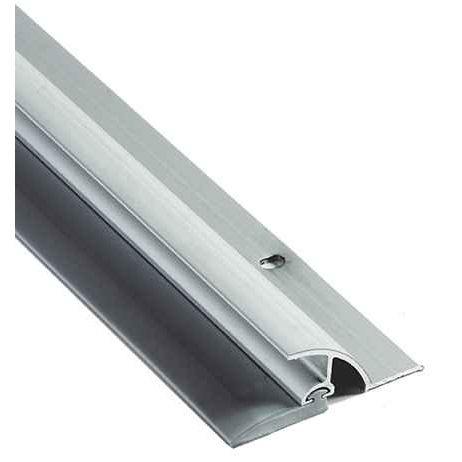

NGP 101V Vinyl Door Sweep with Aluminum Alloy Housing

Professional Door Bottom Sealing Solution

The NGP 101V Vinyl Door Sweep combines durable aluminum alloy 6063 T5 temper construction with thermoplastic polyvinyl chloride (PVC) sealing material for effective door bottom weatherization. This economical door sweep operates reliably in temperatures from 0 F to 140 F and features flame-resistant and moisture-resistant properties for commercial applications. The unit includes #6 x 3/4" stainless steel SMS fasteners with slotted screw holes for precise installation adjustment.

Professional Features & Benefits

  • Temperature Performance: Operates effectively in temperature range from 0 F to 140 F for year-round reliability in various climate conditions.
  • Durable Aluminum Construction: Aluminum alloy 6063 T5 temper housing provides exceptional strength and corrosion resistance for long-term commercial use.
  • Environmentally Friendly Materials: Polyvinyl chloride (PVC) formulated with bio-based plasticizer reduces environmental impact while maintaining performance.
  • Fire and Moisture Protection: Flame-resistant and moisture-resistant properties provide enhanced safety and durability in demanding applications.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation for optimal sealing performance.
  • Complete Hardware Package: Includes #6 x 3/4" stainless steel SMS fasteners for secure mounting and corrosion resistance.
  • Multiple Finish Options: Available in mill aluminum, anodized aluminum, and dark bronze aluminum finishes to match various architectural requirements.
  • Economical Solution: Cost-effective door bottom sealing that delivers professional performance for commercial weatherization needs.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Sweeps and Bottoms
  • Series: Vinyl Door Sweep Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door sweep products deliver professional-grade weatherization with aluminum alloy 6063 T5 temper construction and environmentally friendly PVC materials rated for 0 F to 140 F temperature performance. The flame-resistant and moisture-resistant design ensures reliable operation in demanding commercial environments. Engineered for cost-effective door bottom sealing where dependable weather protection is essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Vinyl Door Sweep Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Sweeps and Bottoms
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 101VA-36 – Frequently Asked Questions

1) Will the NGP 101V door sweep fit a 36 inch commercial door?
The 101V comes in 36, 42, and 48 inch lengths, so a standard 36 inch door leaf is covered directly. Aluminum extrusion sweeps like this one are meant to be cut down to the exact door width, so on a 42 inch or 48 inch opening you take the next length up and trim. The screw holes are slotted, which gives you vertical adjustment after the sweep is on the door so you can set the vinyl to just kiss the threshold.
2) Will a vinyl door sweep hold up outside in winter, or do I need a brush sweep?
The 101V is rated 0 F to 140 F, which covers most exterior service and entry doors in a temperate climate but does not extend to sustained sub-zero conditions. Vinyl gives you a continuous wiping seal against air and water, so it is the better choice where you are chasing drafts, dust, or blowing rain. A brush sweep, like the Pemko 29326NB or the Cal-Royal BTN-112 with its neoprene insert, drags less on rough or uneven floors and holds up better where the sweep is being scuffed constantly, but it does not seal water as tightly.
3) Can I use the NGP 101V to keep rain from running under an exterior door?
A sweep alone only seals the gap at the bottom of the door. The 101V is moisture-resistant and its vinyl seal will stop wind-driven water at the door bottom, but water running down the face of the door still reaches the threshold. On an exposed exterior opening you want a drip cap as well, such as the Pemko 3452 surface plate rain drip, which throws the runoff clear of the door bottom before it gets there. The two are commonly installed together.
4) What is the difference between the NGP 101V vinyl door sweep and the Pemko 345V door bottom sweep?
Both are surface-applied door bottom sweeps that mount to the face of the door. The NGP 101V uses a thermoplastic polyvinyl chloride seal in an aluminum alloy 6063 T5 housing, with the PVC formulated using a bio-based plasticizer, and it is rated for 0 F to 140 F. The Pemko 345V carries a GREENGUARD Gold certified Eco-V insert. If a project is chasing a documented low-emissions certification for the submittal, the 345V is the one that carries it; if the requirement is a flame-resistant and moisture-resistant PVC seal on an aluminum retainer for a commercial opening, the 101V covers it in 36, 42, and 48 inch lengths.
5) I need a door sweep for a floor that is uneven or has carpet. Is a vinyl sweep the right choice?
A vinyl seal like the one on the NGP 101V rides flat against the threshold and seals best on a smooth, even floor. Over carpet, thresholds with debris, or a floor that varies across the swing, a brush sweep conforms better because the filament bends around the irregularity instead of dragging on it. The Pemko 29326NB is a 36 inch brush door bottom sweep in clear anodized aluminum with a concealed fastener design, and the Cal-Royal BTN-112 is a brush-type bottom sweep with an extruded aluminum retainer and neoprene insert. Use the 101V where the floor is flat and the priority is a continuous flame-resistant and moisture-resistant PVC seal.
6) Is the Cal-Royal BTN-112 a direct replacement for an NGP 101V vinyl sweep?
It is a substitute in position, not in seal type. Both are surface-mounted door bottom sweeps on an aluminum retainer, but the Cal-Royal BTN-112 is a brush weatherstrip with an extruded aluminum retainer and a neoprene insert, while the NGP 101V carries a thermoplastic PVC seal rated 0 F to 140 F with flame-resistant and moisture-resistant properties. Swapping one for the other changes how the opening seals against light, air, and smoke migration, so on a fleet of doors already running vinyl, matching the 101V keeps the sweep behavior consistent across the building.
7) Does the NGP 101V come with mounting screws or do I need to supply my own?
Screws are in the box. The 101V ships with #6 x 3/4 inch stainless steel sheet metal screws, so on a hollow metal or wood door you have what you need to hang it. Nothing else is required unless you are drilling into an aluminum door and want to tap the holes rather than run SMS into them.
8) Which finish of the NGP 101V sweep should I order to match my doors?
Three finishes are made: mill aluminum, anodized aluminum, and dark bronze. Mill is the raw untreated extrusion and is the usual pick for back-of-house or service doors where appearance does not matter. Anodized reads as a clean satin silver and matches most aluminum storefront and clear-anodized frames. Dark bronze matches bronze-anodized entrances and dark painted hollow metal. All three are offered in every length, 36, 42, and 48 inches.
9) Is the NGP 101V sweep suitable for a fire rated door opening?
The 101V uses a flame-resistant PVC seal in an aluminum alloy 6063 T5 housing, which is why it turns up on commercial corridor and stairwell doors. Flame-resistant is a material property, not a fire rating on the assembly. If your opening is a rated one, the sweep has to be listed for the door and frame assembly you are working on, so match it to what your door schedule calls out.
10) Will the NGP 101V sweep drag on my carpet or interfere with the door closing?
A surface-mounted sweep like the 101V hangs below the door bottom and sweeps across whatever is under it, so on carpet or an uneven floor it will drag. The slotted screw holes let you raise it as high as the seal still contacts, which solves most of it. Where the floor gap varies a lot across the swing, or where you need the seal off the floor entirely when the door is open, an automatic door bottom that drops only when the door closes is the correct part instead of a fixed sweep.
11) The exterior door I am sealing gets driving rain. Will a door sweep alone handle it?
The NGP 101V seals the gap under the door leaf with a PVC seal in an aluminum alloy 6063 T5 housing, but it does nothing about water running down the face of the door and reaching that joint. On a weather-exposed opening, pair or substitute a rain drip: the Pemko 3452 is a surface plate rain drip door bottom, which throws runoff clear of the door bottom rather than letting it track into the seal. Interior corridor, stair, and tenant doors do not need the drip and the 101V on its own is the simpler assembly.
12) Can I use a brush sweep instead of the NGP 101V if I need to hide the fasteners?
Yes. The NGP 101V mounts with #6 x 3/4 inch stainless steel SMS fasteners through slotted screw holes, which stay visible on the door face and are what lets you adjust the seal height at install. The Pemko 29326NB uses a concealed fastener design instead, so the screw heads do not read on the face of the door. Choose by which matters more on the opening: visible slotted holes that you can shift up or down to fine-tune contact, or a clean face with the fasteners hidden.
13) For a facility standardizing on one door sweep across all buildings, what separates the NGP 101V from the other aluminum-housing sweeps?
The NGP 101V is specified as commercial and is built on an aluminum alloy 6063 T5 temper housing with a PVC seal carrying a 0 F to 140 F temperature range, available in mill aluminum, anodized aluminum, and dark bronze across 36, 42, and 48 inch lengths, so one part number covers three common door widths and three finish schedules. The Pemko 29326NB and Pemko 56 Series are each catalogued at a 36 inch length, and the 29326NB in clear anodized aluminum. If the standard has to cover 42 and 48 inch leaves and a bronze finish schedule alongside aluminum, the 101V family stretches across all of it.
14) Can I standardize the NGP 101V sweep across a whole building of doors?
That is what this sweep is built for. It is a commercial-grade product offered in three lengths and three finishes, so a property manager or facilities buyer can cover 36 inch office and utility doors and 42 or 48 inch openings from the same part number, cutting to width where needed. The aluminum alloy 6063 T5 housing is corrosion resistant, so the same sweep works on interior corridor doors and on exterior service doors. Pick one finish across the building and the replacement stock is a single line item.
