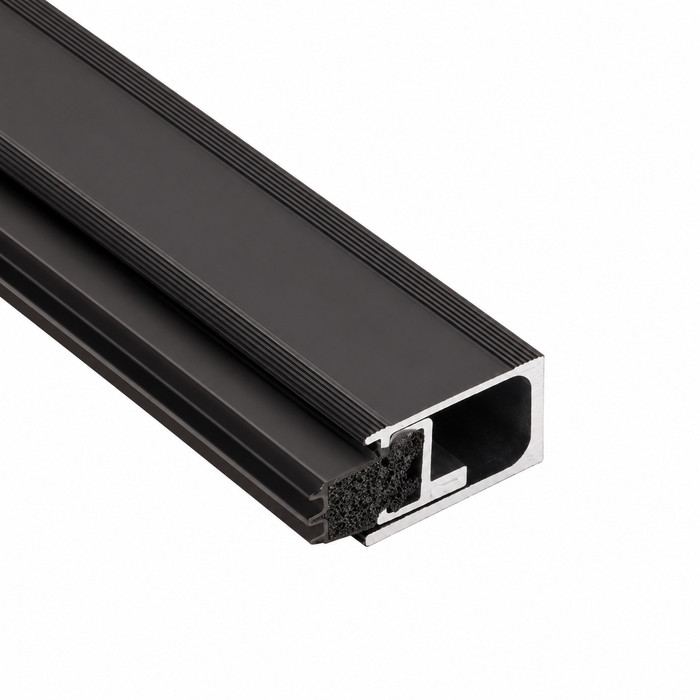

NGP 106SDKB Adjustable Silicone Perimeter Seal, Dark Brown Finish

NGP 106SDKB Adjustable Silicone Perimeter Seal with Dark Bronze Finish and Temperature Range -100 F to 500 F

(No reviews yet) Write a Review

Model: 106SDKB-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$144.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Adjustable Silicone Perimeter Seal with Dark Bronze Finish and Temperature Range -100 F to 500 F

Professional Perimeter Sealing Solution for Commercial Applications

The NGP Adjustable Silicone Perimeter Seal delivers professional-grade environmental sealing with aluminum alloy 6063 T5 temper construction and synthetic rubber polymer siloxane material. This commercial door gasket operates reliably across an extreme temperature range of -100 F to 500 F while maintaining excellent flexibility and memory. BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, this perimeter seal features adjustment screws on 10" centers for precise installation without repositioning.

Professional Features & Benefits

  • Extreme Temperature Performance: Operates from -100 F to 500 F while maintaining flexibility for reliable sealing in demanding environments.
  • Heavy-Duty Construction: Aluminum alloy 6063 T5 temper frame with synthetic rubber polymer siloxane material provides exceptional durability for commercial applications.
  • Adjustable Installation: Adjustment screws on 10" centers allow precise positioning without re-positioning mounting location for optimal sealing performance.
  • Fire Suppression System Compatible: Recommended for areas using FM200 or Halon Fire Suppression Systems with flame resistant properties.
  • Environmental Resistance: Excellent resistance to ozone, UV, aging, and moisture for long-term performance in challenging conditions.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold ensuring compliance with industry standards.
  • Complete Hardware Package: Includes #6 x 3/4" or #6 x 1-1/2" stainless steel SMS fasteners for secure mounting.
  • Optional Fast Attach Tape: FATT option available for alternative mounting applications requiring adhesive installation.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Healthcare Facilities with Environmental Controls
  • Industrial Clean Room Applications
  • Fire Suppression System Areas
  • Temperature-Controlled Storage Facilities
  • Laboratory and Research Facilities
  • High-Security Government Buildings

Why Choose NGP Quality?

NGP perimeter sealing products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and BHMA certification to ANSI/BHMA A156.22 performance standards. The synthetic rubber polymer siloxane material maintains excellent flexibility and memory across extreme temperature ranges from -100 F to 500 F. Engineered for demanding commercial applications where dependable environmental sealing and fire suppression system compatibility are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 106SDKB-36 – Frequently Asked Questions

1) Can I fine tune the seal pressure after the gasket is screwed to the frame?
Yes, that is the point of this one. Adjustment screws sit on 10 inch centers, so you can move the silicone insert in or out against the door face without pulling the retainer off and re-drilling the frame. Useful on older frames where the door does not sit square to the stop.
2) Will this gasket hold up in a boiler room or a freezer door?
Both ends of that range are covered. The siloxane synthetic rubber polymer stays flexible from -100 F to 500 F and keeps its memory, so it will not go brittle in cold storage or take a permanent set against a hot frame. It is also BHMA certified to the ANSI/BHMA A156.22 heat and cold performance tests.
3) Is silicone perimeter gasketing the right choice for a room with an FM200 or Halon fire suppression system?
It is the recommended type. NGP calls out the 106 silicone seal for rooms served by FM200 or Halon suppression, because the flame resistant silicone holds a tight perimeter so the agent concentration stays in the room. A vinyl insert gasket is the cheaper general purpose option but is not what you want on a clean agent enclosure.
4) What is the difference between the NGP 106SDKB perimeter seal and the Cal-Royal PG-601 gasketing?
Both are channel-style perimeter gasketing that mounts to the frame stop to seal the head and jambs of a commercial opening. The NGP 106SDKB uses an aluminum alloy 6063 T5 temper channel with a synthetic rubber polymer siloxane (silicone) seal rated from -100 F to 500 F, and it is BHMA certified to ANSI/BHMA A156.22 heat and cold performance tests. The Cal-Royal PG-601 is an aluminum channel perimeter gasketing with a vinyl insert. Silicone holds flexibility and memory across a far wider temperature swing than vinyl, so the 106SDKB is the one to specify for boiler rooms, cold storage, labs, and rooms served by FM200 or Halon fire suppression, while a vinyl-insert channel is a conventional choice for interior openings at normal room temperature.
5) What fasteners come with the NGP 106SDKB, and can I install it without drilling?
Stainless steel sheet metal screws are supplied, #6 x 3/4 inch or #6 x 1-1/2 inch depending on the frame. If you cannot drill the frame, NGP offers the FATT fast attach tape option for adhesive mounting instead.
6) How does the NGP 106 silicone seal differ from a vinyl insert perimeter gasket like the Cal-Royal PG-601?
Both are aluminum channel perimeter gasketing that screws to the frame stop. The Cal-Royal PG-601 uses a vinyl insert, which is the standard choice for ordinary interior and exterior commercial openings. The NGP 106 uses a silicone insert, which is what you specify when the opening sees extreme temperature, UV, ozone, or a clean agent suppression system. For a plain office corridor door, the vinyl gasket does the job.
7) I need perimeter gasketing for a normal interior office door - is silicone overkill?
For a standard conditioned interior opening, a vinyl-insert channel such as the Cal-Royal PG-601 aluminum channel perimeter gasketing covers the job. The NGP 106SDKB is built for conditions that vinyl is not asked to handle: a silicone (synthetic rubber polymer siloxane) seal rated -100 F to 500 F with resistance to ozone, UV, aging, and moisture, plus flame resistant properties for rooms using FM200 or Halon fire suppression. Choose the 106SDKB when the opening sees temperature extremes, chemical or UV exposure, or a suppression system; choose the vinyl channel when it does not.
8) Do both the NGP 106SDKB and the Cal-Royal PG-601 let you adjust the seal after the channel is screwed on?
The NGP 106SDKB does. It carries adjustment screws on 10 inch centers, so the seal can be moved in or out against the door face to tune the contact without unscrewing and repositioning the channel on the frame - useful on an existing opening where the door is slightly out of plane. The Cal-Royal PG-601 is described as an aluminum channel perimeter gasketing with a vinyl insert, a fixed-channel style. If the job involves a frame you cannot re-drill or a door that does not sit true, the adjustable NGP channel gives you the recovery.
9) Can I use a door shoe instead of the NGP 106SDKB to seal my door?
No - they seal different parts of the opening. The NGP 106SDKB is perimeter gasketing that mounts to the head and jambs of the frame and seals against the door face. A door shoe, the family the Cal-Royal PG-601 is grouped with in its Door Shoes Series, addresses the bottom of the door. A fully sealed opening typically needs both: perimeter gasketing at the head and jambs plus a shoe or door bottom at the sill. Ordering the 106SDKB alone will leave the undercut open.
10) Will dark bronze gasketing match the rest of my hardware, and what is the frame made of?
The retainer is 6063 T5 aluminum finished in dark bronze, which reads close to oil rubbed bronze and dark anodized frames. If the building runs clear aluminum or mill finish frames, the bronze will contrast, so match the finish to the frame rather than the lockset when you are standardizing across a lot of openings.
11) Is this gasket suitable for exterior doors exposed to sun and weather?
Yes. The siloxane insert resists ozone, UV, aging and moisture, so it will not chalk or crack the way some elastomers do on a south-facing entrance. The 6063 T5 aluminum retainer handles the exposure on its side.
12) Is the NGP 106SDKB rated for commercial traffic or is it a residential weatherstrip?
It is a commercial product, built for office buildings, healthcare, labs, clean rooms and temperature controlled storage. The aluminum retainer and screw-applied mounting are what separates it from residential foam or adhesive-backed weatherstrip, which will not survive a door that cycles hundreds of times a day.
