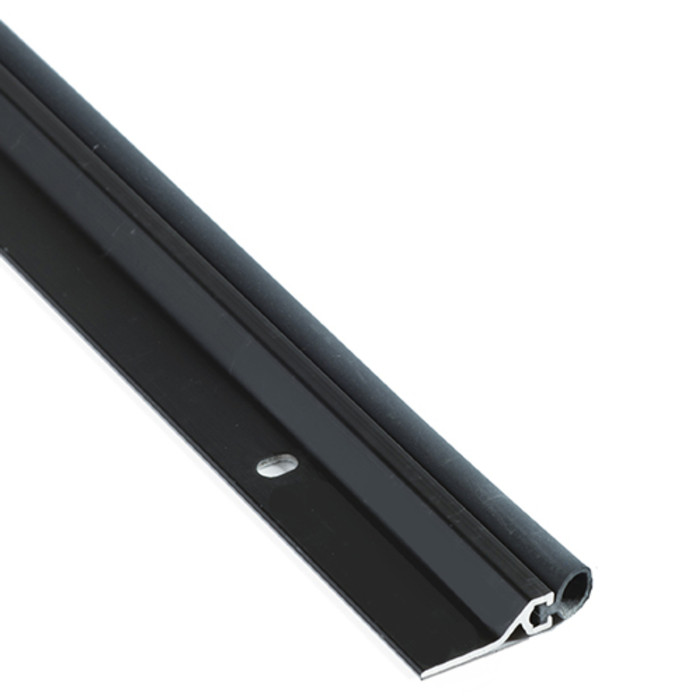

NGP 160VDKB Vinyl Perimeter Seal with Dark Bronze Aluminum Frame and Temperature Range 0 F to 140 F

NGP 160VDKB Vinyl Perimeter Seal with Dark Bronze Aluminum Frame and Temperature Range 0 F to 140 F

(No reviews yet) Write a Review

Model: 160VDKB-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$19.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Vinyl Perimeter Seal with Dark Bronze Aluminum Frame and Temperature Range 0 F to 140 F

Professional Door Weatherstripping Solution

The NGP Vinyl Perimeter Seal combines aluminum alloy 6063 T5 temper construction with thermoplastic polyvinyl chloride insert for reliable door sealing performance. This commercial-grade weatherstripping operates effectively in temperatures from 0 F to 140 F and features dark bronze aluminum finish with black vinyl insert. The system includes #6 x 3/4" stainless steel sheet metal screws with slotted holes for precise adjustment during installation.

Professional Features & Benefits

  • Temperature Performance: Operates reliably from 0 F to 140 F for year-round weather sealing in various climates.
  • Durable Construction: Aluminum alloy 6063 T5 temper frame provides structural integrity and corrosion resistance for long-term performance.
  • Environmentally Friendly Materials: Thermoplastic polyvinyl chloride formulated with bio-based plasticizer for reduced environmental impact.
  • Flame and Moisture Resistance: Engineered to resist flame spread and moisture intrusion for enhanced safety and durability.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation.
  • Complete Hardware Package: Includes #6 x 3/4" stainless steel sheet metal screws for secure mounting.
  • Professional Appearance: Dark bronze aluminum finish with black vinyl insert provides attractive, coordinated appearance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Series: Vinyl Perimeter Seal Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Building Entrances
  • Educational Facility Exterior Doors
  • Healthcare Institution Weather Sealing
  • Retail Store Front Door Systems
  • Industrial Facility Personnel Doors
  • Multi-Tenant Residential Entry Doors
  • Government Building Perimeter Sealing

Why Choose NGP Quality?

NGP Vinyl Perimeter Seal products deliver professional-grade weather sealing with aluminum alloy 6063 T5 temper construction and environmentally friendly bio-based plasticizer formulation. The flame and moisture resistant design operates reliably across a wide temperature range from 0 F to 140 F. Engineered for demanding commercial applications where consistent weather protection and energy efficiency are essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Vinyl Perimeter Seal Series
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 160VDKB-36 – Frequently Asked Questions

1) Will the NGP 160VDKB perimeter seal fit my door frame if the opening isn't perfectly square?
The 160VDKB mounts with slotted screw holes, so you can shift the aluminum channel in or out against the door face before you tighten it down. That adjustment is what lets you chase a frame that has settled or a door that closes tighter at one end than the other. Fasteners come in the box: #6 x 3/4 inch stainless steel sheet metal screws.
2) What lengths does the NGP 160VDKB perimeter seal come in, and how do I order enough for a full door opening?
Five lengths: 36, 48, 84, 96, and 108 inches. Perimeter gasketing runs head and both jambs, so a single door needs one head piece plus two jamb pieces. A standard 3070 opening is usually covered by a 36 inch head and a pair of 84 inch jambs; the 96 and 108 inch pieces are there for taller openings or for cutting two jambs out of one stick. Each length is ordered separately, so count the pieces per opening rather than the doors.
3) Can the NGP 160VDKB weatherstripping handle an unheated exterior door through winter?
Rated service range is 0 F to 140 F, which covers most exterior commercial entrances but not a walk-in freezer or a sustained deep-subzero climate. The insert is thermoplastic PVC with a bio-based plasticizer, and the channel is 6063 T5 aluminum, so the frame itself resists corrosion on a weather-exposed opening.
4) What is a comparable aluminum channel perimeter gasket to the NGP 160VDKB?
The Cal-Royal PG-601 is built the same way: an aluminum channel carrying a vinyl insert, applied around the head and jambs of the opening. The NGP 160VDKB uses an aluminum alloy 6063 T5 temper frame with a thermoplastic polyvinyl chloride insert, dark bronze frame with black vinyl, rated for service from 0 F to 140 F and supplied with #6 x 3/4 inch stainless steel sheet metal screws. Where the two differ for a specifier is finish and stated temperature service: the dark bronze aluminum with black vinyl on the 160VDKB is a coordinated appearance choice for storefront and office entrances, and the 0 F to 140 F range is published for it. If you are matching an existing dark bronze perimeter run on the other doors of a building, the 160VDKB carries that finish; if the opening simply needs an aluminum-channel-and-vinyl perimeter seal in any finish, the PG-601 is the same class of part.
5) What is the difference between perimeter gasketing and a door sweep or door bottom?
Perimeter gasketing like the 160VDKB seals the head and the two jambs, the gap between the door edge and the frame stop. It does nothing for the gap under the door. That bottom gap needs a separate sweep, door shoe, or automatic door bottom. Sealing an exterior opening properly takes both, ordered as separate items.
6) Is the NGP 160VDKB dark bronze seal going to match my existing bronze storefront doors?
The 160VDKB is a dark bronze anodized-look aluminum channel with a black vinyl insert, so it reads dark against bronze or black storefront and hollow metal. If the rest of the opening is clear aluminum or painted white, the dark bronze will stand out and you'd want a finish that matches the frame instead.
7) Is the NGP 160VDKB rated for commercial use or is it a residential weatherstrip?
Commercial duty. The 160VDKB uses a 6063 T5 aluminum retainer rather than a foam-tape or plastic-clip residential strip, and it's specified for office entrances, school and healthcare exterior doors, storefronts, industrial personnel doors, and multi-tenant entries. That matters for high-cycle openings where a self-adhesive residential seal peels off within a season.
8) Does the NGP 160VDKB vinyl seal resist flame spread?
The vinyl insert on the 160VDKB is formulated to resist flame spread and moisture intrusion. That is a material property of the PVC, not a fire-door label, so it does not by itself qualify an opening for a rated assembly. If you are gasketing a labeled fire door, specify gasketing carrying the listing your inspector needs.
9) Can a door shoe be used instead of a perimeter seal on a commercial entrance?
No - they seal different parts of the opening and are not interchangeable. A perimeter seal such as the NGP 160VDKB mounts to the head and jambs of the frame and closes the gap around the top and sides of the door, using slotted screw holes so the seal can be adjusted against the door face during installation. A door shoe attaches to the bottom rail of the door itself and closes the gap at the threshold. On an exterior entrance that leaks air at both places, you need both parts, not one instead of the other. The 160VDKB is ordered by the length you need for the run - 36, 48, 84, 96 and 108 inch lengths are made - so a typical single door takes one length cut for the head plus lengths for each jamb.
10) Do I need to drill and tap the frame to install NGP perimeter gasketing?
No. The 160VDKB ships with #6 x 3/4 inch stainless steel sheet metal screws, which thread directly into hollow metal or wood frame stop with a pilot hole. Stainless fasteners are the right call on an exterior opening where a plated screw head would rust and streak the frame. Cut the aluminum channel to length with a miter saw and a non-ferrous blade.
