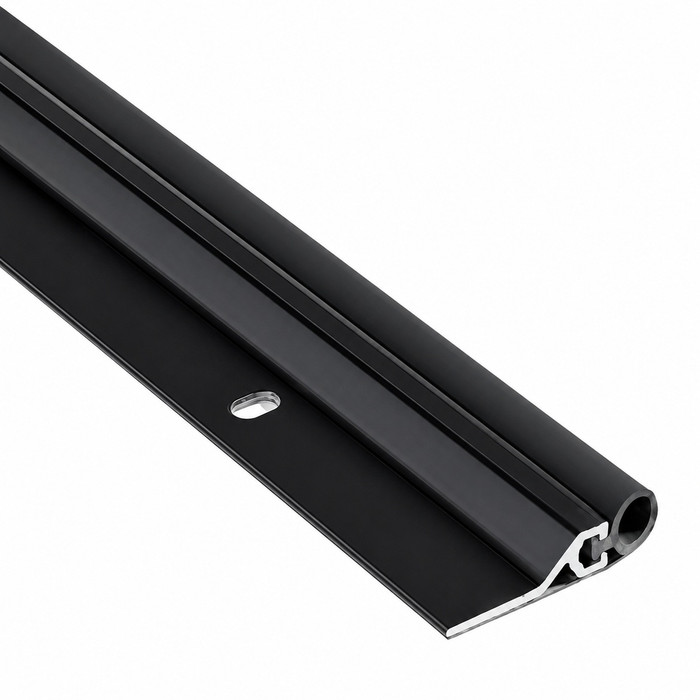

NGP 164VDKB Aluminum Vinyl Perimeter Seal, Dark Bronze Finish

NGP 164VDKB Aluminum Vinyl Perimeter Seal with Dark Bronze Finish and Temperature Range 0 F to 140 F

(No reviews yet) Write a Review

Model: 164VDKB-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$22.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Aluminum Vinyl Perimeter Seal with Dark Bronze Finish and Temperature Range 0 F to 140 F

Professional Door Weatherstripping Solution

The NGP Aluminum Vinyl Perimeter Seal combines durable aluminum alloy 6063 T5 temper construction with black vinyl sealing material in an attractive dark bronze finish. This economical weatherstripping solution operates effectively in temperatures from 0 F to 140 F and features flame-resistant and moisture-resistant properties. The thermoplastic polymer vinyl is formulated with an environmentally friendly bio-based plasticizer for enhanced performance and environmental responsibility.

Professional Features & Benefits

  • Temperature Performance: Operates reliably from 0 F to 140 F for year-round weather protection in various climates.
  • Durable Aluminum Construction: Aluminum alloy 6063 T5 temper provides exceptional strength and corrosion resistance for long-term performance.
  • Environmentally Friendly Formulation: Polyvinyl chloride vinyl formulated with bio-based plasticizer reduces environmental impact while maintaining performance.
  • Fire and Moisture Resistance: Flame-resistant and moisture-resistant properties provide enhanced safety and durability in demanding applications.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and adjustment during installation for optimal sealing performance.
  • Complete Hardware Package: Includes #6 x 3/4" stainless steel sheet metal screws for secure mounting and professional installation.
  • Professional Appearance: Dark bronze finish with black vinyl provides an attractive, professional appearance suitable for commercial applications.
  • Economical Solution: Cost-effective weatherstripping option that delivers reliable performance without compromising quality.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Building Entrances
  • Educational Facility Exterior Doors
  • Healthcare Institution Weather Barriers
  • Retail Store Front Door Systems
  • Industrial Facility Personnel Doors
  • Multi-Tenant Residential Entry Points
  • Government Building Perimeter Sealing

Why Choose NGP Quality?

NGP weatherstripping products deliver professional-grade sealing performance with aluminum alloy 6063 T5 temper construction and environmentally friendly vinyl formulation. The temperature range of 0 F to 140 F ensures reliable operation across diverse climate conditions. Engineered for demanding commercial applications where effective weather sealing and professional appearance are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 164VDKB-36 – Frequently Asked Questions

1) Will the NGP 164VDKB perimeter seal work on an exterior commercial entrance door?
That's what the 164VDKB is built for. It's a commercial-rated aluminum perimeter gasket with a black vinyl sealing bulb, rated for service from 0 F to 140 F, and the vinyl is flame resistant and moisture resistant. It mounts to the frame around the head and jambs of a swinging door to seal the perimeter against air and water. Office entrances, school exterior doors, storefronts and industrial personnel doors are all in scope.
2) What lengths does the NGP 164VDKB perimeter seal come in, and how many do I need per door?
Two lengths are offered: 36 inches and 84 inches. On a standard single swinging door you gasket three sides, so the usual order is one 36 inch piece for the head and two 84 inch pieces for the jambs. A pair of doors doubles the jamb count only if you're sealing both outer jambs, so measure the actual frame legs before you count pieces.
3) Will a perimeter seal like the NGP 164VDKB seal the bottom of the door, or do I need a separate part?
A perimeter seal handles the head and the two jambs only. The NGP 164VDKB is an aluminum channel with a black vinyl seal that mounts to the frame and closes the gap where the door meets the stop, and it is supplied in 36 inch and 84 inch lengths, the 36 inch piece cut for a head and the 84 inch pieces for the jambs of a standard opening. The bottom of the door is a different part: a door shoe or door bottom, which mounts to the door itself rather than the frame. The Cal-Royal PG-601 is likewise perimeter gasketing with a vinyl insert. A property manager sealing a drafty exterior entrance should plan on perimeter gasketing plus a separate bottom seal to close all four sides.
4) What is a cross-brand equivalent to the NGP 164VDKB aluminum vinyl perimeter seal?
The closest cross-brand counterpart is the Cal-Royal PG-601 Aluminum Channel Perimeter Gasketing with Vinyl Insert. Both are built the same way: an extruded aluminum channel carrying a vinyl sealing insert, applied around the head and jambs of the frame to close the perimeter gap. The NGP 164VDKB is the dark bronze version, using aluminum alloy 6063 T5 temper with a black vinyl seal rated for service from 0 F to 140 F, and it ships with #6 x 3/4 inch stainless steel sheet metal screws and slotted holes so the seal can be shimmed in or out against the stop after the door is hung. A contractor matching an existing perimeter gasket on a commercial opening can specify either as an aluminum-and-vinyl perimeter seal; confirm the finish and the length you need against the frame before ordering.
5) Do I need to buy screws separately for the NGP 164VDKB weatherstrip?
No extra fasteners needed. The 164VDKB ships with #6 x 3/4 inch stainless steel sheet metal screws. Stainless matters on an exterior opening, since plated steel screws in an aluminum gasket are the first thing to rust-streak the frame.
6) Can the NGP 164VDKB seal be adjusted after it's mounted, or is the vinyl position fixed?
The screw holes in the aluminum retainer are slotted, so you can set the gasket, close the door, and shift the retainer in or out to tune the compression on the vinyl before you tighten down. That's the difference between a seal that stops air and one that either leaks or drags the door out of latch. Worth doing on every leg rather than just eyeballing the head piece.
7) What's the difference between the NGP 164VDKB and the Cal-Royal PG-601 perimeter gasketing?
Both are the same idea: an aluminum channel carrying a vinyl insert, screwed to the frame to seal the perimeter. The 164VDKB is the dark bronze version with black vinyl, aluminum alloy 6063 T5, rated 0 F to 140 F, and it comes in 36 and 84 inch lengths with stainless screws included. The Cal-Royal PG-601 is the aluminum channel equivalent with a vinyl insert. If you're already running NGP gasketing elsewhere in the building, stay with the 164VDKB so the profile and finish match across openings.
8) Will the NGP 164VDKB vinyl hold up in a cold climate or on a sun-exposed south entrance?
Service range on the 164VDKB is 0 F to 140 F. That covers a sun-loaded south or west elevation and typical winter service in most of the country, but a walk-in freezer vestibule or an unheated opening in a climate that regularly runs below zero is outside the stated range. The vinyl is a thermoplastic polymer made with a bio-based plasticizer, and it's flame resistant and moisture resistant.
9) I need perimeter gasketing on a commercial opening that gets cold in winter. Does the NGP 164VDKB suit that better than the Cal-Royal PG-601?
The NGP 164VDKB carries a stated service range of 0 F to 140 F, so it is specified for openings that swing between winter cold and summer heat, and its vinyl is a polyvinyl chloride formulated with a bio-based plasticizer that is flame resistant and moisture resistant. The Cal-Royal PG-601 is the same style of part, an aluminum channel with a vinyl insert, and is a direct alternative where the aluminum-and-vinyl construction is what the job calls for. For an institutional buyer standardizing exterior personnel doors across a facility and writing a temperature range into the spec, the 164VDKB is the one with the 0 F to 140 F figure to cite, in dark bronze with a black seal.
10) Will the dark bronze NGP 164VDKB match anodized bronze aluminum storefront frames?
The 164VDKB carries a dark bronze finish on the aluminum retainer with black vinyl, which is the standard pairing for dark bronze anodized storefront and hollow metal painted dark. Against a clear anodized or mill finish frame it will read as a deliberate dark line rather than disappearing, so property managers standardizing a building usually pick the retainer finish to match the frame and accept the black bulb, which is the only vinyl color here.
11) Is aluminum 6063 T5 gasketing okay for a coastal or wash-down opening?
6063 T5 is the standard architectural aluminum extrusion alloy and it resists corrosion well, which is why the 164VDKB retainer uses it, and the included screws are stainless rather than plated steel. The two together are the reason this holds up on an exterior opening where a steel-fastened gasket would streak and seize.
12) I'm replacing worn weatherstripping on a school's exterior doors. Can I reuse the existing holes?
Sometimes, and the slotted holes in the 164VDKB retainer are what give you the play to do it. Slots let you catch an existing screw line within a range instead of drilling fresh. Where the old pattern falls outside the slot, drill new and plug the old. Cut the aluminum to length with a miter saw and a non-ferrous blade, then set the vinyl compression with the door closed before final tightening.
