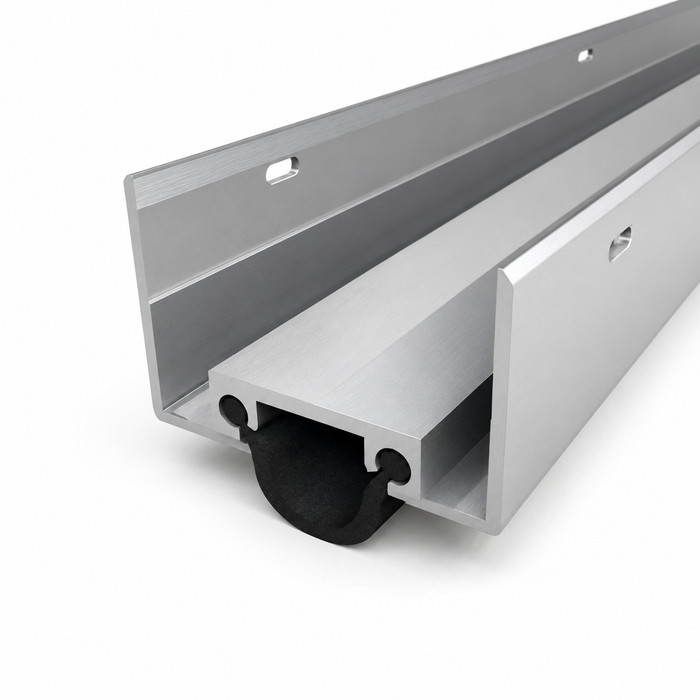

NGP 15N Neoprene Door Shoe, 36", Anodized Aluminum

NGP 15N Neoprene Door Shoe with Anodized Aluminum - 36" Commercial Grade

(No reviews yet) Write a Review

Model: 15NA
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$68.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP 15N Neoprene Door Shoe with Anodized Aluminum - 36" Commercial Grade

Professional Door Bottom Sealing Solution

The NGP 15N Neoprene Door Shoe delivers superior door bottom sealing performance with its 36" anodized aluminum construction and advanced synthetic rubber polymer blend. Featuring aluminum alloy 6063 T5 temper construction with chloroprene and EPDM rubber blend, this door shoe operates reliably in temperatures from -20 F to 200 F. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold resistance, ensuring dependable weatherproofing for commercial applications.

Professional Features & Benefits

  • 36" Length: Standard door width coverage with anodized aluminum construction for long-lasting durability and corrosion resistance.
  • Temperature Performance: Operates effectively in extreme conditions from -20 F to 200 F for year-round reliability in various climates.
  • Advanced Rubber Blend: Chloroprene and EPDM synthetic rubber polymer provides exceptional abrasion resistance, tensile strength, and memory retention.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold resistance, ensuring code compliance and professional-grade performance.
  • Weather Resistance: Flame resistant and moisture resistant construction with excellent resistance to ozone, sunlight, and aging for extended service life.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation for optimal sealing performance.
  • Complete Hardware: Includes #6 x 3/4" stainless steel sheet metal screws for secure mounting and professional installation.
  • Aluminum Alloy Construction: 6063 T5 temper aluminum provides structural integrity while maintaining lightweight installation characteristics.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Series: Neoprene Door Shoe Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Weatherized Construction

The NGP 15N features comprehensive weather resistance with flame resistant and moisture resistant neoprene construction. The synthetic rubber blend provides excellent resistance to ozone, sunlight, and aging, making it ideal for exterior door applications and demanding environmental conditions.

Why Choose NGP Quality?

NGP door shoes deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and advanced chloroprene/EPDM rubber blend rated for -20 F to 200 F operation. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold resistance, ensuring code compliance and dependable performance. Engineered for demanding commercial applications where consistent weatherproofing and durability are essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Neoprene Door Shoe Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 15NA – Frequently Asked Questions

1) Will this door shoe keep rain from running down the door and under it?
The 15N is a plain shoe with no rain drip. On an exposed exterior door taking wind-driven rain, you want a shoe with a drip cap that throws water clear of the sill, such as the Pemko 211V L-shaped door shoe with rain drip or the Pemko 215, which also carries a rain drip. Under a canopy or on an interior or vestibule door, the 15N is the simpler part.
2) What is a direct alternative to the NGP 15N door shoe if I need a fire-rated door bottom shoe?
The NGP 15N is a neoprene door shoe in anodized aluminum, certified to ANSI/BHMA A156.22 for heat and cold resistance. If the opening requires a fire-rated door bottom shoe, the Pemko 210 is a fire-rated door bottom shoe with an Eco-V insert in 36 inch aluminum construction, and the Pemko 215 is a fire-rated door shoe with a rain drip and Eco-V insert, UL10C certified. Both cover the same door bottom sealing function with a fire rating attached, where the 15N is specified on its A156.22 heat and cold performance.
3) For an exterior door that takes driving rain, is there a door shoe with a drip cap instead of the NGP 15N?
The NGP 15N is a neoprene door shoe with flame resistant and moisture resistant construction rated from -20 F to 200 F, but it seals at the door bottom without a drip. For an exterior opening where water needs to be thrown clear of the sill, the Pemko 211V is an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 is a fire-rated door shoe with a rain drip and Eco-V insert, UL10C certified. Choose on whether the opening also carries a fire rating.
4) What is the difference between a door shoe like the NGP 15N and a surface door sweep?
A door shoe wraps the bottom edge of the door, so the aluminum channel caps the door bottom and the neoprene insert rides on the threshold or sill. A surface sweep only screws to the face of the door. The shoe means taking the door off its hinges to slide it on, but it also protects the raw bottom edge of the door, which is why it gets specified on exterior wood and hollow metal openings. If the door cannot come down, a face-applied sweep is the easier retrofit.
5) Do I need to buy screws to install an NGP 15N door shoe?
Mounting screws come with it, #6 x 3/4 inch stainless steel sheet metal screws. The holes are slotted, so you can set the height of the neoprene against the threshold before you tighten down and get the sweep contacting without dragging. Nothing else is required for a standard install.
6) I manage a portfolio of buildings. Can I standardize on the NGP 15N across all my exterior doors?
It is built for that. The 15N is a commercial-grade part in a single 36 inch stock length that trims to the leaf, in two finishes, with the screws in the box, so one part number covers most of a fleet of 3-0 exterior openings. The exception to carve out is your labeled fire doors, which need a fire-rated shoe like the Pemko 210 or 215, and any door taking direct wind-driven rain, where a rain drip model is the better call.
7) What is a simpler aluminum door shoe if I do not need the temperature rating of the NGP 15N?
The NGP 15N is specified around a chloroprene and EPDM blend rated -20 F to 200 F and certified to ANSI/BHMA A156.22 for heat and cold resistance, which is what you are buying for an exterior or unconditioned opening. On an interior door where that range is not in play, the Cal-Royal DS-403 is a plain aluminum door shoe with a vinyl insert covering the same door bottom sealing job without the temperature performance specification.
8) What is the difference between a neoprene door shoe insert and a vinyl insert?
The NGP 15N uses a chloroprene and EPDM synthetic rubber polymer blend rated for -20 F to 200 F, with resistance to ozone, sunlight, and aging. The vinyl-insert shoes are a different sealing material: the Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, and the Pemko 209, 210, 211V, and 215 all use an Eco-V vinyl insert. On the Pemko 211V that Eco-V insert is GREENGUARD Gold certified, which matters on projects tracking indoor air quality credits. All are door bottom shoes; the insert compound is the variable.
9) I need a low-profile door shoe for a door with tight bottom clearance. What are my options besides the NGP 15N?
The Pemko 209 door shoe with Eco-V vinyl insert carries a 1/2 inch by 1-3/8 inch profile, which is the published dimension to check against your undercut. The NGP 15N is built from 6063 T5 temper aluminum with slotted screw holes, so it can be shifted vertically during mounting to fine-tune the seal against the threshold. If the undercut is fixed and you need a stated profile to size against, the 209 gives you that number outright.
10) Is an L-shaped door shoe the same thing as the NGP 15N?
They are not interchangeable by profile. The Pemko 211V is an L-shaped door shoe, which wraps the door bottom on one face rather than seating the same way a straight shoe does, and it carries a rain drip. The NGP 15N is a neoprene door shoe in anodized aluminum or dark bronze with slotted screw holes for positioning. Confirm the shoe profile against how the door bottom is prepped before ordering one in place of the other.
11) If I am standardizing door bottom shoes across a facility, which of these come in a 36 inch length?
The NGP 15N is supplied in a 36 inch length in anodized aluminum and dark bronze, and includes #6 x 3/4 inch stainless steel sheet metal screws. The Pemko 210 is also built in 36 inch aluminum construction and is fire-rated with an Eco-V insert. For a mixed facility where some openings are rated and some are not, those two share the 36 inch length so the cut and prep stay consistent across doors.
12) What finishes does the NGP 15N neoprene door shoe come in?
Two: clear anodized aluminum and dark bronze. Dark bronze is the one to order if the door bottom needs to disappear against bronze anodized storefront or dark painted hollow metal; clear anodized matches mill-finish aluminum entrances and most standard thresholds.
13) What is the NGP 15N door shoe made of, and will it corrode on an exterior door?
Extruded 6063 T5 temper aluminum alloy with an anodized finish, and the supplied fasteners are stainless steel. That combination is what makes it a normal specification for exterior commercial entrances. The neoprene insert is flame resistant and moisture resistant.
