NGP 26NA Neoprene Door Shoe wi...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$52.50

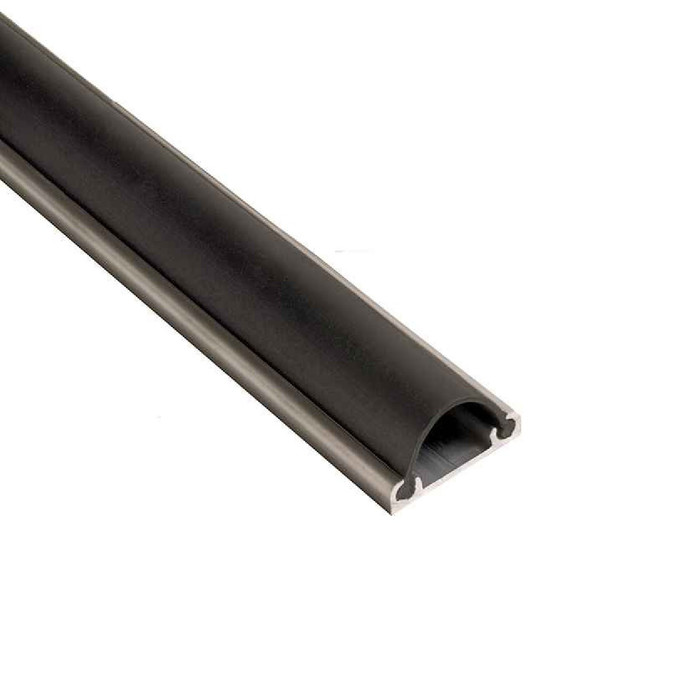

NGP NGP 26NA Neoprene Door Shoe, Anodized Aluminum NGP-26NA

NGP 26NA Neoprene Door Shoe with Anodized Aluminum Construction and BHMA Certification

(No reviews yet) Write a Review

Model: 26NA-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Neoprene Door Shoe with Anodized Aluminum Construction and BHMA Certification

Professional Door Bottom Sealing Solution

The NGP Neoprene Door Shoe combines anodized aluminum construction with synthetic rubber polymer blend technology for superior door bottom sealing performance. Featuring aluminum alloy 6063 T5 temper construction with chloroprene and EPDM rubber blend, this door shoe operates effectively in temperature ranges from -20 F to 200 F. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold resistance, ensuring reliable weatherproofing in demanding commercial applications.

Professional Features & Benefits

  • Temperature Performance Range: Operates reliably from -20 F to 200 F for year-round exterior door applications in varying climate conditions.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold resistance, ensuring compliance with commercial building standards.
  • Premium Material Construction: Aluminum alloy 6063 T5 temper frame with synthetic rubber polymer blend of chloroprene and EPDM for exceptional durability and performance.
  • Superior Rubber Properties: Very good abrasion resistance, tensile strength and memory with flame resistant and moisture resistant characteristics for long-term reliability.
  • Weather Resistance: Good resistance to ozone, sunlight and aging ensures consistent sealing performance in outdoor applications.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation for optimal door bottom sealing.
  • Complete Hardware Package: Includes #6 x 3/4" stainless steel sheet metal screws for secure mounting to door bottom.
  • Professional Finish: Anodized aluminum construction with black neoprene seal provides attractive appearance suitable for commercial applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Series: Neoprene Door Shoe Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Weatherized Construction

The NGP 26NA features moisture resistant construction with good resistance to ozone, sunlight and aging for reliable exterior door applications. The synthetic rubber polymer blend maintains sealing effectiveness across temperature extremes while the anodized aluminum frame resists corrosion in outdoor environments.

Why Choose NGP Quality?

NGP door shoes deliver professional-grade weatherproofing with aluminum alloy 6063 T5 temper construction and BHMA certification to ANSI/BHMA A156.22 performance standards. The synthetic rubber polymer blend provides very good abrasion resistance, tensile strength and memory for long-term sealing reliability. Engineered for demanding commercial applications where consistent door bottom sealing and weather resistance are essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Neoprene Door Shoe Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoe
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 26NA-36 – Frequently Asked Questions

1) What lengths does the NGP 26NA neoprene door shoe come in?
The 26NA is stocked in 36 inch and 48 inch lengths. The 36 inch covers a standard 3-0 commercial door leaf; the 48 inch is for wider openings, and it can be cut down on site to suit a narrower leaf since the shoe is extruded aluminum with slotted screw holes for positioning.
2) Will an NGP 26NA door shoe hold up on an exterior door through winter and summer?
Rated from -20 F to 200 F, so it is built for exterior service in a cold climate as well as a sun-baked south elevation. The seal is a chloroprene and EPDM synthetic rubber blend with good resistance to ozone, sunlight and aging, and the aluminum frame is anodized to resist corrosion outdoors. It is certified to the ANSI/BHMA A156.22 heat and cold resistance tests, so that temperature claim is a tested one rather than a marketing number.
3) Do I need to buy screws separately for the NGP 26NA door shoe?
No. The 26NA ships with #6 x 3/4 inch stainless steel sheet metal screws for mounting to the door bottom. On a hollow metal or wood door that is all you need. The holes are slotted, so you can set the shoe, hang the door, and shift the seal up or down against the threshold before you drive the screws home.
4) What should I use instead of the NGP 26NA on a fire-rated door opening?
Use a shoe that is stated as fire-rated. The Pemko 210 is a fire-rated door bottom shoe with an Eco-V insert in 36 inch aluminum construction, and the Pemko 215 is a fire-rated door shoe with a rain drip and Eco-V insert that is UL10C certified. The NGP 26NA is certified to ANSI/BHMA A156.22 for the heat and cold resistance performance tests, which is a gasketing performance standard rather than a fire-door listing. On a labeled opening where the inspector is checking the door assembly against its listing, specify the 210 or the 215; for a non-labeled exterior door the 26NA's A156.22 certification is the relevant credential.
5) What is a direct equivalent to the NGP 26NA neoprene door shoe from another manufacturer?
The Pemko 209 door shoe is the closest straight equivalent. It is a door bottom shoe with an Eco-V vinyl insert on a 1/2 inch by 1-3/8 inch profile, so it mounts to the door bottom and carries a replaceable seal the same way the 26NA does. The difference is in the seal material and the profile: the 26NA uses a synthetic rubber polymer blend of chloroprene and EPDM rated for -20 F to 200 F on an aluminum alloy 6063 T5 temper extrusion, while the 209 uses Pemko's Eco-V vinyl. If the opening was originally specified with a vinyl insert shoe and you are matching an existing seal stock, the 209 is the like-for-like; if you want the rubber blend and the stated temperature range, stay with the 26NA.
6) I need a door shoe that sheds water away from the threshold. Is the NGP 26NA the right part?
The 26NA is a plain door shoe: an anodized aluminum extrusion with a black neoprene seal, slotted screw holes for adjustment, and moisture resistant construction with good resistance to ozone, sunlight and aging. It does not carry a rain drip. When the opening is exposed and you want the water thrown clear of the sill, the Pemko 211V is an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 pairs a rain drip with a fire-rated shoe. Under a deep canopy or on an interior opening the 26NA's flat profile is the simpler part and avoids the projecting drip.
7) Should I use a door shoe or a surface door sweep on the bottom of my door?
A door shoe like the 26NA wraps the bottom edge of the leaf, so the aluminum extrusion protects the door edge itself and the neoprene bulb rides on the threshold. It needs the door off its hinges (or at least the bottom edge accessible) to fit. A surface sweep screws to the face of the door and goes on with the door hung. Pick the shoe when you want edge protection and a cleaner line on an exterior opening, and when you can pull the leaf.
8) Does the NGP 26NA door shoe have a rain drip for a door that takes driving rain?
The 26NA is a plain neoprene shoe, no rain drip on the extrusion. For an exterior opening with real weather exposure and no overhang, the Pemko 211V is an L-shaped shoe with a rain drip, and the Pemko 215 pairs a rain drip with a fire-rated shoe. If the door is under a canopy or opens to a vestibule, the 26NA on its own is the usual call.
9) What is the difference between an NGP 26NA neoprene shoe and a vinyl insert door shoe?
The seal material is the difference. The 26NA uses a chloroprene and EPDM synthetic rubber blend with very good abrasion resistance, tensile strength and memory, plus flame resistant and moisture resistant properties, and it is rated -20 F to 200 F. The Cal-Royal DS-403 and the Pemko 209 are aluminum shoes with vinyl inserts instead. Vinyl is the common economy insert; the neoprene blend is what you specify when the door sees temperature swings, grit, or heavy traffic that abrades a seal flat.
10) Is the NGP 26NA rated for commercial use or is it a residential grade shoe?
Commercial. NGP builds the 26NA on an aluminum alloy 6063 T5 temper extrusion and certifies it to ANSI/BHMA A156.22, which is the commercial standard for gasketing. It is specified into office buildings, schools, healthcare, retail, warehouses, multi-tenant residential and government facilities. A landlord standardizing bottom seals across a building can run the same shoe on every exterior leaf.
11) Can the NGP 26NA seal a gap if my threshold is worn or uneven?
Within limits. The slotted screw holes let you set the shoe height so the neoprene bears evenly on the threshold, which handles a modest sag or an out-of-level condition. What it will not do is bridge a large or growing gap, since the seal position is fixed once fastened. For a door with a real gap that changes as the leaf settles, an automatic door bottom that drops on close is the correct part rather than a fixed shoe.
12) Is the Cal-Royal DS-403 the same thing as the NGP 26NA?
They fill the same slot on the door but they are not the same part. The Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert. The NGP 26NA is an aluminum door shoe whose insert is a synthetic rubber polymer blend of chloroprene and EPDM, rated -20 F to 200 F and BHMA certified to ANSI/BHMA A156.22 for heat and cold resistance. If you are stocking replacement inserts across a building, the two use different seal stock and are not interchangeable at the insert level, so standardize on one or the other rather than mixing them across a fleet of exterior doors.
13) Which door shoe should I specify when a project requires low-emitting materials documentation?
The Pemko 211V carries a GREENGUARD Gold certified Eco-V insert, which is the one in the group with a stated indoor air quality certification, and it is an L-shaped shoe with a rain drip. The NGP 26NA's stated certification is different in kind: it is BHMA certified to ANSI/BHMA A156.22 for the heat and cold resistance performance tests, which speaks to weather performance rather than emissions. On a project where the submittal package asks for a low-emitting materials credit, the 211V is the shoe that answers it; where the submittal asks for A156.22 gasketing performance, the 26NA does.
14) Can I use a door shoe in place of an automatic door bottom?
No. A door shoe such as the NGP 26NA fastens to the face of the door bottom and holds a seal in constant contact with the sill or threshold; the Pemko 209, 210, 211V and 215 are all door bottom shoes of the same kind. An automatic door bottom retracts its seal as the door swings open and drops it only when the door closes, which is what you want over finish flooring or where the seal would drag. If the opening has a threshold and clearance for a fixed seal, the 26NA is the correct part; if the requirement is a seal that lifts clear, a shoe of any brand will not do it.
15) Will an anodized aluminum door shoe match my existing aluminum storefront doors?
The 26NA is anodized aluminum with a black neoprene seal, which is the standard look on clear anodized aluminum entrances and dark bronze frames alike. On a painted hollow metal door the aluminum will read as a bright line at the bottom edge, so if the openings in a building are mixed, expect the shoe to be visible on the painted leaves and blend on the aluminum ones.
16) What is the simplest door shoe to use on an interior commercial opening?
A flat shoe without a drip is the simpler part on any opening that is not taking direct weather. The NGP 26NA is a straight anodized aluminum shoe with a black neoprene seal and slotted screw holes, and it ships with #6 x 3/4 inch stainless steel sheet metal screws, so it goes on the door bottom with nothing else to source. The Cal-Royal DS-403 is likewise a plain aluminum door shoe with a vinyl insert. The L-shaped Pemko 211V and the rain drip on the Pemko 215 add a projecting leg that earns its keep outdoors and gets in the way on a corridor or stair door.
