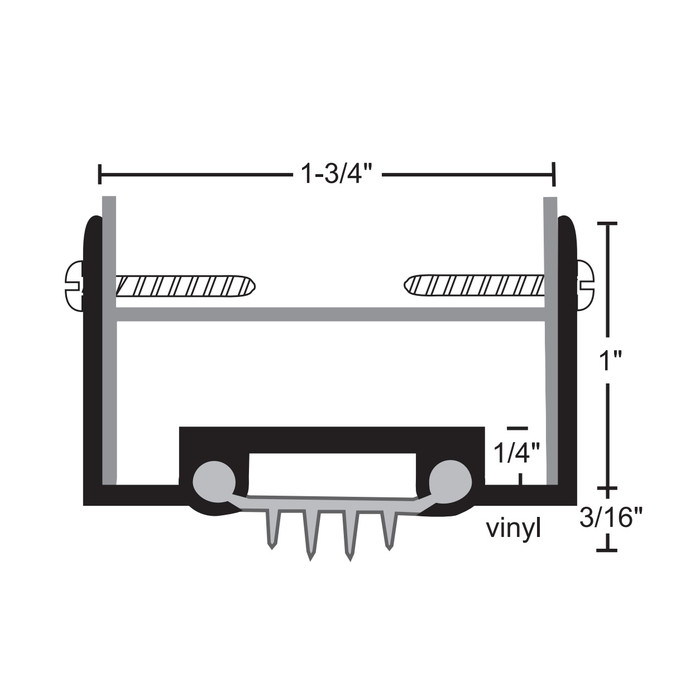

NGP 35VA Door Shoe with Anodized Aluminum Construction and PVC Seal

NGP 35VA Door Shoe with Anodized Aluminum Construction and PVC Seal

(No reviews yet) Write a Review

Model: 35VA-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Door Shoe with Anodized Aluminum Construction and PVC Seal

Professional Door Bottom Sealing Solution

The NGP Door Shoe delivers reliable door bottom sealing with anodized aluminum construction and thermoplastic PVC seal material. Engineered with aluminum alloy 6063 T5 temper for durability and featuring an environmentally friendly bio-based plasticizer formulation. Operating temperature range of 0 F to 140 F accommodates diverse climate conditions while maintaining flame and moisture resistance for commercial applications.

Professional Features & Benefits

  • Temperature Performance: Operates reliably from 0 F to 140 F for year-round performance in varying climate conditions.
  • Durable Aluminum Construction: Aluminum alloy 6063 T5 temper provides exceptional strength and corrosion resistance with anodized finish protection.
  • Environmentally Conscious Materials: Thermoplastic PVC formulated with bio-based plasticizer reduces environmental impact while maintaining performance.
  • Multi-Hazard Resistance: Flame resistant and moisture resistant properties protect against common environmental challenges.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation.
  • Complete Hardware Package: Includes #6 x 3/4" stainless steel SMS screws for secure mounting and long-term reliability.
  • Professional Appearance: Black vinyl seal with anodized aluminum housing provides clean, professional aesthetics.
  • Economical Solution: Cost-effective sealing performance for commercial door bottom applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Series: Neoprene Door Shoe Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door shoes deliver professional-grade sealing performance with aluminum alloy 6063 T5 temper construction and flame-resistant, moisture-resistant PVC seal materials. Temperature-tested from 0 F to 140 F with environmentally conscious bio-based plasticizer formulation. Engineered for demanding commercial applications where reliable door bottom sealing and professional appearance are essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Neoprene Door Shoe Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 35VA-36 – Frequently Asked Questions

1) What lengths does the NGP 35VA door shoe come in?
The 35VA door shoe is stocked in 36 inch and 42 inch lengths. The 36 inch covers a standard 3-0 commercial door leaf; the 42 inch is for wider openings or for cutting down to an odd width on site. Aluminum extrusion like this is routinely cut to length with a miter saw, so order the length at or above your door width and trim.
2) Will this door shoe hold up on an exterior door in a cold climate?
Rated service range is 0 F to 140 F, and the PVC seal is moisture resistant, so it handles most exterior commercial use. In hard driving rain you want a drip edge as well, which this shoe does not have; the Pemko 211V is an L-shaped shoe with an integral rain drip for that case.
3) Can I use the NGP 35VA door shoe on a fire-rated opening?
The NGP 35VA is described as a commercial door bottom seal with a flame resistant PVC insert, but if your drawing calls for a fire-rated door bottom shoe, specify a part that is listed as such. The Pemko 210 is a fire-rated door bottom shoe with an Eco-V insert in 36 inch aluminum construction, and the Pemko 215 is a fire-rated door shoe with rain drip and Eco-V insert that is UL10C certified. For a rated opening in a healthcare or institutional facility, the 215 is the one to quote when the inspector wants a UL10C reference.
4) What is the closest equivalent to the NGP 35VA door shoe from another manufacturer?
The NGP 35VA is an aluminum door shoe with a vinyl seal, sold in 36 inch and 42 inch lengths. The nearest like-for-like part is the Cal-Royal DS-403 aluminum door shoe with vinyl insert, which uses the same aluminum housing plus vinyl insert construction. The Pemko 209 is also a door bottom shoe and carries an Eco-V vinyl insert on a 1/2 inch by 1-3/8 inch profile, so if you are matching a specific shoe height on the door face, the 209 gives you a published profile dimension to check against the opening.
5) What should I use instead of the NGP 35VA on an exterior door that gets driving rain?
The NGP 35VA is a moisture resistant aluminum shoe with a PVC seal, but it does not carry a rain drip. On an exposed exterior opening, a shoe with an integral drip diverts water off the face of the door before it reaches the sweep line. The Pemko 211V is an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 combines a rain drip with a fire rating and UL10C certification. Choose the 211V for a non-rated exterior opening and the 215 where the exterior door is also rated.
6) What is the NGP 35VA door shoe made of and will it corrode?
Extruded 6063 T5 aluminum with an anodized finish, fitted with a thermoplastic PVC seal. The anodizing plus stainless steel fasteners is what keeps it from streaking or seizing on exterior and washdown openings.
7) Door shoe or door sweep, which should I use on the bottom of my door?
A shoe like the 35VA wraps the bottom edge of the door and carries the vinyl seal in a channel underneath, so it protects the door edge as well as sealing the gap, and it is the right call on exterior and high traffic commercial leaves. A surface sweep just screws to the face of the door and is quicker but leaves the door bottom exposed. Where the gap under the door varies or you need a seal that lifts clear of carpet, an automatic door bottom is the better choice.
8) Can I use the NGP 35VA to replace a Cal-Royal or Pemko aluminum door shoe?
It is the same class of part: aluminum shoe with a vinyl insert, like the Cal-Royal DS-403 and the Pemko 209. Whether it drops onto your existing screw pattern depends on the profile you are pulling off, so measure the old shoe's leg height and the gap to the threshold first. If you are matching a Pemko 209 specifically, that one is a 1/2 inch by 1-3/8 inch profile.
9) For a LEED or low-emitting materials submittal, how does the NGP 35VA compare to other door shoes?
The NGP 35VA uses a thermoplastic PVC seal formulated with a bio-based plasticizer, which is the sustainability point NGP publishes for it. If your submittal specifically requires third-party indoor air quality certification, the Pemko 211V carries a GREENGUARD Gold certified Eco-V insert, which gives a named certification to reference on the form. Both are aluminum-housed door bottom shoes, so the substitution does not change the install approach.
10) I need a 42 inch door shoe - do the Pemko alternatives cover that width?
The NGP 35VA is offered in 36 inch and 42 inch lengths, so a 42 inch leaf is covered without field cutting. Among the comparable shoes, the Pemko 210 fire-rated door bottom shoe is published at 36 inch aluminum construction. If you are standardizing a run of 42 inch openings, the 35VA is the one that ships at that length; aluminum shoes are commonly cut down on site, so confirm the stock length before you order a shorter part for a wide leaf.
11) Is a door shoe the same thing as a door sweep, and which of these is which?
A door shoe wraps the bottom edge of the door with an aluminum channel that captures a vinyl or neoprene insert, while a sweep fastens flat to the face of the door. The NGP 35VA is a door shoe, with slotted screw holes and #6 x 3/4 inch stainless steel sheet metal screws included for mounting to the door bottom. The Cal-Royal DS-403, Pemko 209, Pemko 210, Pemko 211V and Pemko 215 are all door bottom shoes as well, so any of them is a shoe-for-shoe swap rather than a sweep substitution. If the existing hardware is screwed to the door face, you are replacing a sweep and none of these is the direct match.
12) Is this the right door bottom for a school or hospital corridor door?
Yes, it is specified for commercial use and is in service in offices, schools, healthcare, retail, warehouses, multi-tenant residential and government buildings. For fleets of doors it is worth standardizing on the same shoe and seal so replacement vinyl matches across the building. Note that labeled corridor doors need a fire-rated shoe instead.
13) Is there a low-VOC or green-building version of this door shoe?
The 35VA seal is PVC made with a bio-based plasticizer, which is NGP's environmentally conscious formulation. If your project needs a third-party certification on the insert, the Pemko 211V uses a GREENGUARD Gold certified Eco-V insert.
