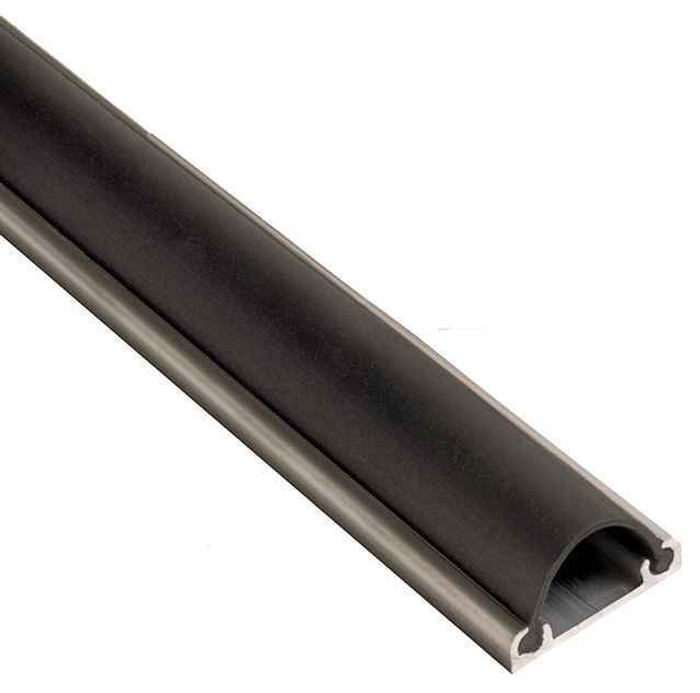

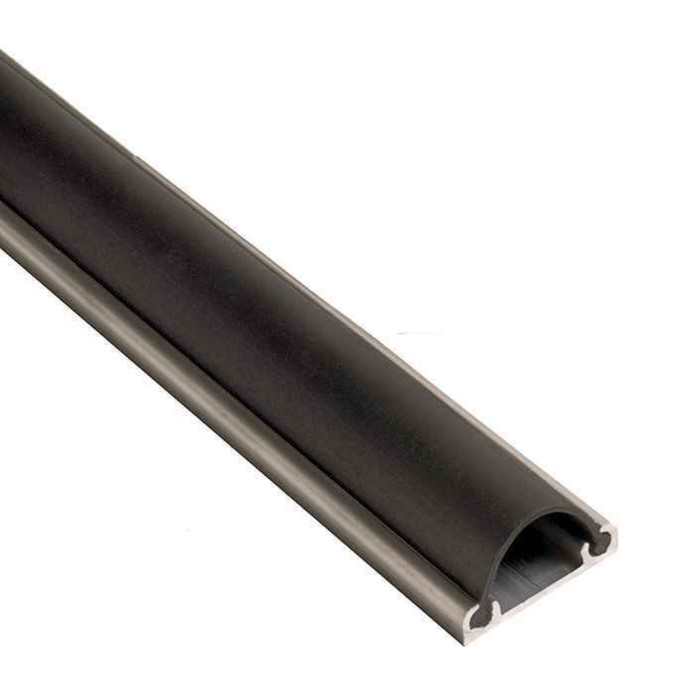

NGP 26NDKB Neoprene Door Shoe with Anodized Aluminum Construction and EPDM Rubber Seal

NGP 26NDKB Neoprene Door Shoe with Anodized Aluminum Construction and EPDM Rubber Seal

(No reviews yet) Write a Review

Model: 26NDKB-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$74.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Neoprene Door Shoe with Anodized Aluminum Construction and EPDM Rubber Seal

Professional Door Bottom Sealing Solution

The NGP Neoprene Door Shoe delivers superior door bottom sealing performance with aluminum alloy 6063 T5 temper construction and synthetic EPDM rubber in polypropylene thermoplastic matrix. This commercial-grade door shoe operates effectively in temperature ranges from -81 F to 275 F and features BHMA certification to ANSI/BHMA A156.22 performance tests for heat and cold. The dark bronze anodized aluminum finish with black EPDM rubber provides professional appearance and long-lasting durability for demanding commercial applications.

Professional Features & Benefits

  • Temperature Performance: Operates reliably from -81 F to 275 F for extreme climate applications and seasonal temperature variations.
  • Premium Construction Materials: Aluminum alloy 6063 T5 temper frame with synthetic EPDM rubber in polypropylene thermoplastic matrix for exceptional durability.
  • Superior Seal Performance: Very good abrasion resistance, tensile strength and memory properties maintain effective sealing over extended service life.
  • Weather Resistance: Flame-resistant and moisture-resistant design with good resistance to ozone, sunlight and aging for outdoor applications.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold ensuring reliable performance standards.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation with included #6 x 3/4" stainless steel SMS fasteners.
  • Professional Finish: Dark bronze anodized aluminum with black EPDM rubber provides attractive appearance suitable for commercial applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Series: Neoprene Door Shoe Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door shoes deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and BHMA certification to ANSI/BHMA A156.22 performance standards. The synthetic EPDM rubber seal material provides very good abrasion resistance, tensile strength and memory for long-term sealing effectiveness. Engineered for demanding commercial applications where dependable weather sealing and temperature performance from -81 F to 275 F is essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Neoprene Door Shoe Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 26NDKB-36 – Frequently Asked Questions

1) What lengths does the NGP 26NDKB door shoe come in?
The 26NDKB neoprene door shoe is sold in 36 inch and 48 inch lengths. The 36 inch size covers a standard single commercial door leaf; the 48 inch is for wider openings or can be cut down on site. Aluminum extrusion like this is field-cuttable with a miter saw, so order the length at or above your door width.
2) Do I get mounting screws with the NGP 26NDKB door shoe, or do I need to buy them separately?
Fasteners are included. The 26NDKB ships with #6 x 3/4 inch stainless steel sheet metal screws, and the shoe is punched with slotted screw holes so you can shift it up or down to set the sweep height against the threshold before you tighten down.
3) Is the NGP 26NDKB door shoe certified to any standard for a spec job?
It is BHMA certified to the ANSI/BHMA A156.22 performance tests for heat and cold. That is the door gasketing and edge seal standard, so it is the line to cite when a submittal calls out A156.22 gasketing on a commercial opening.
4) What is the closest equivalent to the NGP 26NDKB door shoe if I need a fire-rated one?
The NGP 26NDKB is a neoprene door shoe with aluminum alloy 6063 T5 temper construction and an EPDM rubber seal, BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold. If the opening requires a fire-rated door bottom shoe, the Pemko 210 is a fire-rated door bottom shoe with an Eco-V insert in 36 inch aluminum construction, and the Pemko 215 is a fire-rated door shoe with rain drip and Eco-V insert that is UL10C certified. Both keep the same aluminum-plus-insert form factor, so the mounting approach at the door bottom is comparable.
5) For an exterior door that takes driving rain, is the NGP 26NDKB the right shoe or is there a better choice?
The NGP 26NDKB uses an EPDM rubber seal that is moisture resistant with good resistance to ozone, sunlight and aging, so it suits exterior service. What it does not add is a rain drip. If the opening needs water shed away from the sill face, the Pemko 211V is an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 combines a rain drip with a fire-rated, UL10C certified shoe.
6) For a walk-in freezer vestibule or an unheated warehouse door, does the NGP 26NDKB hold up better than a vinyl-insert shoe?
The NGP 26NDKB uses synthetic EPDM rubber in a polypropylene thermoplastic matrix rated from -81 F to 275 F, with very good abrasion resistance, tensile strength and memory, and it is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold. The comparable shoes in the same size class use vinyl inserts instead, including the Cal-Royal DS-403 and the Pemko 209 with its Eco-V vinyl insert, so the seal chemistry is the deciding difference for an extreme-temperature opening.
7) Will a neoprene/EPDM door shoe hold up on an exterior door in hard winters or desert heat?
Yes. The 26NDKB is rated for service from -81 F to 275 F and the EPDM seal has good resistance to ozone, sunlight and aging, plus it is flame resistant and moisture resistant. That combination is what you want on an exterior opening that sees freeze-thaw or direct sun all day.
8) What finish is the NGP 26NDKB, and will it match dark bronze hardware on the rest of my openings?
The extrusion is dark bronze anodized aluminum with a black EPDM insert, so it reads dark against a bronze or black frame rather than showing a bright mill-finish line at the bottom of the door. If your other openings are anodized bronze, this matches that family.
9) What is the difference between a door shoe like this and a surface door sweep?
A door shoe wraps the bottom edge of the door, so the extrusion covers the door bottom itself and carries the seal underneath. A sweep just screws to the face of the door above the bottom edge. The shoe protects the door bottom from water and abrasion as well as sealing, which is why it is the usual choice on exterior and wet-location commercial doors. The 26NDKB is the commercial-duty version of that part.
10) My exterior door gets driving rain. Should I use the NGP 26NDKB or something with a rain drip?
The 26NDKB is a straight neoprene/EPDM shoe with no drip bar. On a door taking wind-driven rain you generally want a shoe with an integral rain drip to throw water clear of the seal line. The Pemko 211V is an L-shaped shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 pairs a rain drip with a UL10C listing.
11) What is the seal insert on the NGP 26NDKB made of, and how does it compare to a vinyl insert shoe?
The insert is synthetic EPDM rubber in a polypropylene thermoplastic matrix, with very good abrasion resistance, tensile strength and memory, meaning it recovers its shape after the door drags over it repeatedly. Vinyl-insert shoes are the common alternative, such as the Cal-Royal DS-403 aluminum door shoe with vinyl insert or the Pemko 209 with an Eco-V vinyl insert. Choose EPDM where temperature swings and UV exposure are the issue.
12) What is a simpler door shoe than the NGP 26NDKB for a basic interior opening?
The NGP 26NDKB is a commercial-grade shoe with an EPDM rubber seal rated from -81 F to 275 F and BHMA certification to ANSI/BHMA A156.22. For an interior opening that does not need that temperature range, the Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, and the Pemko 209 is a door bottom shoe with an Eco-V vinyl insert in a 1/2 inch by 1-3/8 inch profile. Both are plain aluminum-and-insert shoes without a rain drip.
13) Will a Pemko 209 drop in where an NGP 26NDKB door shoe was?
They are not interchangeable without checking the profile. The Pemko 209 is a door bottom shoe with an Eco-V vinyl insert in a 1/2 inch by 1-3/8 inch profile, while the NGP 26NDKB is supplied in 36 inch and 48 inch lengths with slotted screw holes and #6 x 3/4 inch stainless steel SMS fasteners. Confirm the undercut at the sill and the fastener pattern in the door bottom before swapping, since the seal material also differs: EPDM rubber on the 26NDKB versus a vinyl insert on the 209.
14) Which door shoe should I specify if my project requires a low-emitting materials credit?
The NGP 26NDKB carries BHMA certification to ANSI/BHMA A156.22 performance tests for heat and cold, which speaks to sealing performance rather than material emissions. Where the submittal calls for a low-emitting materials credit, the Pemko 211V uses a GREENGUARD Gold certified Eco-V insert and is an L-shaped shoe with a rain drip.
15) Is the NGP 26NDKB tough enough for a high-traffic school or warehouse door?
It is built as commercial-grade hardware: 6063 T5 temper aluminum alloy body with an EPDM seal rated for abrasion and memory, and NGP lists it for office buildings, schools, healthcare, retail, industrial and warehouse, multi-tenant residential and government facilities. For a fleet of openings in one building it standardizes cleanly since it comes in just two lengths and one finish.
