NGP NGP 92NHWA Extended Door Shoe with Nylon Brush and Neoprene Inserts, 36" , Anodized Aluminum NGP-92NHWA 36

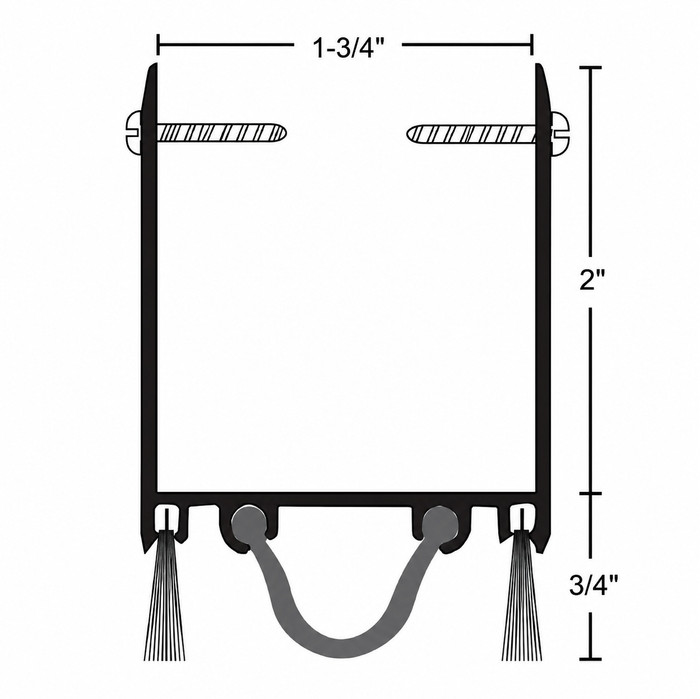

NGP 92NHWA 36 Extended Door Shoe with Nylon Brush and Neoprene Inserts - Anodized Aluminum

(No reviews yet) Write a Review

Model: 92NHWA 36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$150.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Extended Door Shoe with Nylon Brush and Neoprene Inserts - Anodized Aluminum

Professional Weather Sealing Solution

The NGP Extended Door Shoe combines durable anodized aluminum construction with nylon brush and neoprene inserts for comprehensive door bottom sealing. This commercial-grade door shoe features aluminum alloy 6063 T5 temper construction with synthetic rubber polymer blend inserts providing excellent weather resistance. The dual-material design offers superior sealing performance with temperature range from -20 F to 200 F for demanding commercial applications.

Professional Features & Benefits

  • Dual-Material Sealing System: Nylon brush and neoprene inserts provide comprehensive sealing against air, moisture, and debris infiltration.
  • Heavy-Duty Aluminum Construction: Aluminum alloy 6063 T5 temper with anodized finish delivers exceptional durability and corrosion resistance for long-term performance.
  • Wide Temperature Range: Operates effectively from -20 F to 200 F maintaining seal integrity across extreme temperature variations.
  • Superior Material Properties: Synthetic rubber polymer blend (Chloroprene and EPDM) offers excellent abrasion resistance, tensile strength, and memory retention.
  • Weather-Resistant Design: Flame resistant and moisture resistant materials with good resistance to ozone, sunlight, and aging for outdoor applications.
  • Complete Installation Hardware: Includes #6 x 3/4" stainless steel SMS fasteners for secure mounting and professional installation.
  • Professional Appearance: Anodized aluminum finish with black neoprene and gray nylon brush provides clean, professional aesthetics.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door shoes deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and synthetic rubber polymer blend materials engineered for demanding commercial applications. The dual-material sealing system provides superior weather resistance with temperature performance from -20 F to 200 F. Engineered for demanding commercial applications where dependable weather sealing and long-term durability are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 92NHWA 36 – Frequently Asked Questions

1) What is the difference between a nylon brush door shoe and a vinyl insert door shoe?
The 92NHWA carries both a nylon brush and neoprene inserts, so it sweeps and seals at the same time. Brush handles uneven or rough thresholds and sills, and it sheds grit instead of dragging it, which is why it holds up on exterior and warehouse openings. A solid vinyl insert like the one on the Pemko 209 or the Cal-Royal DS-403 gives a tighter continuous contact seal on a flat, true threshold but wears faster if it's scrubbing over an irregular surface. Pick brush where the floor or sill is imperfect or where debris is the problem, vinyl where you want maximum air seal on a clean sill.
2) Can I use the NGP 92NHWA door shoe on an exterior door in a cold climate?
Yes. The 92NHWA is rated for service from -20 F to 200 F, so it holds seal integrity through a northern winter and through summer heat load on a south-facing metal door. The insert material is a synthetic rubber polymer blend of chloroprene and EPDM with good resistance to ozone, sunlight, and aging, which is what matters for a part sitting in UV and weather year round.
3) Does the NGP 92NHWA door shoe have a rain drip for a door with no overhang?
No rain drip on the 92NHWA. It's an extended shoe with a nylon brush and neoprene inserts, so on an unprotected exterior opening water running down the door face will reach the sill. If the door has no canopy or overhang, look at a shoe with a drip built in, such as the Pemko 211V L-shaped door shoe with rain drip or the fire-rated Pemko 215 with rain drip.
4) The NGP 92NHWA is going on a fire-rated door. What should be used instead?
Use a door shoe that is itself fire-rated for that opening. The Pemko 210 is a fire-rated door bottom shoe with an Eco-V insert in 36 inch aluminum construction, and the Pemko 215 is a fire-rated door shoe with a rain drip and Eco-V insert carrying UL10C certification. On a labeled opening the shoe has to match the label, so the 210 or the 215 is the substitution to make rather than adapting the 92NHWA.
5) What is the difference between the NGP 92NHWA door shoe and the Pemko 209 door shoe?
Both are aluminum door bottom shoes that mount to the face of the door bottom, but they seal differently. The NGP 92NHWA carries a nylon brush together with neoprene inserts, a dual-material seal built from a chloroprene and EPDM synthetic rubber blend rated from -20 F to 200 F. The Pemko 209 uses a single Eco-V vinyl insert and runs a 1/2 inch by 1-3/8 inch profile. Choose the 92NHWA where the threshold is uneven or the opening sees blowing dust and debris and the brush filament helps close the gap; choose the 209 where a compact profile and a simple vinyl wiper are what the opening calls for.
6) What door shoe should be used instead of the NGP 92NHWA on an exterior door that takes driving rain?
Look at a shoe with a rain drip. The Pemko 211V is an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 pairs a rain drip with an Eco-V insert and UL10C certification. The drip leg throws water clear of the shoe and the threshold. The NGP 92NHWA seals with a nylon brush and neoprene inserts in anodized aluminum and does not carry a drip leg, so on a weather-exposed opening the 211V or 215 is the closer fit.
7) Does the NGP 92NHWA door shoe come with mounting screws, or do I need to supply my own fasteners?
Screws are in the box. The 92NHWA ships with #6 x 3/4 inch stainless steel sheet metal screws for mounting the shoe to the door bottom. Stainless is the right call on an exterior opening, since the shoe itself is anodized aluminum and you don't want a plated steel screw rusting streaks down the face of the door.
8) Is the NGP 92NHWA door shoe strong enough for a high-traffic commercial entrance?
It's built for commercial duty. The body is 6063 aluminum alloy in T5 temper with an anodized finish, which is the standard extrusion for architectural door hardware and gives corrosion resistance without paint to chip. The insert blend is specified for abrasion resistance, tensile strength, and memory retention, meaning the seal recovers its shape rather than taking a set after repeated door swings. It's used on office buildings, schools, healthcare facilities, retail, warehouses, multi-tenant residential, and municipal buildings.
9) Will a door shoe fix a gap under my door, or do I need a door sweep or automatic door bottom?
A door shoe like the 92NHWA wraps the bottom edge of the door and carries the seal in a channel, so it's a permanent, protected assembly that suits exterior and heavy-traffic openings. It fastens through the door face, so the door usually comes off the hinges to fit it. A surface door sweep screws to one face only and is faster to retrofit but sits exposed. An automatic door bottom retracts when the door opens, so it's the choice when the seal would otherwise drag on carpet or an uneven floor. For a standard commercial exterior leaf over a flat sill, the shoe is the durable answer.
10) Can I use the NGP 92NHWA door shoe to seal out dust and insects in a warehouse?
That's a good use for it. The dual nylon brush and neoprene arrangement blocks air, moisture, and debris infiltration, and the brush element in particular keeps working over the swept concrete and slightly out-of-level slabs you get in industrial and warehouse buildings. The materials are also flame resistant and moisture resistant.
11) Is the Cal-Royal DS-403 an equivalent to the NGP 92NHWA door shoe?
They serve the same opening but not with the same seal. The Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert. The NGP 92NHWA is an anodized aluminum shoe built from 6063 T5 alloy that carries both a nylon brush and neoprene inserts, a synthetic rubber blend rated -20 F to 200 F with resistance to ozone, sunlight and aging. Where the existing shoe is a vinyl-insert unit and the replacement only has to wipe a flat, even threshold, the DS-403 covers it; where the sweep has to bridge an irregular slab or hold up to freeze and heat swings, the brush-and-neoprene 92NHWA is the different tool.
12) For a facility standardizing door bottom seals on sustainability criteria, how does the NGP 92NHWA compare to the Pemko 211V?
The Pemko 211V is the one to look at if a certification is part of the specification. It is an L-shaped door shoe whose Eco-V insert is GREENGUARD Gold certified, and it includes a rain drip. The NGP 92NHWA is specified on material performance instead: anodized 6063 T5 aluminum with a nylon brush and neoprene inserts in a chloroprene and EPDM blend that is flame resistant and moisture resistant, holding seal from -20 F to 200 F. On a project where the submittal calls out a certified low-emitting product, the 211V answers that line directly.
13) Does the NGP 92NHWA use the same insert material as the Pemko door shoes?
No, and it matters when matching what is already on a fleet of doors. The Pemko 209, 210, 211V and 215 all seal with an Eco-V vinyl insert. The NGP 92NHWA seals with a nylon brush plus neoprene inserts, a synthetic rubber polymer blend of chloroprene and EPDM chosen for abrasion resistance, tensile strength and memory retention. A replacement insert for one will not serve the other, so order the insert against the shoe brand actually on the door.
14) What color is the NGP 92NHWA door shoe and will it match aluminum storefront doors?
Anodized aluminum, so it reads as the same clear silver finish as a standard aluminum storefront frame or door rail. The neoprene insert is black and the nylon brush is gray, both of which sit at the very bottom of the door where they're out of sight line. Anodized aluminum is the only finish offered on this shoe.
