NGP 92NWHA 36 Extended Door Sh...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$123.98

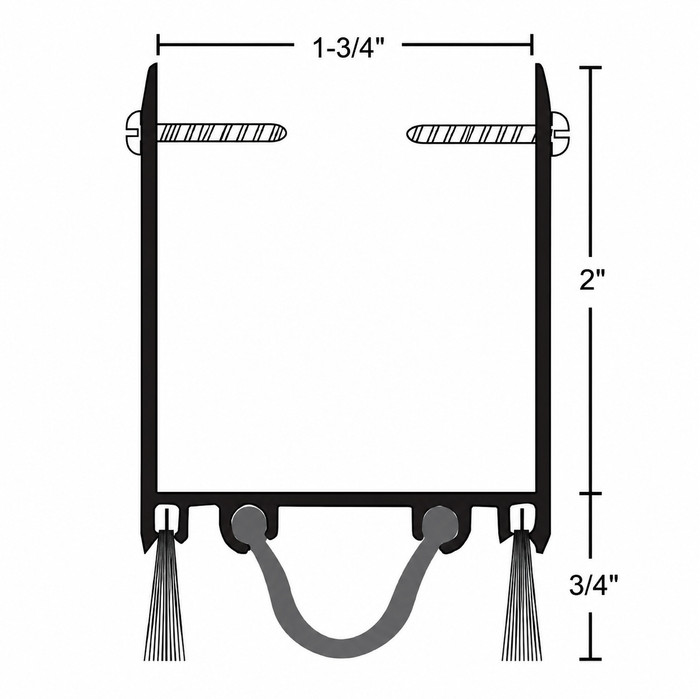

NGP 92NWHA 36 Extended Door Shoe with Neoprene Seal and Nylon Brush - 36" Satin Aluminum Clear Anodized

NGP 92NWHA 36 Extended Door Shoe with Neoprene Seal and Nylon Brush - 36" Satin Aluminum Clear Anodized

(No reviews yet) Write a Review

Model: 92NWHA 36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$123.98
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Extended Door Shoe with Neoprene Seal and Nylon Brush - 36" Satin Aluminum Clear Anodized

Professional Door Bottom Sealing Solution

The NGP Extended Door Shoe combines advanced neoprene sealing technology with durable nylon brush construction for comprehensive door bottom protection. This 36" door shoe features aluminum alloy 6063 T5 temper construction with synthetic EPDM rubber in polypropylene thermoplastic matrix, providing exceptional performance across temperature ranges from -70 F to 275 F. The satin aluminum clear anodized finish delivers long-lasting durability for commercial door applications.

Professional Features & Benefits

  • 36" Length: Standard door width coverage with extended design for enhanced sealing performance in commercial applications.
  • Dual Sealing Technology: Combines neoprene seal with nylon brush for superior protection against air infiltration, moisture, and debris.
  • Extreme Temperature Performance: Operates reliably from -70 F to 275 F for versatile installation environments and climate conditions.
  • Premium Construction Materials: Aluminum alloy 6063 T5 temper construction with synthetic EPDM rubber provides exceptional durability and longevity.
  • Superior Material Properties: Very good abrasion resistance, tensile strength and memory with flame-resistant and moisture-resistant characteristics.
  • Weather Resistance: Good resistance to ozone, sunlight and aging ensures consistent performance in exterior applications.
  • Complete Installation Hardware: Includes #6 x 3/4" stainless steel SMS fasteners for secure mounting and professional installation.
  • Professional Finish Options: Satin aluminum clear anodized finish with black neoprene seal and gray nylon brush for clean, professional appearance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP Extended Door Shoes deliver professional-grade sealing performance with aluminum alloy 6063 T5 temper construction and synthetic EPDM rubber technology rated for extreme temperature operation from -70 F to 275 F. The flame-resistant and moisture-resistant design with good resistance to ozone, sunlight and aging ensures reliable long-term performance. Engineered for demanding commercial applications where dependable door bottom sealing is essential for energy efficiency and environmental control.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 92NWHA 36 – Frequently Asked Questions

1) My exterior door takes driving rain. Is a plain door shoe enough or do I need a rain drip?
The NGP 92NWHA is a straight extended shoe with a neoprene seal and brush, no integral drip. On a weather-exposed leaf where water runs down the face and wicks under the door, a shoe with a drip does more: the Pemko 211V is an L-shaped door shoe with rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 pairs a rain drip with its Eco-V insert. Use the 92NWHA on protected or interior-side openings and where you want the brush for grit.
2) I need a door shoe on a fire-rated opening - can I use the NGP 92NWHA?
For a labeled fire door, the Pemko 210 is a fire-rated door bottom shoe in 36 inch aluminum construction, and the Pemko 215 is a fire-rated door shoe carrying UL10C certification. The NGP 92NWHA is built for commercial door bottom sealing with a neoprene seal and nylon brush in aluminum alloy 6063 T5. When the drawing calls for a labeled assembly, specify from the fire-rated models so the shoe matches the door label.
3) What is the closest equivalent to the NGP 92NWHA door shoe from another brand?
The Pemko 209 door shoe is the nearest straight equivalent in an aluminum door shoe with an insert seal, carrying a 1/2 inch x 1-3/8 inch profile. The NGP 92NWHA is an extended aluminum door shoe that pairs a neoprene seal with a nylon brush, so it delivers two sealing elements at the door bottom where the Pemko 209 uses a single Eco-V vinyl insert. Both mount to the face of the door bottom in the same way.
4) What is the difference between a door shoe and a door sweep?
A door shoe like the NGP 92NWHA wraps the bottom edge of the door leaf and carries the seal underneath, so the seal rides directly over the threshold. A surface sweep mounts flat on the face of the door instead. The shoe means taking the door down and off its hinges to slide the extrusion on; a sweep goes on with the door hung. Buyers put shoes on exterior and heavy-traffic commercial openings where the seal takes abuse, since the aluminum body protects the bottom edge as well as sealing it.
5) Does the NGP 92NWHA door shoe come with mounting screws?
Fasteners are in the box: #6 x 3/4 inch stainless steel sheet metal screws. Stainless matters on an exterior opening, since a plated screw in a wet threshold detail rusts and stains the aluminum. Nothing else is needed to hang it beyond a drill and the door off its hinges.
6) Why does the NGP 92NWHA have both a neoprene seal and a nylon brush?
Two sealing elements doing different jobs. The neoprene wiper closes the gap against air and water at the threshold. The gray nylon brush sweeps debris and takes the wear from dragging across a rough or uneven floor, which keeps the rubber from being scrubbed off in the first season. On a warehouse or loading-side door where grit is the failure mode, that brush is the reason to pick this over a plain vinyl-insert shoe.
7) Will an aluminum door shoe hold up on a cold-storage or boiler room door?
The 92NWHA seal material is rated from -70 F to 275 F, so freezer vestibules and mechanical rooms are both inside its range. Body is 6063 T5 aluminum with a synthetic EPDM rubber in a polypropylene thermoplastic matrix, and it is flame resistant and moisture resistant, with good resistance to ozone, sunlight and aging for exterior use.
8) What is a lower-cost alternative to the NGP 92NWHA door shoe for an interior opening?
Where the brush and the wide temperature range are not doing anything, a simpler vinyl-insert shoe covers it. The Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, and the Pemko 209 is a door shoe with an Eco-V vinyl insert on a 1/2 inch x 1-3/8 inch profile. The 92NWHA earns its place on exterior, abrasive, or extreme-temperature openings.
9) Is there a simpler door shoe than the NGP 92NWHA for interior doors that just need a basic sweep?
For a plain interior opening, the Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, and the Pemko 209 is an aluminum shoe with an Eco-V vinyl insert on a 1/2 inch x 1-3/8 inch profile. Both are single-insert shoes. The NGP 92NWHA adds a nylon brush alongside its neoprene seal, which is aimed at blocking air infiltration, moisture and debris in commercial applications rather than interior door bottoms that only need a light seal.
10) My spec calls for a low-emitting or sustainable seal material - which door shoe meets that?
The Pemko 211V carries a GREENGUARD Gold certified Eco-V insert, which is the one in the group with a stated low-emissions certification for the seal material. The NGP 92NWHA uses a synthetic EPDM rubber in a polypropylene thermoplastic matrix with a black neoprene seal and gray nylon brush, chosen for abrasion resistance, tensile strength and memory. If the submittal is being reviewed against an indoor air quality credit, the 211V is the one to put forward.
11) Is the Pemko 210 a drop-in replacement for the NGP 92NWHA on a 36 inch door?
Both cover a 36 inch door width - the Pemko 210 is a 36 inch aluminum door bottom shoe and the NGP 92NWHA is supplied in a 36 inch length. They are not identical parts, though. The Pemko 210 is fire-rated and seals with an Eco-V insert, while the NGP 92NWHA is an extended shoe combining a neoprene seal with a nylon brush and shipping with #6 x 3/4 inch stainless steel SMS fasteners. Confirm the door bottom clearance and the label requirement before swapping one for the other.
12) What finish is the NGP 92NWHA door shoe and will it match my aluminum storefront?
Clear anodized satin aluminum, which is the standard mill-finish match for aluminum storefront and hollow metal frames finished in aluminum. The seal is black and the brush is gray, so the visible line under the door reads dark rather than silver.
13) Is the NGP 92NWHA rated for commercial traffic or is it a residential part?
Commercial. It is built for office buildings, schools, healthcare, retail, industrial and warehouse space, multi-tenant residential, and government buildings, with a 6063 T5 aluminum body and stainless fasteners rather than the plated steel and thin vinyl of a residential sweep.
