NGP 92NWHDKB 36 Extended Door ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$159.55

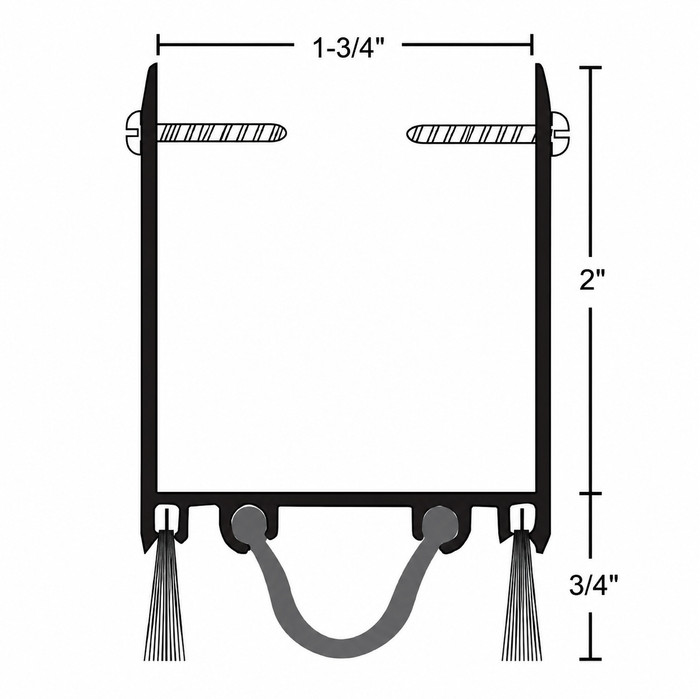

NGP 92NWHDKB 36 Extended Door Shoe with Nylon Brush and Neoprene Inserts - Dark Bronze Finish

NGP 92NWHDKB 36 Extended Door Shoe with Nylon Brush and Neoprene Inserts - Dark Bronze Finish

(No reviews yet) Write a Review

Model: 92NWHDKB 36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$159.55
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Extended Door Shoe with Nylon Brush and Neoprene Inserts - Dark Bronze Finish

Professional Door Bottom Sealing Solution

The NGP Extended Door Shoe combines advanced nylon brush technology with neoprene inserts to provide superior door bottom sealing for commercial applications. Constructed from aluminum alloy 6063 with T5 temper and featuring synthetic EPDM rubber in a polypropylene thermoplastic matrix, this door shoe delivers exceptional durability with a temperature range of -70 F to 275 F. The dark bronze finish with gray nylon brush provides both aesthetic appeal and professional performance in demanding environments.

Professional Features & Benefits

  • Temperature Versatility: Operates effectively from -70 F to 275 F for reliable performance in extreme climate conditions.
  • Heavy-Duty Construction: Aluminum alloy 6063 with T5 temper provides exceptional structural integrity for commercial door applications.
  • Advanced Sealing Technology: Nylon brush combined with neoprene inserts creates superior barrier against air infiltration, moisture, and debris.
  • Weather-Resistant Materials: Synthetic EPDM rubber in polypropylene thermoplastic matrix offers excellent resistance to ozone, sunlight, and aging.
  • Flame and Moisture Protection: Flame-resistant and moisture-resistant properties ensure safe operation in various commercial environments.
  • Professional Installation: Includes #6 x 3/4" stainless steel SMS fasteners for secure mounting and long-term reliability.
  • Customizable Configuration: End caps available separately for complete installation flexibility and professional appearance.
  • Superior Material Properties: Very good abrasion resistance, tensile strength, and memory for extended service life in high-traffic applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Weatherized Construction

The NGP Extended Door Shoe features comprehensive weather-resistant design with synthetic EPDM rubber construction that provides good resistance to ozone, sunlight, and aging. The moisture-resistant and flame-resistant properties ensure reliable performance in exterior applications and demanding environmental conditions.

Why Choose NGP Quality?

NGP door shoes deliver professional-grade reliability with aluminum alloy 6063 construction and advanced EPDM rubber sealing technology rated for extreme temperature performance from -70 F to 275 F. The combination of superior abrasion resistance, tensile strength, and memory properties ensures dependable sealing performance in demanding commercial applications where consistent environmental control is essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 92NWHDKB 36 – Frequently Asked Questions

1) What does the NGP 92NWHDKB door shoe seal with, a brush or a rubber insert?
Both. The NGP 92NWHDKB extended door shoe pairs a gray nylon brush with neoprene inserts, so you get the brush sweeping debris and uneven floor contact plus the neoprene for air and moisture barrier. That combination is the reason to pick it over a plain vinyl-insert shoe like the Cal-Royal DS-403 or the Pemko 209, which seal with a single vinyl insert.
2) Will an NGP 92 door shoe hold up on an exterior door in a cold climate?
Yes. The 92NWHDKB is rated from -70 F to 275 F, and the sealing element is synthetic EPDM rubber in a polypropylene thermoplastic matrix with good resistance to ozone, sunlight, and aging. The extrusion is 6063-T5 aluminum alloy. That combination is built for exterior and unconditioned openings, not just interior corridors.
3) Do I need to buy fasteners separately for the NGP 92NWHDKB door shoe?
No, the fasteners come with it. The shoe ships with #6 x 3/4 inch stainless steel sheet metal screws for mounting to the door bottom. What is not included is end caps, which are ordered separately if you want a finished look on the ends of the extrusion.
4) Can I use the NGP 92NWHDKB extended door shoe on a fire-rated opening?
The NGP 92NWHDKB is described as a commercial extended door shoe with nylon brush and neoprene inserts in aluminum alloy 6063-T5, rated from -70 F to 275 F. When the opening carries a fire label and the specification calls for a listed door bottom, buyers commonly turn to the Pemko 210, a fire-rated door bottom shoe with an Eco-V insert in 36 inch aluminum construction, or the Pemko 215, a fire-rated door shoe with rain drip and Eco-V insert that is UL10C certified. Match the shoe to whatever the door and frame listing requires for your jurisdiction.
5) The NGP 92NWHDKB has no rain drip - what door shoe should I use on an exterior door that gets driven rain?
The NGP 92NWHDKB is an extended shoe with a nylon brush and neoprene inserts, built for air, moisture and debris control on commercial doors. On an exposed exterior leaf where water runs down the face of the door, a shoe with an integral drip is the usual choice: the Pemko 211V is an L-shaped door shoe with rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 combines a rain drip with an Eco-V insert on a fire-rated shoe. The drip leg throws runoff clear of the threshold instead of letting it track under the door.
6) What is the closest alternative to the NGP 92NWHDKB door shoe if I want a vinyl seal instead of a nylon brush?
The NGP 92NWHDKB seals with a gray nylon brush backed by neoprene inserts on an aluminum alloy 6063-T5 extrusion. If you would rather have a solid vinyl sweep contacting the threshold, the Pemko 209 is a door bottom shoe with an Eco-V vinyl insert in a 1/2 inch by 1-3/8 inch profile, and the Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert. Brush seals ride over uneven or rough thresholds and shed grit and snow; vinyl inserts give a continuous contact line against air and light. Confirm the shoe profile clears your door bottom rail and undercut before you choose either.
7) Is the NGP 92 series door shoe suitable for a high-traffic commercial entrance?
It is specified commercial, and the material set backs that up: 6063-T5 aluminum extrusion with EPDM sealing element rated for very good abrasion resistance, tensile strength, and memory. Typical placements are office buildings, schools, hospitals, retail, warehouses, multi-tenant residential and municipal buildings.
8) What is the difference between an L-shaped door shoe and the NGP 92NWHDKB extended shoe?
The NGP 92NWHDKB is an extended door shoe: the aluminum 6063-T5 body wraps the door bottom and carries a nylon brush with neoprene inserts down to the threshold. The Pemko 211V is an L-shaped shoe, a profile that fastens to the face of the door bottom rather than wrapping it, and includes a rain drip with a GREENGUARD Gold certified Eco-V insert. The wrap versus L geometry changes how much of the door bottom is covered and where the fasteners land, so verify the bottom rail condition on the doors you are retrofitting before ordering either one.
9) For a LEED or low-emitting materials submittal, is the NGP 92NWHDKB or a Pemko shoe the better fit?
The NGP 92NWHDKB is built from aluminum alloy 6063-T5 with synthetic EPDM rubber in a polypropylene thermoplastic matrix, which gives it ozone, sunlight and aging resistance across -70 F to 275 F. If your submittal specifically requires a third-party low-emitting certification on the gasket material, the Pemko 211V carries a GREENGUARD Gold certified Eco-V insert. Both are aluminum door bottom shoes, so the decision comes down to whether the certification appears in your specification text.
10) I need a plain door shoe for an interior door - is the NGP 92NWHDKB overkill?
The NGP 92NWHDKB is an extended shoe pairing a nylon brush with neoprene inserts and fasteners, aimed at commercial openings that need air, moisture and debris control across a wide temperature range. For a straightforward interior door where you just want a sweep against the floor, a basic aluminum shoe with a vinyl insert such as the Cal-Royal DS-403 or the Pemko 209 in its 1/2 inch by 1-3/8 inch profile covers the same function with a simpler extrusion. Check your door undercut against the shoe profile either way.
11) We are standardizing door bottoms across a 36 inch door fleet - does the NGP 92NWHDKB have a 36 inch equivalent from another brand?
The NGP 92NWHDKB extended door shoe is supplied in a 36 inch length with dark bronze finish and #6 x 3/4 inch stainless steel SMS fasteners. Among aluminum shoes in the same class, the Pemko 210 is also furnished in 36 inch aluminum construction with an Eco-V insert and is fire-rated, so it drops onto the same nominal door width while changing the seal from a nylon brush to a vinyl insert. If part of the fleet is labeled openings and part is not, that difference is usually what decides which shoe goes on which door.
12) What finish is the NGP 92NWHDKB and will it match dark bronze doors and frames?
Dark bronze. The aluminum extrusion is finished dark bronze and the brush element is gray, so it reads dark against a bronze anodized door bottom with a lighter brush line at the floor. If you are standardizing a building on bronze hardware, the extrusion is the visible part once the door is closed.
13) Which NGP 92 model number do I order for the dark bronze brush version?
Order model 92NWHDKB. That designation covers the extended door shoe with nylon brush and neoprene inserts in the dark bronze finish.
