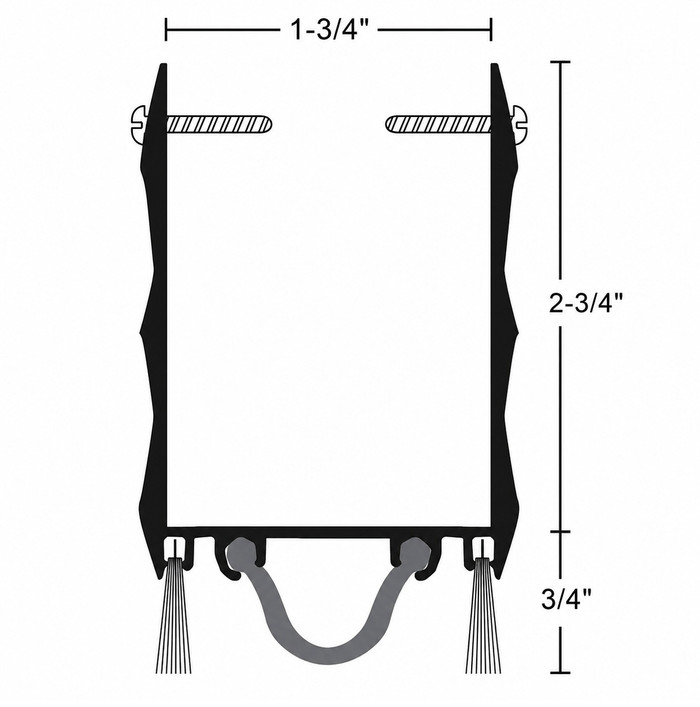

NGP 99NHWA Extended Door Shoe with Nylon Brush and Neoprene Inserts - 1-1/4" Anodized Aluminum

NGP 99NHWA Extended Door Shoe with Nylon Brush and Neoprene Inserts - 1-1/4" Anodized Aluminum

(No reviews yet) Write a Review

Model: 99NHWA-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$156.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Extended Door Shoe with Nylon Brush and Neoprene Inserts - 1-1/4" Anodized Aluminum

Professional Door Bottom Sealing Solution

The NGP Extended Door Shoe combines durable anodized aluminum construction with nylon brush and neoprene inserts for comprehensive door bottom sealing. This 1-1/4" extended design features aluminum alloy 6063 T5 temper construction with synthetic rubber polymer blend inserts providing excellent abrasion resistance and memory. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold applications with temperature range from -20 F to 200 F.

Professional Features & Benefits

  • Extended 1-1/4" Design: Provides enhanced sealing coverage for improved weather protection and energy efficiency in commercial door applications.
  • Dual Sealing Technology: Combines nylon brush weatherstripping with neoprene inserts for superior air, water, and debris protection.
  • Temperature Performance: Operates effectively in temperature range from -20 F to 200 F for reliable performance in extreme conditions.
  • Premium Aluminum Construction: Aluminum alloy 6063 T5 temper with anodized finish provides exceptional durability and corrosion resistance.
  • High-Performance Materials: Synthetic rubber polymer blend of Chloroprene and EPDM offers excellent abrasion resistance, tensile strength, and memory retention.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold ensuring reliable commercial-grade performance.
  • Weather Resistance: Flame resistant and moisture resistant construction with good resistance to ozone, sunlight and aging for long-term durability.
  • Complete Installation Hardware: Includes #6 x 3/4" stainless steel SMS fasteners for secure mounting and professional installation.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door shoes deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and BHMA certification to ANSI/BHMA A156.22 performance standards. The synthetic rubber polymer blend materials provide excellent abrasion resistance and memory retention for long-lasting sealing performance. Engineered for demanding commercial applications where dependable weather sealing and energy efficiency are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 99NHWA-36 – Frequently Asked Questions

1) What does the NGP 99NHWA door shoe actually seal against, and where does it mount?
The 99NHWA is an extended aluminum door shoe that mounts to the bottom face of the door and rides down to the threshold, sealing the gap under the door. It carries two sealing elements rather than one: a nylon brush and neoprene inserts, so it handles air, water, and debris on the same opening. The extrusion is 1-1/4 inch extended aluminum, alloy 6063 T5 temper, with an anodized finish.
2) What lengths does the NGP 99NHWA door shoe come in, and what do I do if my door is wider?
Two lengths are offered, 36 inch and 48 inch. Standard commercial single doors are 36 inches wide, so the 36 inch piece covers most openings and the 48 inch covers wider leaves. Aluminum door shoe extrusion is cut to the door width on site with a miter saw, so order the length at or above your leaf width and trim it down. On a pair of doors, order one piece per leaf.
3) Is the NGP 99NHWA rated for cold weather and hot exterior doors?
Rated from -20 F to 200 F, and BHMA certified to ANSI/BHMA A156.22 for the heat and cold performance tests. That range covers unheated loading docks and northern exterior entrances at the low end and sun-loaded south-facing metal doors at the high end. The insert compound is a synthetic rubber polymer blend of chloroprene and EPDM, with resistance to ozone, sunlight, and aging.
4) Should I use a door shoe with a nylon brush or one with a solid vinyl insert?
Brush and neoprene, as on the NGP 99NHWA, is the choice when the sill is uneven, worn, or picks up grit and snow, because bristles conform and sweep debris rather than dragging on it. A solid vinyl insert seals tighter against a clean flat threshold and is the usual pick for smooth interior sills. In vinyl, ZenSupply carries the Cal-Royal DS-403 aluminum door shoe with vinyl insert and the Pemko 209 with Eco-V vinyl insert. The 99NHWA gives you both media at once, which is why it gets specified on exterior commercial entrances.
5) What is a direct alternative to the NGP 99NHWA door shoe if the opening needs a fire-rated door bottom shoe?
The NGP 99NHWA is an extended door shoe with nylon brush and neoprene inserts in 1-1/4 inch anodized aluminum, certified to ANSI/BHMA A156.22 for heat and cold with a -20 F to 200 F range. For an opening where the door bottom shoe itself has to carry a fire rating, the Pemko 210 is a fire-rated door bottom shoe with an Eco-V insert in 36 inch aluminum construction, and the Pemko 215 is a fire-rated door shoe with rain drip and an Eco-V insert that is UL10C certified. Both are door bottom shoes, so they occupy the same position on the door as the 99NHWA.
6) Do I need to buy screws separately for the NGP 99NHWA door shoe?
No, fasteners come in the box. The shoe ships with #6 x 3/4 inch stainless steel sheet metal screws for mounting. Stainless matters on an exterior bottom rail, since that fastener line sits in the splash zone. Nothing else is required to hang it beyond a drill and a saw to cut the extrusion to width.
7) My exterior door gets driving rain running down the face. Is a plain door shoe enough?
A rain drip is the better answer there. The NGP 99NHWA is a straight extended shoe with brush and neoprene, so water running down the door face reaches the sill line. Where wind driven rain is the problem, use a shoe with an integral drip cap that throws the water clear, such as the Pemko 211V L-shaped door shoe with rain drip or the Pemko 215 with rain drip. On sheltered entrances and interior openings the 99NHWA is the simpler install.
8) Will the NGP 99NHWA hold up on a high traffic entrance in an apartment building or school?
It is a commercial grade part, not a residential one. The body is 6063 T5 aluminum with an anodized finish for corrosion resistance, and the insert compound is chosen for abrasion resistance, tensile strength, and memory, meaning the seal recovers its shape after being compressed thousands of times instead of taking a set and leaving a light gap. That memory property is what decides whether a shoe still seals after a year on a door that cycles all day.
9) Is a door shoe the same thing as a door sweep, and which one do I need?
They are different parts. A door shoe like the NGP 99NHWA wraps the bottom edge of the door and carries the seal in an aluminum channel, so it protects the door bottom itself as well as sealing, and it needs the door removed or at least the bottom edge accessible to install. A sweep fastens to one face of the door only and is the faster retrofit when you cannot pull the leaf. On exterior metal and wood doors where the bottom edge takes water, the shoe is what gets specified.
10) What is a simpler door shoe than the NGP 99NHWA for an interior opening?
The 99NHWA is an extended 1-1/4 inch design that combines a nylon brush with neoprene inserts for air, water, and debris sealing, built from 6063 T5 aluminum with an anodized finish. For an interior opening where a single-element seal is enough, the Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, and the Pemko 209 is a door shoe with an Eco-V vinyl insert on a 1/2 inch by 1-3/8 inch profile. The Pemko 209 profile is the number to check against the door bottom clearance before ordering.
11) What door shoe carries a GREENGUARD Gold certified insert for a project with indoor air quality requirements?
The Pemko 211V is an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert. The NGP 99NHWA seals with a nylon brush and neoprene inserts in a synthetic rubber polymer blend of Chloroprene and EPDM, and is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold. For a healthcare or educational facility writing an indoor air quality line into the spec, the 211V is the one in this group whose insert carries that certification.
12) Can I standardize the same NGP door shoe across every exterior opening in a facility?
That is the normal way it gets bought. The anodized aluminum finish is one look across a building, the two lengths cover standard and wide leaves, and the -20 F to 200 F range means the same part number works on a heated lobby door and an unconditioned dock door. Ordering one SKU in two lengths keeps the maintenance shelf simple, and the included stainless screws mean crews are not chasing fasteners on every replacement.
