NGP 17 Rain Drip Guard 3/4" x ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$16.35

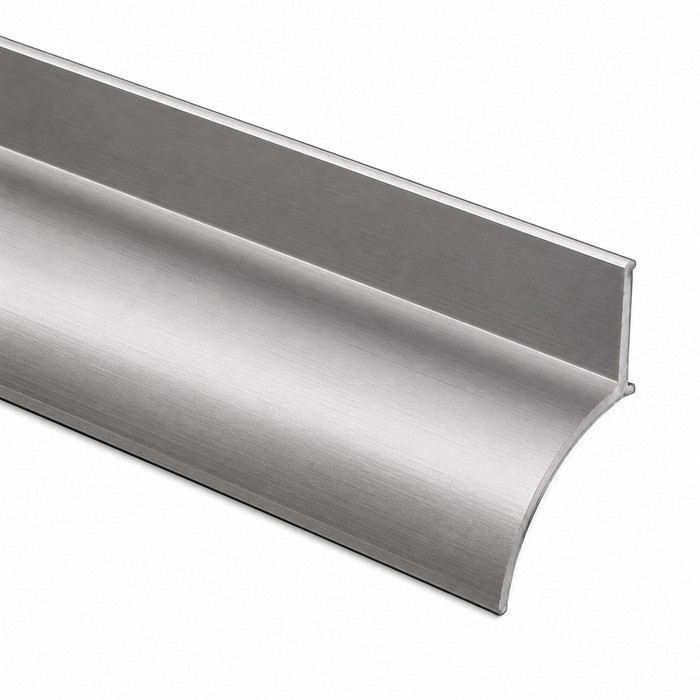

NGP NGP 17 Rain Drip Guard, Mill Aluminum Finish NGP-17

NGP 17 Rain Drip Guard 3/4" x 1-1/2" Mill Aluminum with Stainless Steel Hardware

(5 reviews) Write a Review

Model: 17-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$16.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Rain Drip Guard 3/4" x 1-1/2" Mill Aluminum with Stainless Steel Hardware

Professional Weather Protection for Commercial Door Applications

The NGP Rain Drip Guard provides essential weather protection for commercial door installations with precision-engineered aluminum construction. Measuring 3/4" wide x 1-1/2" tall, this drip guard is manufactured from aluminum alloy 6063 with T5 temper for optimal strength and corrosion resistance. The mill aluminum finish delivers long-lasting performance while included #6 x 3/4" stainless steel SMS fasteners ensure secure, weather-resistant installation.

Professional Features & Benefits

  • Precision Dimensions: 3/4" wide x 1-1/2" tall profile provides effective water diversion for standard commercial door applications.
  • Premium Aluminum Construction: Aluminum alloy 6063 with T5 temper delivers exceptional strength-to-weight ratio and superior corrosion resistance for long-term durability.
  • Stainless Steel Hardware: Includes #6 x 3/4" stainless steel SMS fasteners for secure mounting and resistance to weather-related corrosion.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation for optimal water management.
  • Mill Aluminum Finish: Natural mill finish provides clean appearance while maintaining aluminum's inherent weather resistance properties.
  • Optional Fast Attach Tape: FATT (Fast Attach Tape) option available for alternative mounting applications where traditional fasteners may not be suitable.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Rain Drip Guards
  • Series: Rain Drip Guard Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Building Entrances
  • Retail Store Front Doors
  • Educational Facility Exterior Doors
  • Healthcare Institution Entry Points
  • Industrial Building Access Doors
  • Multi-Tenant Residential Complexes
  • Government and Municipal Building Entrances

Why Choose NGP Quality?

NGP Rain Drip Guards deliver professional-grade weather protection with aluminum alloy 6063 T5 temper construction engineered for demanding commercial applications. The precision 3/4" x 1-1/2" profile and stainless steel hardware ensure reliable performance where effective water management is essential. Designed for commercial door hardware professionals who require dependable weatherization solutions.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Rain Drip Guard Series
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Rain Drip Guards
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 17-36 – Frequently Asked Questions

1) What size door does the NGP 17 rain drip guard cover, and what lengths can I get?
The NGP 17 drip guard comes in 36, 40, 72 and 76 inch lengths. The 36 inch and 40 inch pieces cover a single 3-0 door with a little to trim, and the 72 and 76 inch pieces run across a pair of doors in one piece so there is no seam over the meeting stile. Order the length that spans your opening plus the frame face you want it to overhang, then cut to fit.
2) Do I mount an NGP rain drip guard on the door or on the frame?
Either works, and the choice is about where the water is going. On the frame face above the opening it stays put and sheds water off the head stop, which is the usual commercial install over an exterior entrance. On the door face it moves with the door and is the answer when a canopy or transom rules out frame mounting. The 17 has slotted screw holes, so you get some up and down adjustment to line it up over the head weatherstrip rather than being stuck with the first hole location.
3) Does the NGP 17 drip guard come with fasteners, or do I need to buy screws separately?
Screws are in the box. It ships with #6 x 3/4 inch stainless steel sheet metal screws, which is the right metal for an exterior head where a plated steel screw would bleed rust down the frame within a season. Nothing else is needed for a standard fastened install.
4) Can I install a rain drip guard without drilling into an aluminum storefront frame?
Yes. NGP offers the FATT fast attach tape option on the 17 drip guard for exactly that situation, where you do not want to put fasteners through a storefront frame, a fire-rated frame you would rather not penetrate, or a finished surface. Specify FATT when you order rather than the standard fastened version. Where you can drill, the screws give a stronger long-term hold on a heavy weather exposure.
5) Will a mill finish aluminum drip guard corrode on an exterior entrance?
The 17 is extruded from 6063-T5 aluminum alloy, which does not rust, and the mill finish is the bare alloy rather than a coating that can chip or peel. Paired with the stainless screws there is no dissimilar-metal rust streak on the frame. Mill is unfinished silver, so on a dark bronze or black anodized storefront it will read as a bright line above the door.
6) Will a rain drip guard stop water leaking under my door?
No, and this is the wrong part for that. A drip guard mounts at the head and sheds water off the top of the opening so it does not run down the face and in behind the head weatherstrip. Water coming in at the floor is a job for a door bottom or sweep and a threshold. On a leaking exterior opening the drip guard is one piece of the assembly, not the whole fix.
7) Is the NGP 17 rain drip guard suitable for a commercial building entrance or is it a residential part?
This is a commercial-duty part, extruded aluminum with stainless hardware, and it is used on office entrances, storefronts, school and healthcare exterior doors, industrial access doors and municipal entries. Property managers standardizing a multi-tenant building can run the same 17 profile across every exterior opening, using the 36 or 40 inch pieces on singles and the 72 or 76 inch pieces on pairs.
