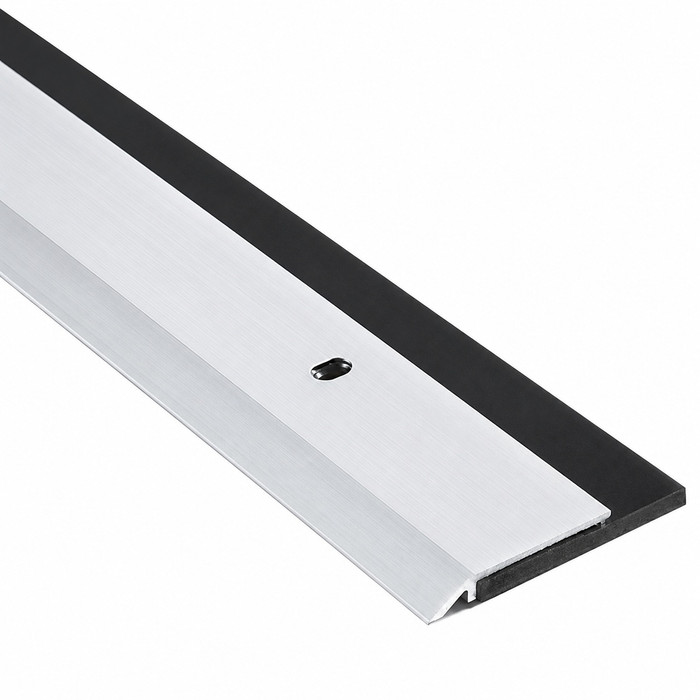

NGP NGP 200SA Silicone Door Sweep, Anodized Aluminum NGP-200SA

NGP 200SA Silicone Door Sweep with Anodized Aluminum Housing - Temperature Range -100 F to 500 F

(No reviews yet) Write a Review

Model: 200SA-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$54.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Silicone Door Sweep with Anodized Aluminum Housing - Temperature Range -100 F to 500 F

Professional Door Sealing Solution for Extreme Temperature Applications

The NGP Silicone Door Sweep delivers superior sealing performance with anodized aluminum alloy 6063 T5 temper construction and synthetic rubber polymer siloxane closed cell sponge material. Engineered for extreme temperature applications with operational range from -100 F to 500 F while maintaining excellent flexibility and memory. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold resistance, making it ideal for demanding commercial environments including areas with FM200 or Halon fire suppression systems.

Professional Features & Benefits

  • Extreme Temperature Performance: Operational range from -100 F to 500 F maintains flexibility and sealing effectiveness in harsh environmental conditions.
  • Premium Construction Materials: Aluminum alloy 6063 T5 temper housing with synthetic rubber polymer siloxane closed cell sponge for long-lasting durability.
  • Fire Suppression System Compatible: Specifically recommended for areas using FM200 or Halon fire suppression systems with flame-resistant properties.
  • Superior Environmental Resistance: Excellent resistance to ozone, UV exposure, and aging with moisture-resistant design for extended service life.
  • BHMA Performance Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold ensuring reliable operation in extreme conditions.
  • Adjustable Installation Design: Slotted screw holes allow for precise positioning and alignment during installation with included #6 x 3/4" stainless steel sheet metal screws.
  • Professional Appearance: Anodized aluminum finish with gray silicone provides clean, professional appearance suitable for commercial applications.
  • Excellent Flexibility and Memory: Siloxane closed cell sponge material maintains sealing effectiveness through repeated compression cycles.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Sweeps and Bottoms
  • Series: Silicone Door Sweep Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Healthcare Facilities with Fire Suppression Systems
  • Industrial Facilities with Extreme Temperature Conditions
  • Clean Room and Laboratory Environments
  • Data Centers and Server Rooms
  • Food Service and Processing Facilities
  • Pharmaceutical Manufacturing Facilities

Fire Suppression System Compatibility

This door sweep is specifically engineered for use in areas equipped with FM200 or Halon fire suppression systems. The flame-resistant siloxane material maintains integrity during fire suppression activation while providing reliable sealing performance. The closed cell sponge construction prevents suppression agent infiltration while maintaining effective environmental sealing.

Why Choose NGP Quality?

NGP door sweep products deliver professional-grade sealing performance with aluminum alloy 6063 T5 temper construction and BHMA certification to ANSI/BHMA A156.22 performance standards. The extreme temperature range capability from -100 F to 500 F with excellent resistance to ozone, UV, and aging ensures reliable long-term performance. Engineered for demanding commercial applications where dependable environmental sealing and fire suppression system compatibility are essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Silicone Door Sweep Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Sweeps and Bottoms
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 200SA-36 – Frequently Asked Questions

1) Will the NGP 200SA silicone door sweep hold up in a room with FM200 or Halon fire suppression?
That's the application it's built for. The siloxane closed cell sponge is flame resistant and NGP recommends the 200SA specifically for areas with FM200 or Halon systems. The closed cell structure keeps suppression agent from passing through the seal, which is what matters in a data center or server room where the agent has to stay in the space long enough to work.
2) How cold or hot can a silicone door sweep get before it stops sealing?
The NGP 200SA is rated from -100 F to 500 F and keeps its flexibility and memory across that range. That covers walk-in freezer vestibules at one end and boiler rooms, kitchens, and process areas at the other. A standard neoprene or vinyl sweep insert has nothing like that span, which is the whole reason to pay for silicone.
3) Is the NGP 200SA door sweep certified to any BHMA standard?
Yes, it's BHMA certified to ANSI/BHMA A156.22, specifically the heat and cold performance tests. If you're writing a spec for a hospital, lab, or government facility that calls out A156.22 gasketing, the 200SA meets it on record.
4) Do I need to buy screws for an NGP 200SA door sweep, or does it come with them?
Fasteners are included, #6 x 3/4 inch stainless steel sheet metal screws. The mounting holes are slotted, so you can set the sweep on the door face, snug the screws, and slide it up or down to get even contact on the threshold before you tighten. That adjustment is worth using, a sweep set too low drags and tears, set too high it leaks light.
5) What is the closest alternative to the NGP 200SA door sweep for an opening that does not need extreme temperature performance?
The NGP 200SA pairs an anodized aluminum alloy 6063 T5 housing with a siloxane closed cell sponge seal rated from -100 F to 500 F, which is what makes it suitable near FM200 or Halon fire suppression systems. For an interior opening with no thermal or suppression-agent concern, the Pemko 345V door bottom sweep uses a GREENGUARD Gold certified Eco-V insert, and the Pemko 56 Series sweep uses the same Eco-V insert in a 36 inch length. Both are door bottom sweeps that seal the same gap; the difference is the seal material and what it is qualified for, so specify the 200SA where the silicone temperature range or suppression compatibility is on the spec, and the Eco-V products where a low-emitting interior material is the priority.
6) Will a brush door sweep work in place of a silicone sweep on a door near a fire suppression system?
They are not the same seal. The NGP 200SA uses a synthetic rubber polymer siloxane closed cell sponge, and that closed cell construction is what resists suppression agent infiltration in areas served by FM200 or Halon systems, backed by ANSI/BHMA A156.22 heat and cold performance testing. The Pemko 29326NB is a brush door bottom sweep in clear anodized aluminum with a concealed fastener design, and the Cal-Royal BTN-112 uses an extruded aluminum retainer with a neoprene insert. Brush and neoprene sweeps sweep debris and block drafts at the sill, but they are a different sealing element than the closed cell silicone the 200SA is built around, so match the sweep to what the room requires rather than swapping across insert types.
7) I need to stop water running down an exterior door face. Is a silicone sweep the right part?
No. The NGP 200SA is a door bottom sweep that seals the gap between the door bottom and the sill, mounted through slotted screw holes with the included #6 x 3/4 inch stainless steel sheet metal screws. Water sheeting down the face of a door is handled by a drip, and the Pemko 3452 is a surface plate rain drip door bottom for that purpose. On a wind-driven-rain opening the two often go on the same door doing different jobs, so order by the function you need rather than substituting one for the other.
8) Should I use a silicone door sweep or a brush sweep?
Different jobs. A brush sweep, like the Pemko 29326NB or the Cal-Royal BTN-112 with its neoprene insert, sheds debris and rides over uneven or dirty floors, so it suits exterior and service doors. The silicone 200SA is a compression seal, it presses closed against the threshold, which is what you want when you're actually containing something: temperature, suppression agent, smoke path, or clean room air. If the floor is rough or the door sees grit, brush lasts longer. If the opening has to seal, go silicone.
9) What's a lower cost alternative to the NGP 200SA for a standard interior office door?
If there's no temperature extreme and no suppression system involved, the silicone is more sweep than the opening needs. The Pemko 56 Series with an Eco-V insert comes in a 36 inch length and does ordinary draft and light sealing duty, and the Pemko 345V uses a GREENGUARD Gold certified Eco-V insert if the project is chasing indoor air quality credits. Keep the 200SA for the openings where the -100 F to 500 F range or the A156.22 heat and cold certification is actually doing something.
10) Will an NGP 200SA sweep keep rain off the bottom of an exterior door?
No, and that's the wrong part for it. The 200SA is a face-mounted compression sweep, it seals the gap but it doesn't throw water away from the door bottom. For driving rain you want a drip cap, the Pemko 3452 surface plate rain drip door bottom is the piece that does that job. On an exterior opening the two often go together: drip above, sweep below.
11) If the fastener heads need to be hidden on the finished door, what should I specify instead of the NGP 200SA?
The NGP 200SA mounts with exposed slotted screw holes, which is what lets it be shifted for precise height alignment at the sill during installation. Where the aesthetic calls for no visible fasteners, the Pemko 29326NB is a 36 inch brush door bottom sweep with clear anodized aluminum and a concealed fastener design. Note that this trades the 200SA's silicone seal and its -100 F to 500 F range for a brush seal, so it suits lobby and office doors rather than mechanical, laboratory, or suppression-protected rooms.
12) We are standardizing sweeps across a facility on 36 inch doors. What are the options in that width?
The NGP 200SA silicone door sweep is offered in a 36 inch length alongside 46 inch and 48 inch, so a mixed door schedule can be covered from one series with one anodized aluminum appearance throughout. Among comparable door bottom sweeps in that width, the Pemko 56 Series with the Eco-V insert is offered at 36 inches, and the Pemko 29326NB brush sweep is a 36 inch part. For a facility with rooms under FM200 or Halon protection, the 200SA is the one carrying that compatibility and the ANSI/BHMA A156.22 heat and cold certification.
13) What is the difference between a neoprene insert sweep and the NGP 200SA silicone sweep?
The Cal-Royal BTN-112 carries a neoprene insert in an extruded aluminum retainer. The NGP 200SA uses a synthetic rubber polymer siloxane closed cell sponge in an aluminum alloy 6063 T5 temper housing, with stated resistance to ozone, UV exposure, moisture and aging and an operating range of -100 F to 500 F. Both are aluminum-retained bottom sweeps that install at the door bottom; the elastomer is the deciding variable, so where the sweep sees sunlight, wash-down, wide temperature swings or a suppression-protected space, the silicone seal is the one specified for those conditions.
14) Will the aluminum housing on this NGP sweep corrode or the silicone go brittle outdoors?
The housing is 6063 T5 temper aluminum, anodized, and the siloxane insert is rated for ozone, UV, and aging resistance plus moisture. That combination is why it holds up on sun-exposed and washdown openings where a vinyl insert chalks and cracks in a couple of seasons.
15) Can I standardize on one door sweep across a building with freezers, kitchens, and a server room?
That's a reasonable use of the 200SA. One part number covers all three because the -100 F to 500 F range spans them and the FM200 and Halon compatibility handles the suppressed spaces, so your storeroom carries three lengths instead of three different sweeps. The finish is consistent too, anodized aluminum with a gray silicone insert on every opening.
16) Is the NGP 200SA rated for commercial use or is it a residential weatherstrip?
Commercial. NGP classes the 200SA as a commercial product and the specified applications are healthcare, industrial, clean rooms and labs, data centers, food processing, and pharmaceutical manufacturing. It'll go on a residential door fine, but the A156.22 certification and the temperature range are aimed at institutional openings.
