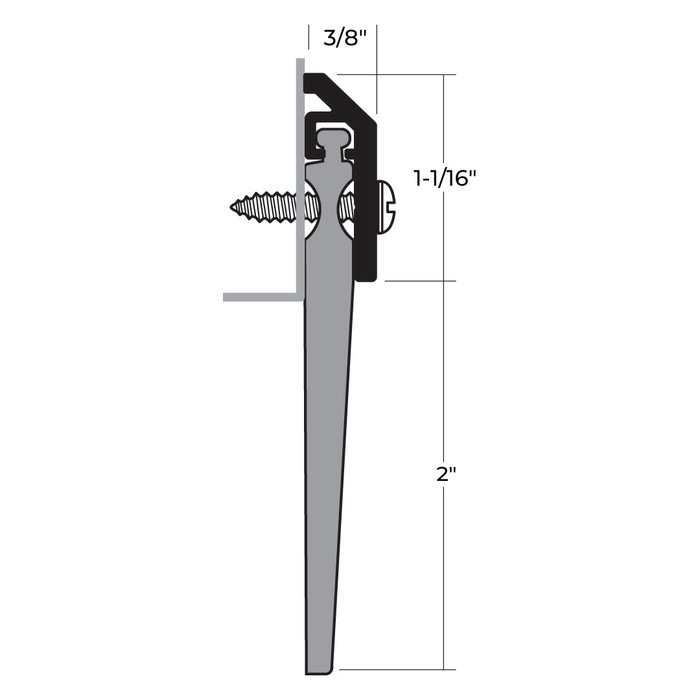

NGP 203NA Neoprene Door Sweep with Anodized Aluminum Housing and Temperature Range -20 F to 200 F

NGP 203NA Neoprene Door Sweep with Anodized Aluminum Housing and Temperature Range -20 F to 200 F

(No reviews yet) Write a Review

Model: 203NA-48

In Stock (leaves warehouse same day if ordered before 3pm ET)

$107.92
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Neoprene Door Sweep with Anodized Aluminum Housing and Temperature Range -20 F to 200 F

Professional Weather Sealing Solution

The NGP Neoprene Door Sweep combines durable anodized aluminum construction with high-performance synthetic rubber polymer blend for superior weather sealing. Featuring aluminum alloy 6063 T5 temper housing and chloroprene/EPDM neoprene blend, this door sweep operates reliably in temperature ranges from -20 F to 200 F. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold resistance, ensuring professional-grade performance in demanding commercial applications.

Professional Features & Benefits

  • Temperature Performance: Operates effectively in extreme conditions from -20 F to 200 F for year-round reliability in various climates.
  • Heavy-Duty Construction: Aluminum alloy 6063 T5 temper housing provides exceptional durability and corrosion resistance for long-term performance.
  • Advanced Polymer Blend: Synthetic rubber combination of chloroprene and EPDM delivers superior abrasion resistance, tensile strength, and memory retention.
  • Weather Resistance: Flame resistant and moisture resistant design with excellent resistance to ozone, sunlight, and aging for extended service life.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation for optimal sealing performance.
  • Complete Hardware Package: Includes #6 x 1" stainless steel sheet metal screws for secure mounting and professional installation.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold compliance and reliability assurance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Sweeps and Bottoms
  • Series: Neoprene Door Sweep Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door sweep products deliver professional-grade weather sealing with aluminum alloy 6063 T5 temper construction and advanced chloroprene/EPDM polymer blend rated for -20 F to 200 F temperature performance. BHMA certified to ANSI/BHMA A156.22 standards for heat and cold resistance with flame and moisture resistant properties. Engineered for demanding commercial applications where reliable weather protection and long-term durability are essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Neoprene Door Sweep Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Sweeps and Bottoms
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 203NA-48 – Frequently Asked Questions

1) Will the NGP 203NA door sweep hold up on an exterior door in a cold climate?
The 203NA is rated from -20 F to 200 F, so it stays serviceable through winter and on sun-loaded south-facing doors. The seal is a chloroprene/EPDM neoprene blend with resistance to ozone, sunlight, and aging, and it is BHMA certified to ANSI/BHMA A156.22 for the heat and cold performance tests. The housing is 6063 T5 aluminum alloy, anodized, which is what keeps it from corroding at the threshold where water sits.
2) What lengths does the NGP 203NA neoprene door sweep come in, and what if my door is wider?
Two lengths are offered, 36 inch and 48 inch. Standard commercial door leaves are 36 inches, so the 36 inch piece covers most single openings; the 48 inch piece covers wider leaves and can be cut down. Aluminum housing sweeps like this one are field cut with a hacksaw or chop saw, so order the length at or above your door width rather than under it.
3) I need a low-VOC or green-certified door sweep for a LEED job. Is the NGP 203NA the right one?
The 203NA carries a BHMA certification to ANSI/BHMA A156.22 for heat and cold performance, but its insert is a neoprene rubber blend, not a green-certified material. If the submittal calls for a certified insert, the Pemko 345V uses a GREENGUARD Gold certified Eco-V insert, and the Pemko 56 Series also runs an Eco-V insert in a 36 inch length. Those are the ones to put on the submittal.
4) What is the difference between the NGP 203NA neoprene door sweep and the Pemko 345V door sweep?
Both are surface-applied door bottom sweeps in aluminum retainers, but the seal material differs. The NGP 203NA uses a chloroprene/EPDM neoprene blend rated for -20 F to 200 F and certified to ANSI/BHMA A156.22 for heat and cold resistance, with an anodized aluminum 6063 T5 housing. The Pemko 345V carries a GREENGUARD Gold certified Eco-V insert, which is the one to specify when a project is chasing low-emitting material credits for indoor air quality. If the requirement is temperature performance on an exterior opening, the neoprene sweep is the one written to that range; if the requirement is a certified low-emitting insert on an interior opening, the 345V is the match.
5) Can a brush sweep be used instead of a neoprene door sweep on a commercial door?
They seal differently. The NGP 203NA presses a solid chloroprene/EPDM neoprene blade against the threshold, which is what gives it the flame resistant, moisture resistant, ozone and sunlight resistant seal described for exterior commercial work. A brush sweep such as the Pemko 29326NB, a 36 inch brush door bottom sweep in clear anodized aluminum with concealed fasteners, sweeps rather than compresses, so it tolerates uneven or rough floors and out-of-level thresholds where a solid blade would drag or wear. The Cal-Royal BTN-112 pairs an extruded aluminum retainer with a neoprene insert and sits in the brush weatherstrip family. For a door that must hold a weather seal against a flat threshold, the neoprene blade is the sealing element; for a door over carpet, tile transitions, or an irregular floor, brush is the usual answer.
6) What should be used on an exterior door that is taking driving rain, not just air infiltration?
A door sweep and a rain drip do two different jobs. The NGP 203NA neoprene sweep with anodized aluminum housing seals the gap between the door bottom and the threshold. The Pemko 3452 is a surface plate rain drip door bottom, which throws water away from the face of the door and off the sweep line rather than sealing the gap itself. On an exposed exterior opening these are commonly specified together: the sweep for the seal, the drip to shed water before it reaches it. Choosing the drip instead of the sweep leaves the bottom gap open.
7) Do I need to buy screws separately to mount the NGP 203NA door sweep?
No. The sweep ships with #6 x 1 inch stainless steel sheet metal screws. Mounting holes are slotted, so you can set the height, snug the screws, and adjust the neoprene down onto the threshold before final tightening. That adjustment is the part that matters on a door that has settled or has an uneven slab under it.
8) Should I use a neoprene blade sweep or a brush sweep on my door?
A neoprene blade like the 203NA wipes a continuous rubber seal against the threshold, which is what you want for weather, water, and draft control on exterior openings. A brush sweep, such as the Cal-Royal BTN-112 or the Pemko 29326NB with its concealed fastener design, drags less and tolerates rough or uneven floors better, which is why brushes get specified on interior doors and on openings where a rubber blade would bind or wear. Blade for sealing, brush for sweeping over an imperfect floor.
9) Is there an NGP 203NA equivalent that seals against water running down the face of the door?
The 203NA seals the gap under the door but does nothing about water sheeting down the door face. For that you want a rain drip added above, or a bottom that integrates one, like the Pemko 3452 surface plate rain drip door bottom. On a weather-exposed opening the usual build is a drip cap plus a sweep, not one part doing both.
10) Is the NGP 203NA sweep suitable for a hospital or school door, or is it a residential part?
It is a commercial-duty part. NGP rates it commercial, and the anodized 6063 T5 aluminum housing with a chloroprene/EPDM seal is built for the door traffic in office buildings, schools, healthcare facilities, retail, warehouses, multi-tenant residential, and government buildings. The BHMA certification to ANSI/BHMA A156.22 is the line item a facilities spec usually asks for.
11) Can I install the NGP 203NA sweep over an existing sweep's screw holes when replacing one?
Usually yes, because the mounting holes are slotted rather than drilled to a fixed pattern, which gives you lateral and vertical play to pick up old holes on the door face. It surface mounts to the pull side with the supplied #6 x 1 inch stainless screws. Where the previous part was a mortised or U-shaped shoe rather than a face-applied sweep, the prep is different and the holes will not line up.
12) Is the Cal-Royal BTN-112 a direct replacement for an NGP 203NA neoprene sweep?
The two are close in construction. The Cal-Royal BTN-112 is a door bottom sweep built on an extruded aluminum retainer with a neoprene insert, the same basic arrangement as the NGP 203NA, which carries a chloroprene/EPDM neoprene blend in a 6063 T5 anodized aluminum housing. Where they differ for a specifier is certification: the 203NA is BHMA certified to ANSI/BHMA A156.22 for heat and cold performance across -20 F to 200 F, and it ships with #6 x 1 inch stainless steel sheet metal screws and slotted holes for vertical adjustment. On a job where the submittal calls out A156.22 or a stated temperature range, that certification is the deciding line between them; on a maintenance swap where it does not, both are surface-applied neoprene sweeps in aluminum. Confirm the door width and cut to fit either way.
13) Which door sweep should be standardized across a facility that has both 36 inch and 48 inch doors?
The NGP 203NA neoprene sweep is stocked in 36 inch and 48 inch lengths, so a single part family covers standard 3-0 leaves and wider openings without changing seal material or housing between doors. That matters for an MRO stockroom holding one sweep for a mixed door schedule across office, education, healthcare, retail, industrial, multi-tenant residential, and municipal buildings. By comparison, the Pemko 56 Series sweep with Eco-V insert and the Pemko 29326NB brush sweep are both catalogued at 36 inch, so a wider leaf means moving to a different length or a different part. Where a facility wants one certified neoprene sweep across the whole door schedule, the two-length range keeps the standard intact.
14) Does a concealed fastener sweep look better than the NGP 203NA on a glass front or storefront door?
They mount differently. The NGP 203NA fixes through slotted screw holes in its anodized aluminum housing using the supplied #6 x 1 inch stainless steel sheet metal screws, which leaves the fastener heads visible on the door face but allows the sweep to be shifted up or down to set seal pressure after hanging. The Pemko 29326NB uses a concealed fastener design in clear anodized aluminum, which hides the heads for a cleaner line on a visible entrance. On a storefront or glass front installation where the sweep is at eye level from outside, that distinction usually drives the choice; where the floor is uneven and the sweep needs adjusting after install, the slotted mounting is the reason to stay with the 203NA.
15) Will a neoprene door sweep like the NGP 203NA stand up to a door that gets kicked open all day in a warehouse?
The chloroprene/EPDM blend is specified for abrasion resistance, tensile strength, and memory retention, which is the property that decides whether the blade springs back after being dragged and deformed rather than staying folded over. The seal is also flame and moisture resistant. Industrial and warehouse openings are among the applications NGP lists for it.
