NGP NGP 202NA Neoprene Door Sweep, Anodized Aluminum NGP-202NA

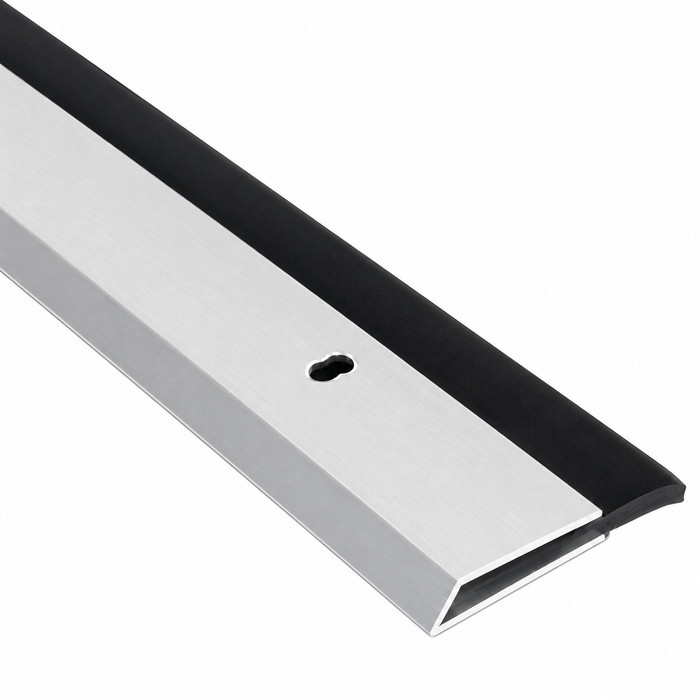

NGP 202NA Neoprene Door Sweep with Anodized Aluminum Housing and Temperature Range -20 F to 200 F

(No reviews yet) Write a Review

Model: 202NA-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$58.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Neoprene Door Sweep with Anodized Aluminum Housing and Temperature Range -20 F to 200 F

Professional Weatherstripping Solution for Commercial Door Applications

The NGP Neoprene Door Sweep combines durable anodized aluminum construction with high-performance synthetic rubber polymer blend for superior weather sealing. Featuring aluminum alloy 6063 T5 temper housing and chloroprene/EPDM neoprene blend, this door sweep operates reliably in temperature ranges from -20 F to 200 F. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold resistance, ensuring professional-grade performance in demanding commercial applications.

Professional Features & Benefits

  • Temperature Performance: Operates effectively in extreme conditions from -20 F to 200 F for year-round reliability in various climates.
  • Heavy-Duty Construction: Aluminum alloy 6063 T5 temper housing provides exceptional durability and corrosion resistance for long-term performance.
  • Advanced Polymer Blend: Synthetic rubber combination of chloroprene and EPDM delivers superior abrasion resistance, tensile strength, and memory retention.
  • Weather Resistance: Flame resistant and moisture resistant design with excellent resistance to ozone, sunlight, and aging for extended service life.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold compliance with industry standards.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation for optimal sealing performance.
  • Complete Hardware Package: Includes #6 x 3/4" stainless steel sheet metal screws for secure mounting and professional installation.
  • Professional Finish: Anodized aluminum housing with black neoprene provides attractive appearance suitable for commercial applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Sweeps and Bottoms
  • Series: Neoprene Door Sweep Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door sweep products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and synthetic rubber polymer blend rated for -20 F to 200 F temperature performance. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold resistance. Engineered for demanding commercial applications where dependable weather sealing and long-term durability are essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Neoprene Door Sweep Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Sweeps and Bottoms
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 202NA-36 – Frequently Asked Questions

1) Will the NGP 202NA door sweep hold up on an exterior door through winter and summer?
Yes. The 202NA neoprene sweep is rated from -20 F to 200 F, and BHMA certified to ANSI/BHMA A156.22 for the heat and cold performance tests. The seal is a chloroprene/EPDM synthetic rubber blend, which resists ozone, sunlight and aging, so it keeps its memory rather than going stiff and taking a set after a couple of seasons on a west-facing entrance.
2) What lengths does the NGP 202NA neoprene door sweep come in, and what do I order for a 3-foot door?
Three lengths: 36, 48 and 60 inches. A standard 3-foot commercial door takes the 36 inch. The 48 and 60 inch sizes cover wider leaves, and they can be cut down with a hacksaw or chop saw if your opening falls between sizes, since the sweep is a straight extruded aluminum retainer with a neoprene insert.
3) Should I use a neoprene door sweep or a brush sweep on my commercial doors?
A solid neoprene blade like the NGP 202NA seals tighter against air, light and water, so it is the pick for exterior openings and anywhere you are chasing draft or smoke infiltration. Brush sweeps drag less and tolerate an uneven or rough floor better, which is why they get used on interior doors and doors over carpet or broom-finish concrete. If you want brush instead, ZenSupply carries the Pemko 29326NB, a 36 inch brush bottom sweep with a clear anodized housing and concealed fasteners, and the Cal-Royal BTN-112, which uses an extruded aluminum retainer with a neoprene insert.
4) What is the closest equivalent to the NGP 202NA if I want a neoprene door sweep from a different manufacturer?
The Cal-Royal BTN-112 door bottom sweep uses an extruded aluminum retainer with a neoprene insert, which is the same material pairing as the NGP 202NA neoprene sweep in an anodized aluminum housing. Both are surface-applied sweeps that mount to the face of the door bottom, so the sealing element and the housing material carry over from one to the other.
5) I need a door sweep that will not scrape a carpeted or uneven threshold the way a solid rubber blade does. What should I use instead of a neoprene sweep?
A brush sweep is the alternative. The Pemko 29326NB is a 36 inch brush door bottom sweep in clear anodized aluminum, and the Cal-Royal BTN-112 comes out of a brush weatherstrip line. A brush filament rides over carpet, thresholds and floor irregularities, while the NGP 202NA seals with a neoprene blade that contacts the floor along its full length.
6) My spec calls for a low-emission or GREENGUARD certified seal. Is there a door sweep that meets that instead of neoprene?
The Pemko 345V door bottom sweep uses a GREENGUARD Gold certified Eco-V insert, and the Pemko 56 Series sweep also uses an Eco-V insert. Those are the ones to specify when the project requires a certified low-emission sealing element. The NGP 202NA seals with a chloroprene and EPDM neoprene blend certified to ANSI/BHMA A156.22 for heat and cold performance, which is a durability and temperature standard rather than an indoor air quality one.
7) Do I need to buy screws separately for the NGP 202NA sweep?
No, the fasteners ship with it. The 202NA includes #6 x 3/4 inch stainless steel sheet metal screws. The screw holes in the aluminum housing are slotted, so you can set the sweep, snug the screws, and slide it up or down to dial in contact with the threshold before you tighten. Nothing else is required to mount it to the face of the door.
8) Is the NGP 202NA sweep suitable for a school or hospital door, or is it a residential part?
It is a commercial-grade part. NGP lists the 202NA as commercial, and it is BHMA certified to ANSI/BHMA A156.22 for heat and cold performance, which is the certification a facility spec typically calls for. Common uses are office buildings, schools, healthcare, retail, warehouses, multi-tenant residential and government buildings. For a facility standardizing across many openings, one length per door width keeps the program simple.
9) Can I replace a Pemko door bottom sweep with the NGP 202NA?
Both are surface-applied sweeps that screw to the face of the door bottom, so the swap is generally straightforward, but treat it as a new install rather than a drop-in: drill pattern and blade height are not interchangeable between brands. If you would rather stay with a like-for-like vinyl-type insert, ZenSupply carries the Pemko 345V with the GREENGUARD Gold certified Eco-V insert and the Pemko 56 Series in a 36 inch Eco-V version. The 202NA's slotted holes give you room to work around existing screw holes when you change brands.
10) My door leaks water under it during driving rain. Is a neoprene sweep enough?
A sweep like the 202NA seals the gap between the door bottom and the threshold, which handles air and most water running down the face of the door. Where rain is being driven at the opening and running off the leaf, the usual fix is to add a drip cap above the sweep so water is thrown clear of the joint. ZenSupply carries the Pemko 3452 surface plate rain drip door bottom for that. The two are used together on exposed entrances, not as alternatives.
11) I want a sweep with no visible screw heads on the door face. What are my options?
The Pemko 29326NB brush door bottom sweep uses a concealed fastener design, which keeps the mounting screws out of sight on the finished face. The NGP 202NA mounts with slotted screw holes and ships with #6 x 3/4 inch stainless steel sheet metal screws, so its fasteners are exposed but the slots let you shift the sweep up or down to set the seal against the floor.
12) I am replacing sweeps on a run of 36 inch doors across a building. Which sweeps come in that size?
The NGP 202NA neoprene sweep is stocked in 36 inch, 48 inch and 60 inch lengths, so a 36 inch door and a wider pair leaf can both be covered from the same product. Among the alternatives, the Pemko 29326NB brush sweep and the Pemko 56 Series sweep are both 36 inch. If you are standardizing a fleet of openings on one part, the wider length range on the 202NA lets you keep a single sweep type across mixed door widths, trimming the aluminum housing to the leaf.
13) Which door sweep holds up in a boiler room or an unconditioned warehouse where temperatures swing hard?
The NGP 202NA is the one rated for that swing. Its chloroprene and EPDM neoprene blend operates from -20 F to 200 F and is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, with an aluminum alloy 6063 T5 temper housing and resistance to ozone, sunlight and aging. That heat and cold certification is what distinguishes it from the brush sweeps such as the Pemko 29326NB, which seal by filament contact rather than a temperature-rated elastomer blade.
14) Will an anodized aluminum door sweep corrode on a coastal or wash-down door?
The 202NA housing is aluminum alloy 6063 with a T5 temper, anodized, which is the standard architectural extrusion for exterior weatherstripping and resists corrosion well. The supplied screws are stainless steel, so the fastener is not the weak point either. The neoprene blade itself is moisture resistant and flame resistant.
15) Does the NGP 202NA come in a black or bronze finish to match my other door hardware?
The 202NA is offered with an anodized aluminum housing and a black neoprene blade. Length is the only thing you choose when ordering: 36, 48 or 60 inches. If the door hardware on the opening is dark, the aluminum housing sits low on the door face and the visible blade is black.
16) What is the difference between the Pemko 345V and the Pemko 56 Series if I am not using the NGP neoprene sweep?
Both are surface-mounted door bottom sweeps and both use a Pemko Eco-V insert. The 345V insert is GREENGUARD Gold certified, which is the one to name when a project carries an indoor air quality requirement. The 56 Series sweep is offered in a 36 inch length. Either seals the door bottom gap the same way the NGP 202NA neoprene sweep does, with a different insert material.
