Nibco 704-LF Adapter C x M - P...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$78.97

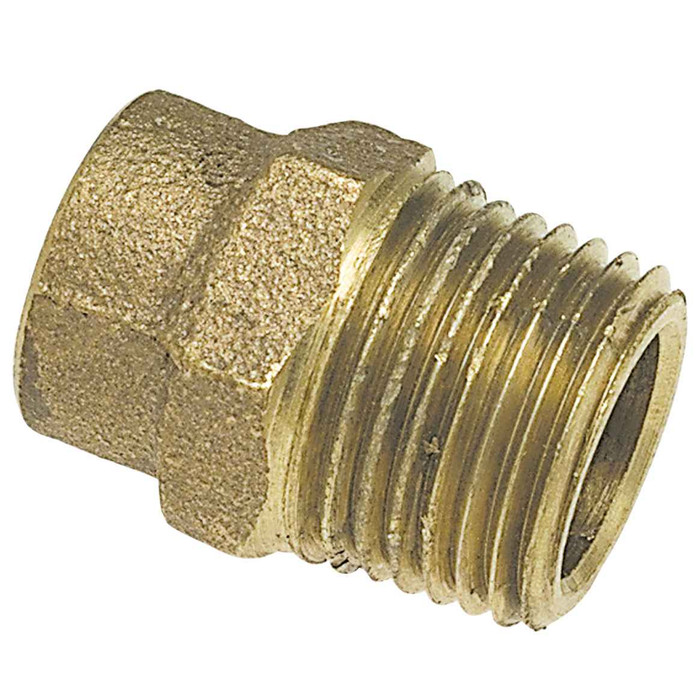

Nibco 704-LF Adapter C x M - Performance Bronze®

Nibco 704-LF Adapter C x M - Performance Bronze®

(No reviews yet) Write a Review

Model: B03110L

In Stock (leaves warehouse same day if ordered before 3pm ET)

$78.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
The male adapter features a solder cup and male NPT thread. These fittings provide a means for adapting a solder connection to a threaded connection. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. In addition to its inherent qualities of beauty, durability and low maintenance, copper's reusability makes it an ideal application in sustainable projects. NIBCO® copper fittings are manufactured in an ISO 9001 certified facility, and backed by a 50-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.

  • Dezincification resistant
  • Lead-free*
  • Silicon Performance Bronze® alloy
  • ASME B16.18 design standards
  • NSF/ANSI/CAN-61 and 372

Copper Fittings Installation Instructions

Manufacturer Resources

Product Specs

All Application(s):
Lead-Free
All Basic Material:
Lead-Free
Classification:
Solder Pressure Adapters
End Connection:
Threaded
Metal End Connection Type:
C x M (NPT)
Product Group:
Fitting
Product Type:
Solder Pressure Adapters
System Use:
Commercial Plumbing, Fire Protection, Heating, HVAC, Industrial, Irrigation, Residential Plumbing
Type of Adapter:
Reducing Size;Threaded
Product Subgroup:
Adapter
Department:
Plumbing
Product Length:
1.97 in
Product Height:
1.66 in
Product Width:
1.66 in
Product Weight:
0.375 lb

Nibco B03110L – Frequently Asked Questions

1) How does the Nibco 704-LF male adapter connect on each end?
One end is a solder cup that sweats onto copper tube, the other is a male NPT thread. It is the fitting you use to take a soldered copper run into threaded equipment, a valve, or a threaded nipple. The threaded end is male, so it screws into a female thread.
2) What size is the Nibco 704-LF C x M adapter?
It is offered in 3/4 inch by 1-1/4 inch, which makes it a reducing adapter rather than a straight size-for-size fitting. Check both numbers against your copper tube and your threaded port before ordering, since the two ends are not the same size.
3) Can I use a Nibco 704-LF bronze adapter on a heating or fire protection line, or is it potable water only?
Nibco lists it for commercial plumbing, fire protection, heating, HVAC, industrial, irrigation, and residential plumbing. It is a general purpose solder pressure adapter, not restricted to potable water.
4) What design standard does the Nibco 704-LF copper adapter meet?
It is built to ASME B16.18, the standard for cast copper alloy solder joint pressure fittings, so it mates with standard copper tube solder joints. Manufactured in an ISO 9001 certified facility.
5) Why choose a bronze male adapter instead of a wrought copper one for a threaded connection?
Threads take wrench torque, and the cast silicon bronze body handles that better than thin wrought copper. The Performance Bronze alloy is also dezincification resistant, which matters where water chemistry attacks brass threads over time.
6) Do I solder the Nibco 704-LF adapter before or after threading it in?
Solder the copper cup first with the fitting off the threaded connection wherever you can. Heat carried into an assembled joint can damage thread sealant or nearby valve seats. Nibco publishes copper fittings installation instructions covering joint prep and heating; follow those for the solder end.
