Nibco PC606-2 45-Degree Elbow ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$20.67

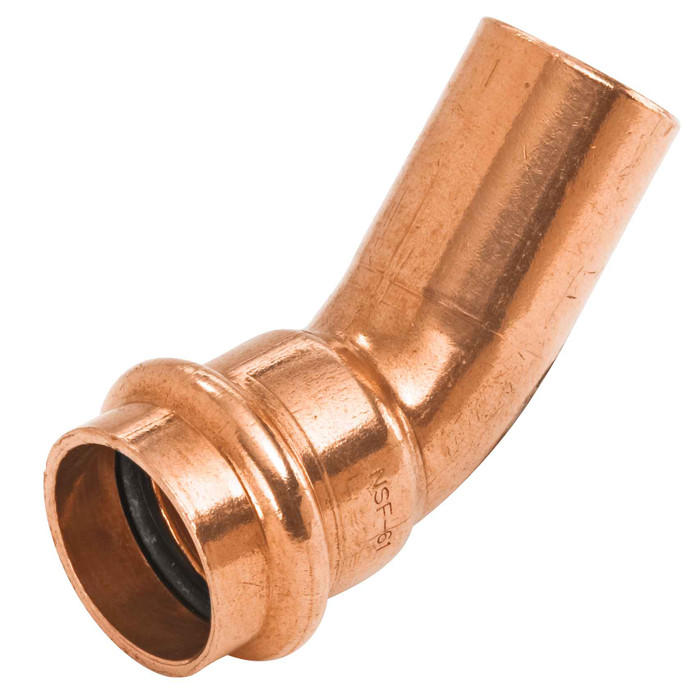

Nibco PC606-2 45-Degree Elbow Ftg x P - Wrot Copper

Nibco PC606-2 45-Degree Elbow Ftg x P - Wrot Copper

(No reviews yet) Write a Review

Model: 9046400PC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$20.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
NIBCO press fittings are the fastest, easiest way to join copper tubing systems. NIBCO® Press System® fittings are designed to join with seamless copper water tube in residential and commercial potable, hot, chilled and process water applications for plumbing and HVAC systems. The press fittings can also be installed underground. The NIBCO® Press System® is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO® Press System® applies the proven performance of press technology to NIBCO valves and fittings – the most specified flow control products in the industry. The NIBCO® Press System® features a full range of precision engineered copper and copper alloy fittings, commercial valves, accessories, pressing tools, jaws and chains. In addition to its inherent qualities of beauty, durability and low maintenance, copper's reusability makes it an ideal application in sustainable projects. NIBCO® Press System® copper fittings are backed by a 50-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.

  • Operating pressure 200 psi cwp
  • Temperature range -20-DegreeF to 250-DegreeF
  • Lead-free*
  • Dezincification resistant
  • ASTM B75 Alloy C12200 Copper
  • Complies with ASME B16/51 Performance
  • Third party certified to UPC
  • Third party certified to the performance requirements of CSA MSE 13 and PS-117

Press System Installation Instructions

Manufacturer Resources

Product Specs

All Application(s):
Lead-Free
All Basic Material:
Copper
Classification:
Press Elbows
End Connection:
Solder
Fitting Bend Angle:
45 Deg (1/8 Bend)
Metal End Connection Type:
Ftg x Prs
Product Group:
Fitting
Product Type:
Press Elbows
System Use:
Automatic Sprinkler Systems, Commercial Plumbing, Heating, HVAC, Irrigation, Lead Free*, Residential Plumbing
Type of Elbow:
Straight Size;Fitting / Street
Product Subgroup:
Elbow
Department:
Plumbing

Nibco 9046400PC – Frequently Asked Questions

1) What does Ftg x Prs mean on the Nibco PC606-2 45-degree elbow?
Ftg x Prs means one end is a fitting (street) end and the other is a press end. The fitting end is sized to slip INTO the cup of another copper fitting, and the press end accepts copper tube and gets crimped with a press tool. So the PC606-2 lets you turn 45 degrees straight off another fitting without cutting in a short nipple of tube. If you need tube on both sides of the bend, you want a press x press 45, not the street configuration.
2) Can I use a Nibco press copper 45 elbow on potable water lines?
Yes. The PC606-2 is lead-free and third party certified to UPC, and Nibco lists it for residential and commercial potable water along with hot, chilled and process water. It is wrot copper, ASTM B75 alloy C12200, and dezincification resistant.
3) What pressure and temperature can the Nibco Press System copper fittings handle?
200 psi CWP, with a working range of -20 F to 250 F. That covers domestic water, hydronic heating and chilled water loops in commercial buildings. If your system design pressure runs above 200 psi, this fitting is not the right choice.
4) What standards does the Nibco PC606-2 copper press elbow meet?
The PC606-2 is made from ASTM B75 alloy C12200 copper, complies with ASME B16.51 performance, and is third party certified to UPC and to the performance requirements of CSA MSE 13 and PS-117. It is lead-free and dezincification resistant, which is the set of marks a spec writer or institutional buyer usually needs to see on a potable water fitting.
5) Press fittings or solder for a copper 45 elbow, which should I use?
Press is the no-flame option. The Nibco Press System joint is crimped with a press tool and jaw instead of torched, so there is no hot work permit, no fire watch and no draining the line dry to get a joint to take. That is why it wins on occupied buildings, tenant retrofits and ceiling work. Soldering still makes sense where you have no press tool on the truck or no jaw in the size you need, since the tool and jaws are the real cost of going press. The PC606-2 street end still slips into a standard copper fitting cup either way.
6) How do I know a Nibco press joint was actually crimped properly?
Look for the N. When a Nibco Press System fitting is correctly crimped, a witness mark shaped like an N is clearly visible on the pressed end. That is the visual check an inspector or a foreman can make down the line without pressure testing every joint, and it is how you spot a socket someone walked past with the tool.
7) Can Nibco press copper fittings be installed underground or buried?
Yes, the Nibco Press System fittings are approved for underground installation, so a buried 45 offset on a service or irrigation run is a legitimate use. Nibco lists irrigation among the systems these fittings serve.
8) Are Nibco PC606-2 press fittings acceptable for a fire sprinkler system?
Nibco lists automatic sprinkler systems among the applications for these press fittings, alongside commercial plumbing, heating, HVAC and irrigation. The fitting is rated 200 psi CWP and -20 F to 250 F, and complies with ASME B16.51 performance. Your AHJ still governs which listed fittings go on a sprinkler main, so match it to the system's listing requirements.
9) Do I need a special jaw for each size of Nibco press fitting?
Yes, press jaws are size specific, so the 1/2 through 4 inch range of the PC606-2 means you need the matching jaw or chain for whichever size you are running. Nibco supplies pressing tools, jaws and chains as part of the Press System. Larger sizes, 2-1/2, 3 and 4 inch, are typically pressed with a chain rather than a standard jaw. Confirm your tool covers the sizes on the job before you order the fittings.
10) Is a 45-degree copper elbow the same as a 1/8 bend?
Same thing. The PC606-2 is a 45 degree elbow, which the trade and the fitting tables also call a 1/8 bend, since 45 degrees is one eighth of a full circle. If a drawing or takeoff calls for a 1/8 bend in copper, this is the fitting. A 90 degree elbow is the 1/4 bend.
