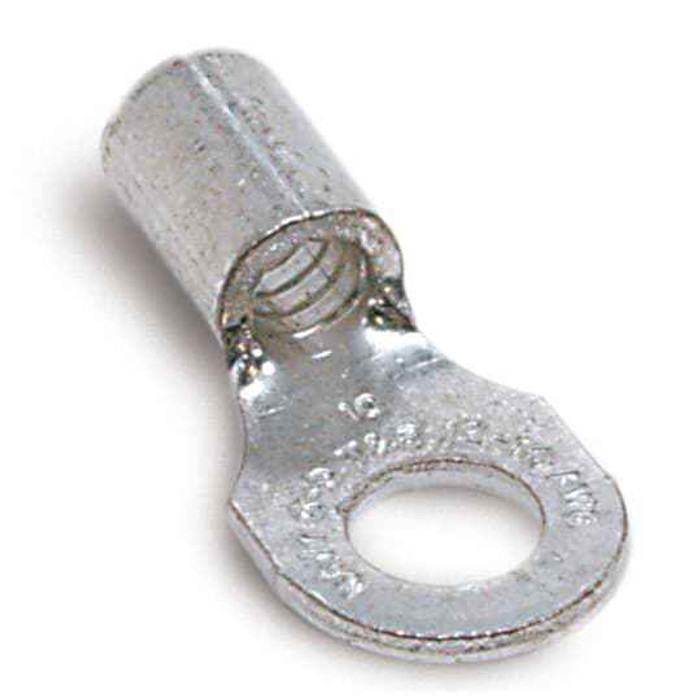

NKL PLTD UNINS RING TERM 12-10
Manufacturer Resources
Product Specs
- Application:
- Wiring terminations for wiring harness, panelboard, telecommunications, and automotive.
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 12-10 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon C26NPM – Frequently Asked Questions
1) What wire size does the Sta-Kon C26NPM ring terminal take?
The C26NPM is built for 12 to 10 AWG conductors. Anything thinner than 12 AWG will not crimp reliably in that barrel, and 8 AWG won't enter it, so size the terminal to the actual conductor, not the insulation OD.
2) Is the C26NPM terminal insulated, and do I need to sleeve it after crimping?
It's a non-insulated ring terminal, bare nickel plated copper. There's no nylon or vinyl sleeve on the barrel, so if the termination sits where it could contact an adjacent conductor or a grounded surface, plan on heat shrink or a terminal boot. For stud and lug connections inside a panel where the terminal is landed on its own screw, bare is normal practice.
3) Can I use the C26NPM ring terminal on a 480V panelboard circuit?
Yes. The terminal carries a 600 V rating, which covers 120/208, 277 and 480 V panelboard work. Its listed applications include panelboard, wiring harness, telecommunications and automotive terminations.
4) Is the Sta-Kon C26NPM UL listed for an inspected installation?
It's covered under UL file E9809. If your inspector wants listed terminations on the conductors landing in a panel or control enclosure, that file number is what you cite on the submittal.
5) Why choose a ring terminal instead of a fork or spade terminal for 12-10 AWG wire?
A ring terminal is the closed-barrel style: the screw or stud passes through the ring, so the connection cannot vibrate off the screw without the screw being fully backed out. That's why it's the usual pick for automotive and harness work and for ground studs. A fork or spade slides off a loosened screw, which is why it's used where fast disconnects matter more than retention. For 12-10 AWG at up to 600 V, the C26NPM covers the ring side of that choice.
6) Is the Sta-Kon C26NPM made in the USA for a government or institutional spec job?
Country of origin is the United States, which is what domestic-preference procurement on federal, education and healthcare projects asks for on the submittal.
7) Does the nickel plating on the C26NPM matter, or is plain tin fine?
The base metal is copper with nickel plating. Nickel holds up at higher operating temperatures and resists corrosion better than tin, which is why it gets specified for engine compartments, heater and resistive loads, and corrosive environments. For ordinary dry interior panel work, tin plated copper does the same electrical job; the nickel version is what you buy when heat or atmosphere is the problem.
8) What part number do I order to reorder the same nickel plated uninsulated ring terminal?
Order by manufacturer part number C26NPM, Sta-Kon brand. One model covers the whole 12-10 AWG range, so there is no size or finish option to specify beyond that number.
