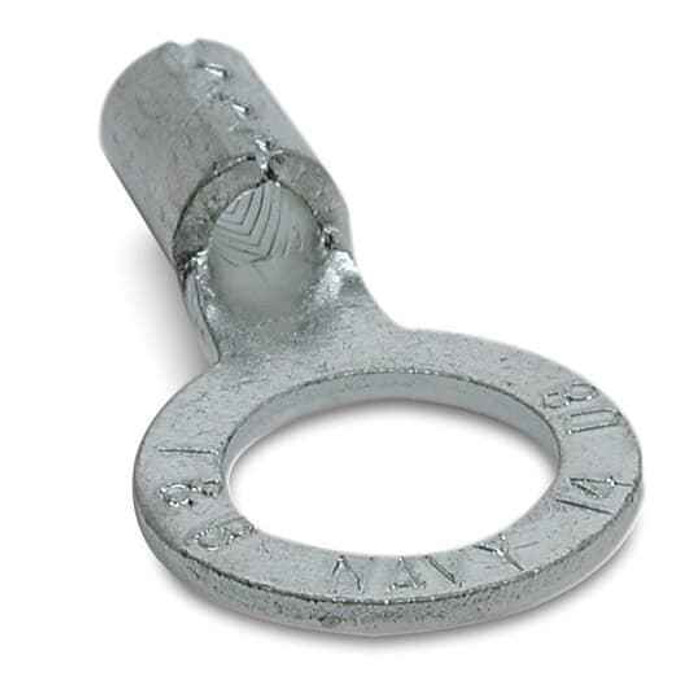

NON-INS BS RING TERM 4 1/2
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 4 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon F75 – Frequently Asked Questions
1) What wire size does the Sta-Kon F75 ring terminal take?
The F75 is sized for 4 AWG conductor. It is a non-insulated ring terminal, so the barrel is bare copper with no sleeve, and it must be crimped with a die matched to 4 AWG. If your conductor is 6 AWG or 2 AWG, this is the wrong lug.
2) Can I use the F75 ring terminal on aluminum conductor?
No. The F75 barrel is copper, so it is intended for copper conductor only. Aluminum feeders need a lug listed AL9CU or aluminum-specific; using a copper-only lug on aluminum risks a bad connection.
3) Is the Sta-Kon F75 terminal rated 600 volts?
Yes, the F75 carries a 600 V rating and is UL recognized under file E9809. Because it is non-insulated, any required insulation at the termination has to come from heat shrink or tape applied in the field.
4) Should I use a non-insulated ring terminal or an insulated one for a 4 AWG connection?
A non-insulated lug like the F75 is the choice when you are going into a panel, enclosure, or busbar where you will shrink-sleeve or tape the barrel yourself, or where the termination sits inside an insulated boot. An insulated or nylon-sleeved terminal saves that step but limits your crimp tooling and color-codes the wire range. For 4 AWG at 600 V, bare copper plus heat shrink is the common field practice.
5) Is the Sta-Kon F75 made in the USA?
Country of origin on the F75 is the United States, which is what institutional and government buyers with domestic-sourcing requirements usually need confirmed before they spec a lug.
