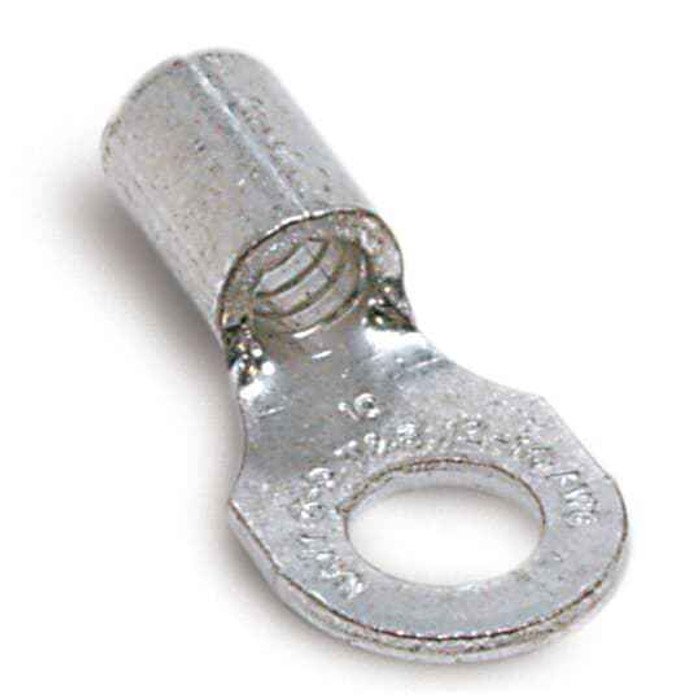

NON-INS RING TERM 12-10 BOLT 3/8
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 12-10 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon C73 – Frequently Asked Questions
1) What wire size does the Sta-Kon C73 ring terminal crimp onto?
The C73 is sized for 12-10 AWG conductors. Anything smaller than 12 AWG won't hold in the barrel properly and anything larger than 10 AWG won't enter it, so for 14-16 AWG or 8 AWG runs you need a different barrel size in the Sta-Kon line.
2) What voltage can a Sta-Kon C73 terminal be used at?
Rated 600 V, which covers standard commercial and industrial branch circuits, control panels, and motor terminations. It carries UL file E9809.
3) Is the C73 UL listed for an inspected installation?
The terminal is covered under UL file E9809, which is what an inspector or a specifying engineer on an institutional job will want to see on the submittal.
4) What material is the Sta-Kon C73 ring terminal made of, and can I use it on aluminum conductors?
The body is copper, bare and metallic in appearance with no plating color called out. Copper barrels are intended for copper conductors; for aluminum or aluminum-to-copper transitions you need a connector specifically marked AL9CU, not this one.
5) Do I need a special crimp tool for Sta-Kon non-insulated ring terminals?
Yes, a non-insulated barrel needs a crimper with a non-insulated (indent or oval) die in the 12-10 AWG range. The color-coded nests on an insulated-terminal crimper won't form this barrel correctly, and pliers will give you a joint that pulls apart under vibration.
6) Is the Sta-Kon C73 made in the USA for a Buy American job?
Country of origin on the C73 is the United States, which is what a government or federally funded project submittal normally asks for.
