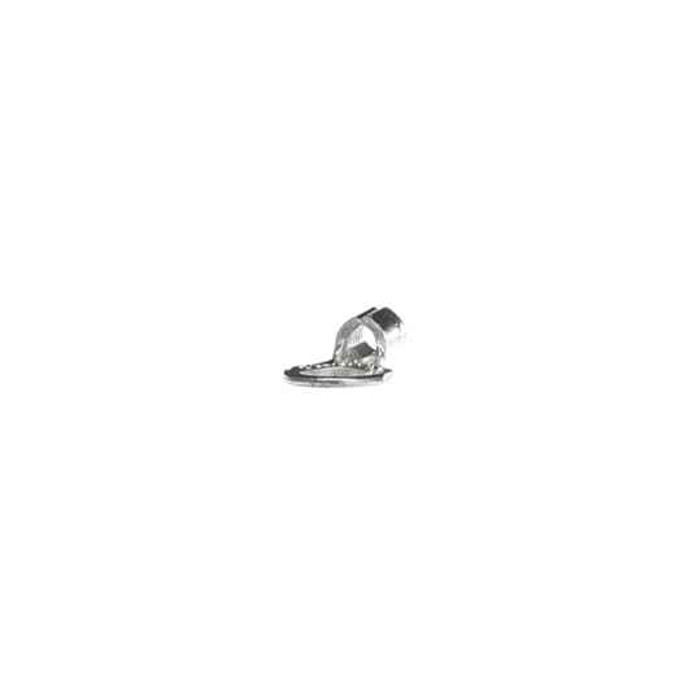

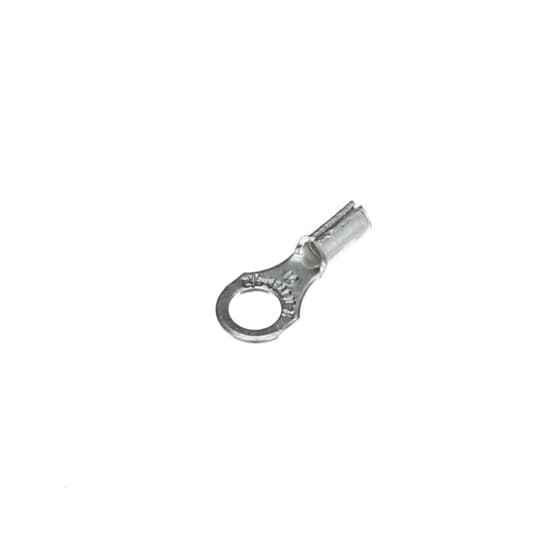

NON-INS RING TRM 18-14 No10 METAL
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 18-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon B87 – Frequently Asked Questions
1) What wire sizes does the Sta-Kon B87 ring terminal crimp?
The B87 is sized for 18 to 14 AWG stranded copper wire. One terminal covers that whole range, so an electrician stocking 16 AWG control wire and 14 AWG branch wire can use the same part for both. Outside that range you need a different Sta-Kon barrel size.
2) Can I use the B87 terminal on a 480V motor control circuit?
Yes, it carries a 600 V rating, which covers 120/208, 277/480 and typical control voltages. It is UL recognized under file E9809.
3) Is the Sta-Kon B87 insulated?
No. The B87 is a bare metal, non-insulated ring terminal with a metallic copper finish. There is no nylon or vinyl sleeve, so if the connection needs strain relief or a dielectric barrier you add heat shrink over the barrel yourself, or pick an insulated ring instead.
4) Will the B87 work for aluminum conductors?
No. The B87 barrel is copper and is intended for copper conductors in the 18 to 14 AWG range. Aluminum wire needs a terminal listed AL/CU with the appropriate inhibitor compound.
5) Do I need a special tool to crimp Sta-Kon B87 terminals?
The B87 is a non-insulated barrel, so it is crimped with a non-insulated (indent or nest) die, not the color-coded insulated jaws on a common ratchet tool. Using the insulated-terminal nest on a bare barrel gives an under-formed crimp and a joint that can pull out.
6) Is the Sta-Kon B87 ring terminal made in the USA?
Country of origin on the B87 is the United States, which matters for Buy American and domestic-preference procurement on government, school and healthcare jobs.
7) What is the manufacturer part number for this Sta-Kon ring terminal?
The part number is B87, sold under the Sta-Kon brand. Order by that designation for the non-insulated ring, 18-14 AWG, No. 10 stud.
