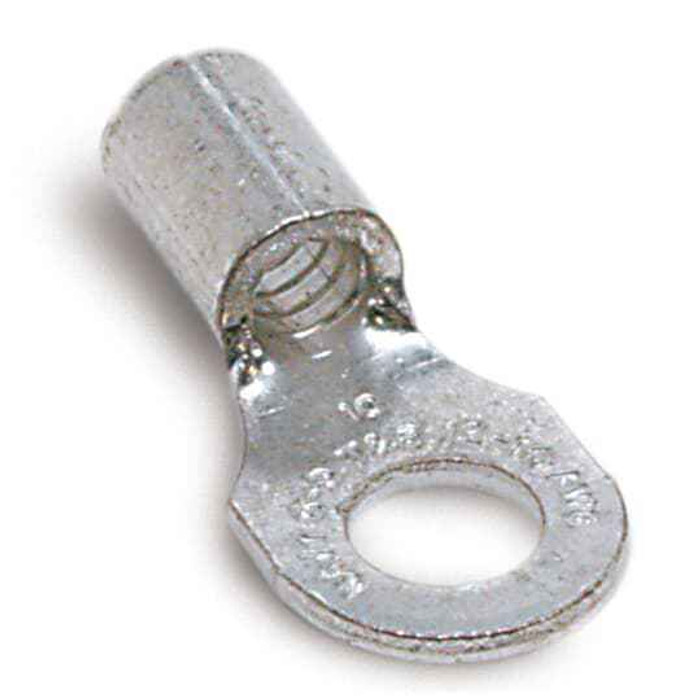

NON-INS RING TRM 22-16 BOLT 5/16
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 22-16 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon A72 – Frequently Asked Questions
1) What wire sizes does the Sta-Kon A72 ring terminal accept?
The A72 ring terminal is sized for 22 to 16 AWG stranded copper conductors. That covers the small control and signal wiring you find in panel wiring, thermostats, and low-current device leads. Anything heavier than 16 AWG will not seat in the barrel, so step up to a larger terminal for 14 AWG and above.
2) Is the Sta-Kon A72 insulated, and do I need to sleeve it after crimping?
The A72 is a non-insulated terminal, bare copper with no nylon or vinyl barrel. If the connection is in a spot where the barrel could contact an adjacent conductor or a grounded surface, add heat shrink or an insulating sleeve after crimping. Non-insulated barrels are also what you want when heat near the termination would melt a plastic sleeve, or when you need to inspect the crimp visually.
3) What voltage is the A72 ring terminal rated for?
600 volts. That covers standard commercial and industrial control circuits, panelboard wiring, and 480/277 and 208/120 distribution work. It is also UL recognized under file E9809.
4) Should I use a ring terminal like the A72 or a fork/spade terminal on a terminal block?
A ring terminal has to come off the stud to be removed, so it cannot vibrate loose or slide out from under a backed-off screw. That is why the A72 and other ring terminals are specified for motor terminations, grounding points, and anything subject to vibration. A fork or spade terminal slides in sideways and is faster to service on a crowded terminal strip, but it can walk out if the screw loosens. For a 5/16 stud carrying 22 to 16 AWG control wire, the ring is the safer termination.
5) Is the A72 terminal suitable for aluminum wire?
No. The A72 is a copper terminal intended for copper conductors. Terminating aluminum requires a connector rated AL or AL9CU with the appropriate compound; using a copper-only barrel on aluminum invites galvanic corrosion and a failing joint.
6) Can I crimp the A72 terminal with ordinary pliers or do I need a crimp tool?
Non-insulated copper barrels like the A72 need a crimp tool with a non-insulated nest, which indents the barrel and cold-welds it to the strands. Pliers flatten the barrel without compressing the conductor properly and leave a joint that heats up and pulls out. Use the die that matches the 22 to 16 AWG range.
7) Where is the Sta-Kon A72 terminal made, and will it meet a Buy American requirement?
Country of origin on the A72 is the United States, which is what institutional, government, and public works buyers need on record for domestic sourcing requirements. Confirm the specific program language on your project, since requirements vary by funding source.
8) What is the exact part number to order for the 22-16 AWG, 5/16 stud Sta-Kon ring terminal?
Order Sta-Kon A72. That single model covers the 22 to 16 AWG range with a 5/16 inch bolt hole, non-insulated copper, 600 V. There are no finish or size options to specify on it.
