NUVO Lighting 62-1784 Blink Pro Plus, 47W, 24 in. x 24in, Surface Mount LED, CCT Selectable, 90 CRI, 120/277V, Square Shape

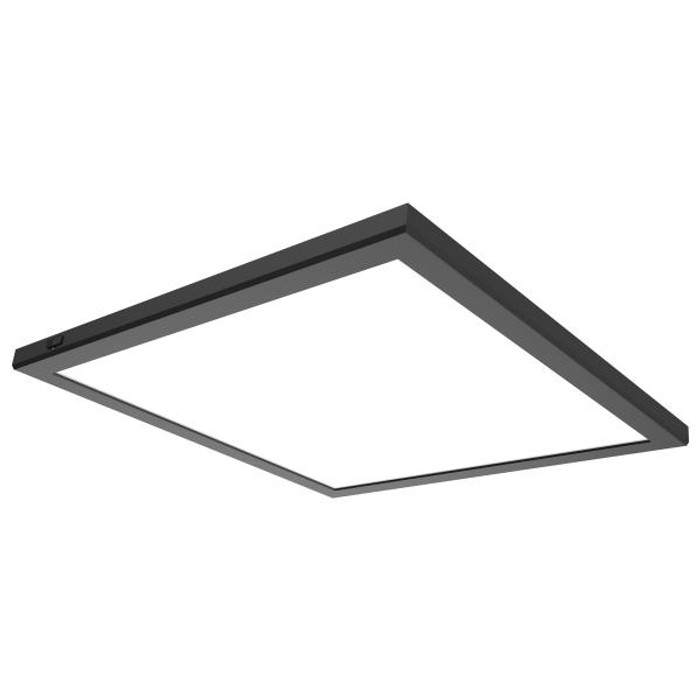

The 62-1784 is a surface mount fixture, mounted to the ceiling. Its actual panel size is 23.70 by 23.70 inches with a 1.10 inch depth, so it sits tight to the finished ceiling rather than dropping into a 2x2 grid tee. If you are filling a 2x2 grid opening, you need a lay-in troffer or flat panel built for grid, not this one. On drywall, plaster, or concrete ceilings where there is no plenum to recess into, the low 1.1 inch profile is the point of it.

Yes. The 62-1784 is a universal 120V/277V fixture, so the same part number works on a 120V branch circuit in a residential or light commercial space and on 277V in a typical commercial or institutional building. That is useful if you are standardizing one SKU across a campus with mixed panel voltages. Wattage is 47W either way.

The 62-1784 is CCT selectable, so the color temperature is chosen at the fixture rather than by ordering a specific Kelvin version. Output shifts with the setting, ranging 3550 to 3900 lumens. Color rendering is 90 CRI, which is the level spec'd where skin tones, merchandise, or finishes need to read accurately, such as healthcare exam areas, retail, and hospitality.

Indoor only, with a damp location rating. That covers enclosed bathrooms, laundry rooms, kitchens, and similar interior spaces where humidity is present but water does not hit the fixture. It is not rated for wet locations, so do not use the 62-1784 on an open soffit, in a car wash bay, or anywhere it can be sprayed or rained on.

The fixture is cETLus listed, which covers both US and Canadian requirements and is what an electrical inspector looks for on a commercial install. It is also RoHS compliant. Note the California Prop 65 disclosure on this fixture identifies lead.

Dimming is supported on the Blink Pro Plus 47W panel. The LED and driver are integrated into the fixture, so there is no separate ballast or remote driver to order and no lamp to buy. Pair it with a dimmer suited to LED loads at whichever supply voltage you are wiring it on, 120V or 277V.

No. The light source is an integrated LED, so nothing unscrews or unclips for relamping. Rated life is 50,000 hours, and at end of life the fixture is replaced rather than serviced. For a maintenance program that matters: a building running these roughly 12 hours a day is looking at over a decade before replacement, with no lamp stock to carry in the meantime.

The housing is die-cast aluminum and the fixture weighs 8.65 lbs. At that weight on a 23.70 inch square footprint, anchor into structure or blocking rather than relying on drywall alone. The aluminum body also acts as the heat sink for the integrated LED, which is why the fixture can hold a 1.1 inch profile.

Black is the finish offered on the 62-1784. If you are matching other trim or ceiling hardware in a space, that is the one option on this part number, so a white-trimmed room will show the frame as a deliberate contrast rather than blending in.
