NUVO Lighting 65-506 LED 2ft Linear Hi-Bay, 165W, 5000K, 100-277V

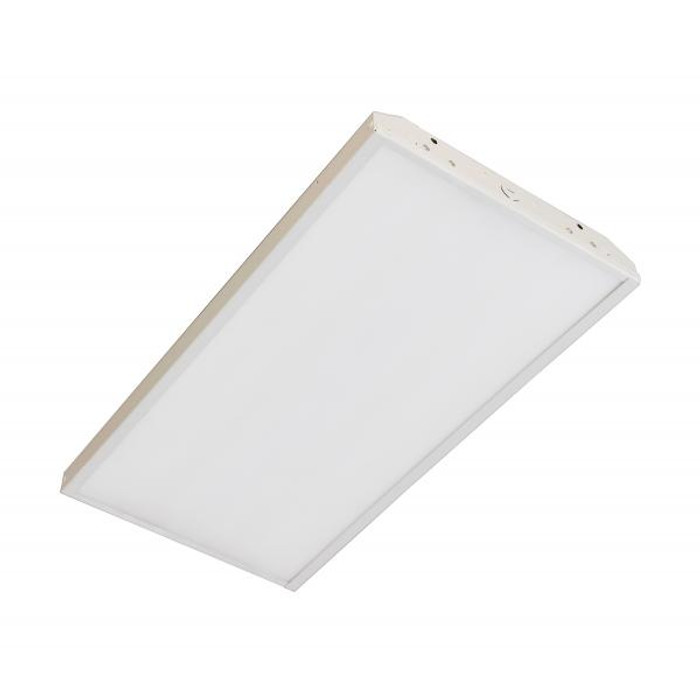

LED 2 ft. Linear Hi-Bay - 165W - 5000K - 100-277V
Manufacturer Resources
Product Specs
- CCT Selectable:
- No
- Chain Length:
- 48"
- Dimmable:
- Yes
- Lamp Base:
- Integrated
- Lamp Shape:
- Integrated LED
- Location Rating:
- Damp
- Lumens:
- 22275L
- Product Type:
- Linear Hi-Bay
- RoHS Compliant:
- Yes
- Warranty:
- 5 Year Limited - Fixtures
- Bulb Base:
- Integrated LED
- Bulbs Included:
- Integrated
- Product Group:
- Commercial Indoor Lighting
- CRI:
- 80
- Product Subgroup:
- Linear Hi-Bay
- Safety Listing:
- cULus
- Subcategory:
- Linear
- Technology:
- LED
- Avg Rated Hours:
- 50000
- Included Components:
- (2) 48" Chain; (2) V-Clips; (1) 1.02" Mounting Bracket
- CA Prop 65 Chemicals:
- Lead
- Base Material:
- Aluminum
- Location Indoor/ Outdoor:
- Indoor
- Product Voltage:
- 100V-277V
- Product Length:
- 23.82"
- Mounting Method:
- Ceiling: Chain
- Product Style:
- Utility
- Product Height:
- 2.68"
- Product Category:
- Hi-Bay
- Product Weight:
- 11.24lbs
- Product Width:
- 17.32"
- Product Wattage:
- 165W
NUVO Lighting 65-506 – Frequently Asked Questions
1) Will the NUVO 65-506 hi-bay run on 208V or 480V shop power?
The 65-506 linear hi-bay is a 100-277V universal input fixture, so 120, 208, 240 and 277V all work with no reconfiguring. It will not run on 480V. For a 480V service you need either a step-down transformer or a 347-480V rated fixture.
2) How does the NUVO 65-506 hi-bay mount, and is the hardware included?
It hangs from the ceiling on chain, and the mounting kit ships with the fixture: two 48 inch chains, two V-clips, and one 1.02 inch mounting bracket. You supply the ceiling anchor points. If your ceiling needs a cable aircraft kit, surface mounting, or pendant conduit stems, that hardware is not part of this package.
3) Can this LED hi-bay be installed in a wash bay or unheated warehouse?
It is an indoor fixture with a damp location rating, so covered unheated spaces and areas with humidity or condensation are fine. It is not wet-location rated, so do not use it where it will be hit directly by water spray, hose-down cleaning, or open weather exposure.
4) How much light does the 165W NUVO 65-506 put out, and what ceiling height does that suit?
22,275 lumens at 165W, 5000K daylight white, 80 CRI. That output is aimed at high-bay spaces, warehouses, shops and garages. At roughly 135 lumens per watt it is a one-for-one replacement class for older 400W metal halide or 6-lamp T8/T5HO high bays on light output, while drawing 165W.
5) Is the NUVO 65-506 hi-bay UL listed and acceptable for a commercial inspection?
It carries a cULus safety listing, which covers both US and Canadian installations, and it is RoHS compliant. Housing is aluminum. Note the California Prop 65 disclosure for lead, which matters if you are submitting to a California public agency or institutional spec.
6) Is the NUVO 65-506 hi-bay dimmable, and can I change the color temperature?
Dimming is supported, but the color temperature is fixed. The fixture is 5000K only and is not CCT selectable, so if you need 4000K in part of the building you have to order a different fixture for those bays rather than switch this one over.
7) What are the actual dimensions and weight of the NUVO 65-506 2ft linear hi-bay?
The housing measures 23.82 inches long, 17.32 inches wide, and 2.68 inches high, and it weighs 11.24 lbs. That is light enough for standard chain hanging from joists or a bar joist clip, and the low 2.68 inch profile matters in spaces with tight clearance below deck or sprinkler lines.
8) Can the LEDs or driver be replaced in the NUVO 65-506, or is the whole fixture disposable?
The LEDs are integrated, with no lamp base and no replaceable lamp, so there is nothing to relamp. Service life is rated at 50,000 average hours. For a facility standardizing on these, plan maintenance as fixture replacement rather than lamp stock.
