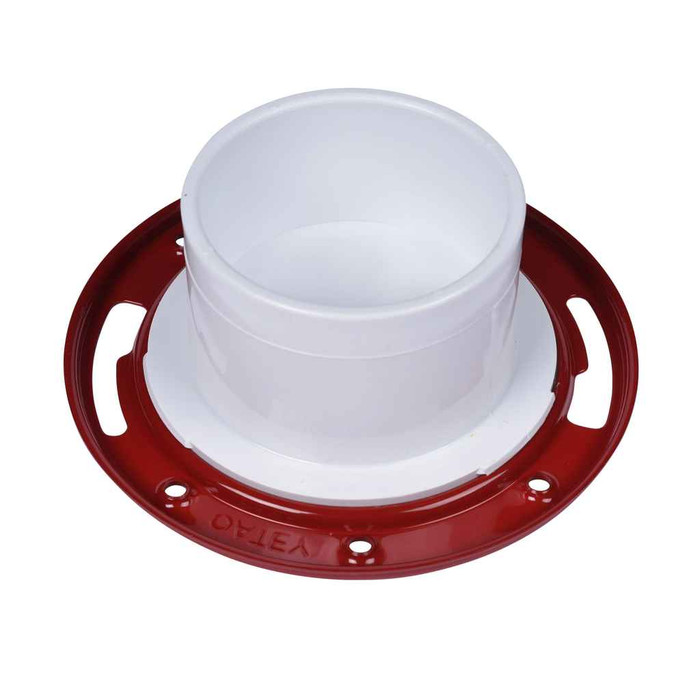

OATEY 43533 3 in. or 4 in. PVC Long Pattern Closet Flange with Metal Ring and Test Cap

OATEY 43533 3 in. or 4 in. PVC Long Pattern Closet Flange with Metal Ring and Test Cap

(No reviews yet) Write a Review

Model: 43533
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$64.29
$14.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3 in. or 4 in. PVC Long Pattern Closet Flange with Metal Ring and Test Cap

  • Features

    • UPC and ASTM D2665 listed
    • Metal ring with test cap
    • PVC plastic
    • Longer toilet flange length allows for pipes that are cut short
    • Solvent welds inside of 4 in. or over 3 in. PVC Sch. 40 DWV pipe
    • 6 screw holes are designed to meet any toilet installation type and provide secure attachment to floor
    • Covered under Oatey's Limited warranty
    • Bolt slot shelf stabilizes bolt during toilet installation


43533 - spec sheet

Manufacturer Resources

Product Specs

Volume:
0.097
Department:
Plumbing
Product Group:
Plumbing
Product Subgroup:
Flashing and Flanges
Product Type:
Flange
Product Weight:
1.667

OATEY 43533 – Frequently Asked Questions

1) Will the Oatey 43533 closet flange fit 3 inch or 4 inch DWV pipe?
Both. The 43533 long pattern closet flange solvent welds inside 4 inch PVC Sch. 40 DWV pipe, or over the outside of 3 inch PVC Sch. 40 DWV pipe. One part covers either rough-in, so you don't have to know which size is under the floor before you buy.
2) My toilet drain pipe was cut too short below the finished floor. Will a long pattern flange fix that?
That is exactly what the long pattern body is for. The 43533 has a longer barrel than a standard closet flange, so it reaches down into a pipe that was cut short and still lets the ring sit on the finished floor. Standard-depth flanges are what leave you shimming or cutting in a repair coupling on that job.
3) Can I use the Oatey 43533 on ABS or cast iron drain pipe?
No. This is a PVC flange that solvent welds to PVC Sch. 40 DWV pipe, and PVC cement will not bond ABS or cast iron. For an ABS system you need an ABS closet flange, and for cast iron or an unknown pipe material you want a mechanical or expanding closet flange that clamps inside the pipe instead of gluing.
4) Does the Oatey 43533 flange have a metal ring or an all-plastic one?
Metal ring on a PVC body. The plastic barrel takes the solvent weld to the DWV pipe and the metal ring carries the closet bolts and the floor screws, which is the combination most inspectors and plumbers want under a toilet in commercial or multi-family work. It also ships with a test cap in the ring.
5) What is the test cap on the Oatey 43533 for, and do I need it after the toilet goes on?
The test cap seals the flange so the DWV system can be pressure or water tested before the fixture is set. You knock it out and discard it when you're ready to install the toilet. It is included with the flange, so you don't order a separate knockout plug for the rough-in test.
6) Do the closet bolts stay put while I set the toilet on an Oatey 43533 flange?
The ring has a bolt slot shelf that holds the bolt upright while you drop the bowl over it. That is the difference between a one-person set and having someone hold the bolts vertical while you lower a china bowl blind onto a wax ring.
7) How many screw holes does the Oatey 43533 flange have for fastening to the floor?
Six screw holes around the ring, plus the bolt slots for the closet bolts. Six gives you a fastening pattern that lands on solid material whether you're screwing into wood subfloor, plywood over concrete, or anchoring into slab, and it matches the common toilet installation patterns.
