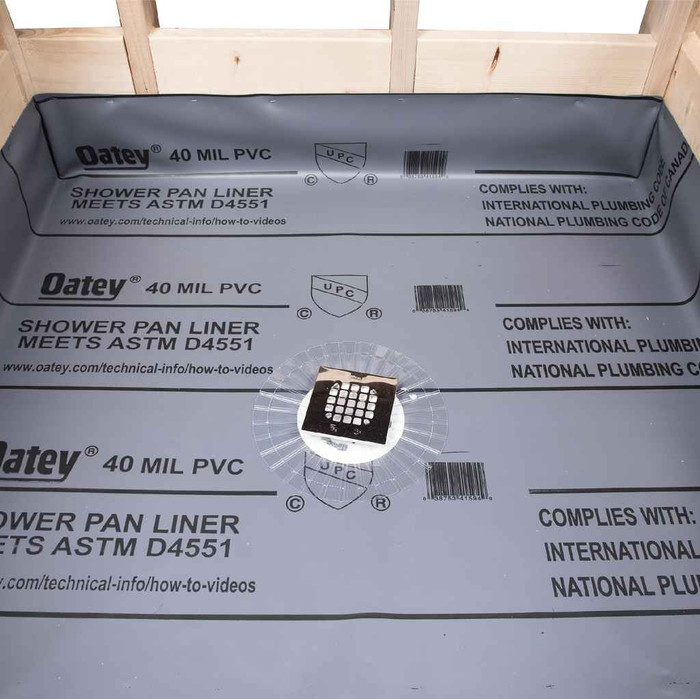

OATEY 41596 4 ft. x 50 ft. 40 Mil Gray – Linear Foot, PVC Shower Pan Liner Roll

OATEY 41596 4 ft. x 50 ft. 40 Mil Gray – Linear Foot, PVC Shower Pan Liner Roll

(No reviews yet) Write a Review

Model: 41596
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$594.29
$544.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
4 ft. x 50 ft. 40 Mil Gray – Linear Foot, PVC Shower Pan Liner Roll

  • Features

    • IAPMO Listed
    • Made of durable, abrasion-resistant 40 mil thick flexible PVC for long-lasting use
    • Recommended for use with Oatey X-15 bonding adhesive and corner dams, sold separately
    • For tile showers or other concealed waterproofing applications
    • Meets ASTM Spec D4551
    • 4 ft. x 50 ft. roll
    • Ready-to-use waterproofing membrane
    • Great for new construction and remodels
    • Superior cold weather characteristics
    • Marked in 6 in. increments for ease of measuring


41596 - spec sheet

Manufacturer Resources

Product Specs

Volume:
1.467
Department:
Plumbing
Product Group:
Plumbing
Product Subgroup:
Fittings
Product Type:
General Fittings
Product Weight:
57.05

OATEY 41596 – Frequently Asked Questions

1) What adhesive and corners do I need to order with Oatey PVC shower pan liner?
The liner itself is a ready-to-use membrane, but the seams and corners are not. Oatey calls for X-15 bonding adhesive and preformed corner dams with this 40 mil PVC liner, and neither is packed with the roll. Budget for both on the same order or the pan does not get finished the day it is laid.
2) Is 40 mil PVC shower pan liner approved for a permitted job?
The Oatey 41596 gray PVC liner is IAPMO Listed and meets ASTM D4551, the spec that covers poly(vinyl chloride) plastic flexible concealed water containment membrane. Those are the two items a plumbing inspector normally wants to see on a concealed shower pan.
3) Can I use this PVC liner under a tile shower, or is it a surface waterproofing?
It goes under the mud bed, not on top. The 40 mil PVC membrane is built for concealed waterproofing: it lines the pan, turns up the curb and walls, and is then covered by the mortar bed and tile. If you want a bonded, trowel-applied waterproofing that sits directly under the tile, that is a different product entirely.
4) Will PVC shower pan liner crack if it is installed in cold weather?
Oatey rates this 40 mil PVC liner for superior cold weather characteristics, so it stays flexible enough to fold into corners on an unheated jobsite. The material is also abrasion resistant, which matters when a mud bed is packed over it and when crew traffic crosses the pan during rough-in.
5) What is the Oatey part number for the 4 ft x 50 ft gray 40 mil shower pan liner?
Order it as Oatey 41596. That number covers the gray 40 mil PVC shower pan liner in the 4 ft by 50 ft roll, and it carries UPC 038753415963 on the carton if you are matching against a packing list.
6) Is this liner suitable for both new construction and a bathroom remodel?
Both. Oatey lists the 41596 PVC liner for new construction and remodel work, and the full 4 ft width lets you line a standard stall in one piece so there is no seam in the floor of the pan. On a remodel you still need X-15 adhesive for the curb and corners.
