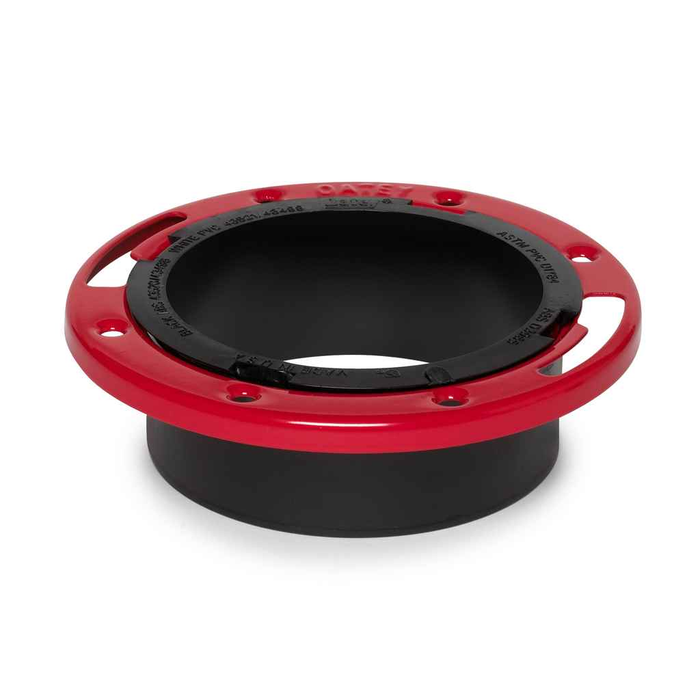

OATEY 43520 4 in. ABS Closet Flange with Metal Ring without Test Cap

OATEY 43520 4 in. ABS Closet Flange with Metal Ring without Test Cap

(No reviews yet) Write a Review

Model: 43520
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$64.29
$14.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
4 in. ABS Closet Flange with Metal Ring without Test Cap

  • Features

    • Can be rotated to allow precise alignment of bolts and screws
    • Toilet flange sits flush on floor
    • For warranty product details, refer to the Oatey Limited Warranty document
    • Metal ring provides added strength
    • Patented bolt slot shelf eliminates bolt fall through
    • UPC and ASTM D2661 listed
    • Test cap not included
    • Solvent welds over 4 in. ABS Sch. 40 DWV pipe
    • Fast Set™ toilet flange with metal ring
    • 6 screw holes provided for installation versatility


43520 - spec sheet

Manufacturer Resources

Product Specs

Volume:
0.049
Department:
Plumbing
Product Group:
Plumbing
Product Subgroup:
Flashing and Flanges
Product Type:
Flange
Product Weight:
1.25

OATEY 43520 – Frequently Asked Questions

1) Will the toilet closet bolts pull through this flange when I tighten the toilet down?
Oatey's patented bolt slot shelf on the 43520 keeps the closet bolts from dropping through the slot while you set the bowl, and the stamped metal ring adds strength around the bolt area. The ring also rotates, so you can line the bolts up square to the wall before cementing.
2) Is a test cap included with the Oatey 43520?
No. The 43520 ships without a test cap, so if you need to pressure or water test the DWV system before the toilet goes on, order a knockout test cap version or a separate cap. Everything else you need for a standard set, the flange body with its metal ring and the bolt slots, is part of the flange.
3) How does this flange sit relative to the finished floor?
The 43520 is made to sit flush on the finished floor, which is where a closet flange should land for a standard wax ring to seal. If your rough pipe ends below the finished floor after tile or new underlayment goes down, you will need a spacer or extension ring rather than stacking wax.
4) Should I use an ABS flange with a metal ring or an all-plastic one?
The metal ring version, like the 43520, puts a stamped steel ring at the bolt slots where the load from the closet bolts concentrates, which is the usual choice on remodels and higher-traffic or commercial restrooms. An all-plastic ring avoids any corrosion concern and is common in residential new construction. Either way the body must match your pipe material, ABS here.
5) How many screws does the Oatey 43520 flange take to fasten to the floor?
Six screw holes are provided around the ring, which gives you options when a joist, a subfloor seam, or an old fastener pattern is in the way. Screws are not part of the flange, so pick fasteners suited to your substrate, wood subfloor versus concrete.
