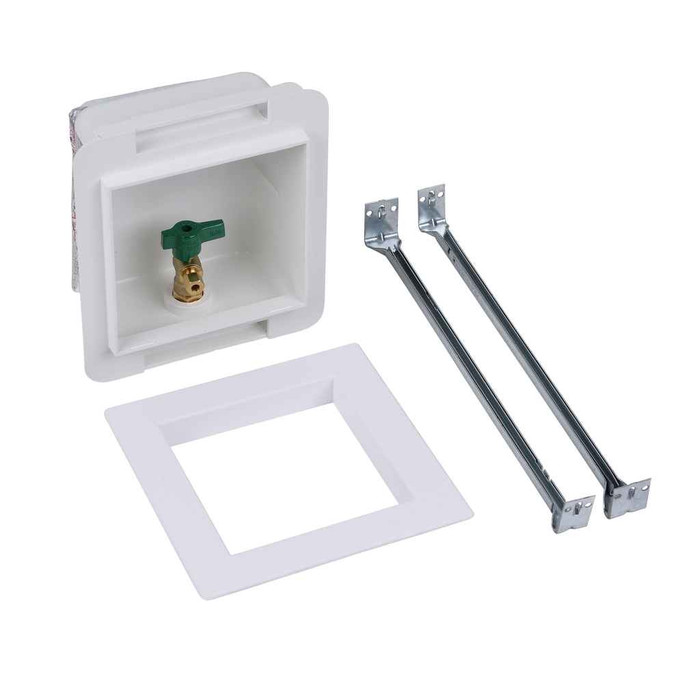

OATEY 39119 Fire Rated, 1/4 Turn, F1807, Low Lead, Ice Maker Outlet Box - Standard Pack

OATEY 39119 Fire Rated, 1/4 Turn, F1807, Low Lead, Ice Maker Outlet Box - Standard Pack

(No reviews yet) Write a Review

Model: 39119
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$231.43
$181.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Fire Rated, 1/4 Turn, F1807, Low Lead, Ice Maker Outlet Box - Standard Pack

  • Features

    • Warnock Hersey certified, for 1-hour and 2-hour fire-rated walls
    • Box made of Bulk Molding Compound (BMC) with UL-classified insulating material
    • For warranty product details, refer to the Oatey Limited Warranty document
    • faceplate accommodates up to two layers of 5/8" gypsum
    • 1/4 turn Low-Lead brass ball valve
    • Available with multiple tailpiece configurations
    • Adjustable metal mounting brackets


39119 - spec sheet

Manufacturer Resources

Product Specs

Box Dimensions:
5-9/10"W x 5-4/5"H x 3-3/4"D
Faceplate Dimensions:
8-1/8"W x 8-1/16"H
Volume:
0.416
Department:
Plumbing
Product Group:
Plumbing
Product Subgroup:
Fittings
Product Type:
General Fittings
Product Weight:
2

OATEY 39119 – Frequently Asked Questions

1) Can the Oatey 39119 ice maker outlet box be installed in a fire-rated wall?
Yes. The 39119 is Warnock Hersey certified for use in 1-hour and 2-hour fire-rated walls. The box itself is Bulk Molding Compound (BMC) with UL-classified insulating material, which is what lets it penetrate a rated assembly without breaking the rating. That makes it the right choice for multi-family demising walls and corridor walls where a standard plastic outlet box is not allowed.
2) Is the valve in the Oatey 39119 lead free for potable water?
The 39119 uses a low-lead brass ball valve, so it is suited to potable water supply for an ice maker or refrigerator water line. It is a 1/4 turn valve, meaning a quarter rotation of the handle takes it full open to full closed, which is faster to shut off in an emergency than a multi-turn stop and less prone to the packing leaks you get from older compression stops.
3) Do I need to buy mounting brackets separately for the Oatey 39119 ice maker box?
No. Adjustable metal mounting brackets come with the 39119, so the box ships ready to nail or screw between studs. What you supply on site is the fasteners and the supply line itself. The unit weighs 2 pounds, so it is a one-hand set for the rough-in.
4) What is the Oatey part number for the fire rated F1807 ice maker outlet box?
Order it as Oatey 39119. That number covers the fire-rated ice maker outlet box with the 1/4 turn low-lead valve and the F1807 PEX crimp tailpiece, in standard pack. Oatey builds this same box body in several tailpiece configurations under different numbers, so quote the 39119 specifically if the spec calls for F1807.
