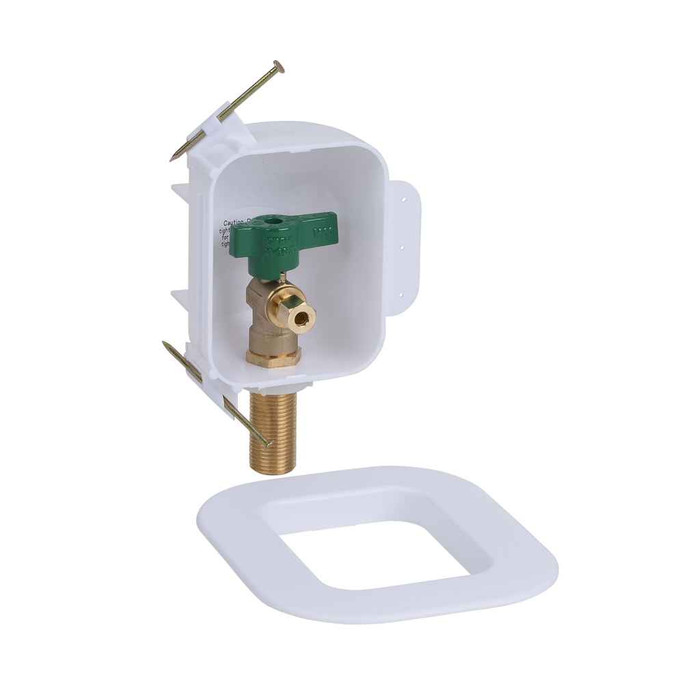

OATEY 39134 I2K, 1/4 Turn, Copper, Low Lead, Ice Maker Outlet Box - Standard Pack

OATEY 39134 I2K, 1/4 Turn, Copper, Low Lead, Ice Maker Outlet Box - Standard Pack

(No reviews yet) Write a Review

Model: 39134
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$108.57
$58.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
I2K, 1/4 Turn, Copper, Low Lead, Ice Maker Outlet Box - Standard Pack

  • Features

    • No support bracket needed
    • Valves comply with requirements of NSF 61, Section 9
    • For warranty product details, refer to the Oatey Limited Warranty document
    • Right or left hand installation
    • Preloaded nails
    • Provides quick, safe water supply and shut-off for refrigerator ice maker and water dispenser


39134 - spec sheet

Manufacturer Resources

Product Specs

Box Dimensions:
3-1/4"W x 4"H x 2-1/2"D
Faceplate Dimensions:
5"W x 6"H
Volume:
0.067
Department:
Plumbing
Product Group:
Plumbing
Product Subgroup:
Fittings
Product Type:
General Fittings
Product Weight:
0.8

OATEY 39134 – Frequently Asked Questions

1) Does the Oatey 39134 ice maker box need a support bracket or blocking between the studs?
No bracket required. The 39134 mounts with preloaded nails straight to the stud, so a framer or plumber can set it during rough-in without adding blocking.
2) Is the Oatey 39134 ice maker outlet box safe for potable drinking water lines?
The valve is low lead and complies with NSF 61, Section 9. That is the potable water requirement that matters when the box feeds a refrigerator water dispenser as well as the ice maker.
3) Is the Oatey 39134 for copper supply lines or PEX?
The 39134 is the copper version, so it is intended to be sweated or connected to a copper supply stub. If your rough-in is PEX, you want the PEX-connection version of the ice maker box rather than this one.
4) Can the Oatey 39134 be installed on either side of the stud bay?
Yes. It is built for right or left hand installation, so you nail it to whichever stud puts the valve on the side your refrigerator supply runs. That matters on retrofits where the existing water line comes in from a fixed direction.
5) What kind of shutoff valve is in the Oatey 39134 and why choose quarter turn?
It uses a 1/4 turn valve with a copper connection. Quarter turn ball-style valves shut fully with a 90 degree handle move and tend not to seize the way an old multi-turn stop does after years sitting open, which is why property managers standardizing on ice maker boxes across units usually spec them.
6) What is the Oatey 39134 ice maker box actually used for?
It is the recessed wall box behind a refrigerator that gives you a single shutoff point for the ice maker and the door water dispenser. Instead of a loose valve and coiled tubing behind the unit, the supply terminates in the box and the fridge line connects there, flush with the wall so the refrigerator can sit tight.
7) What is the Oatey part number and pack for the copper quarter turn ice maker box?
Order Oatey 39134, the I2K copper low lead quarter turn ice maker outlet box in standard pack. Each unit runs about 0.8 lbs.
