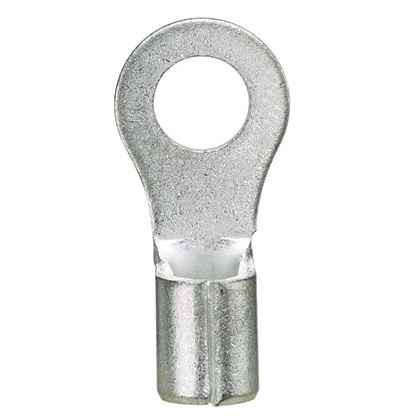

Panduit P18-6R-C Pan-Term P18-6R-C Ring Terminal

Panduit Pan-Term Ring Terminal 18-22 AWG Tin-Plated Copper #6 Stud

(No reviews yet) Write a Review

Model: P18-6R-C
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.97
$31.45
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Term Ring Terminal 18-22 AWG Tin-Plated Copper #6 Stud

Professional electrical connection solution for reliable wire termination

The Panduit Pan-Term Ring Terminal delivers professional-grade electrical connections for 18-22 AWG copper conductors with #6 stud compatibility. This tin-plated copper terminal features brazed seam construction and non-insulated design for maximum conductivity and durability in demanding electrical applications. UL Listed and CSA Certified for professional installations requiring reliable wire termination solutions.

Professional Features & Benefits

  • 18-22 AWG Wire Range: Accommodates common wire sizes for versatile electrical connection applications
  • Tin-Plated Copper Construction: Provides superior conductivity and corrosion resistance for long-lasting performance
  • Brazed Seam Design: Ensures robust mechanical connection and electrical continuity under load
  • #6 Stud Compatibility: Standard stud size for common electrical panel and equipment connections
  • 2000V Maximum Rating: High voltage capability for demanding electrical applications
  • UL Listed & CSA Certified: Meets rigorous safety standards for professional electrical installations
  • 150�C Operating Temperature: Reliable performance in high-temperature electrical environments

Technical Specifications

  • Arra Compliant: Y
  • Barrel Type: Standard
  • Base Material: Copper
  • California Pro65 Cancer: No
  • Country Of Origin: Mexico
  • Ean: 74983802029
  • Finish Coating: Tin-Plated
  • For Use With: CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
  • Gtin Carton: 5.0075E+13
  • Gtin Package: 74983802029
  • Hazardous Material Flag: N
  • Inside Diameter In : 0.07
  • Inside Diameter Mm : 1.8
  • Insulation Material: Non-Insulated
  • Lead Content Indicator: N
  • Maximum Copper Conductor Size Awg : 18
  • Maximum Metric Conductor Size Mm : 1
  • Maximum Operating Temperature C : 150
  • Maximum Operating Temperature F : 302
  • Maximum Voltage V : 2000
  • Maximum Wire Size Awg : 18
  • Mercury Content Indicator: N
  • Min Order Qty: 100
  • Minimum Copper Conductor Size Awg : 22
  • Minimum Wire Size Awg : 22
  • Outer Diameter In : 0.25
  • Outer Diameter Mm : 6.4
  • Overall Length In : 0.62
  • Overall Length Mm : 15.7
  • Overall Width In : 0.25
  • Overall Width Mm : 6.4
  • Packaging Type: Bottle
  • Pallet Quantity: 0
  • Pallet Volume: 0
  • Pallet Weight: 0
  • Product Segment: IEI
  • Product Type: Ring Terminal
  • Reach Status: N
  • Rohs Compliant: Compliant
  • Seam Type: Brazed
  • Standard Carton Volume Ft3: 0.0398
  • Standard Carton Weight Pounds: 1.8
  • Standard Package Volume Ft3: 0.004
  • Standard Package Weight Pounds: 0.18
  • Std Carton Height In: 3.8
  • Std Carton Height Mm: 96.52
  • Std Carton Length In: 9.55
  • Std Carton Length Mm: 242.57
  • Std Carton Width In: 4
  • Std Carton Width Mm: 101.6
  • Std Ctn Qty: 1000
  • Std Package Height In: 1.8
  • Std Package Height Mm: 45.72
  • Std Package Length In: 3.6
  • Std Package Length Mm: 91.44
  • Std Package Width In: 1.8
  • Std Package Width Mm: 45.72
  • Std Pkg Qty : 100
  • Std Pkg Uom: Piece
  • Stud Hole Size In : #6
  • Stud Hole Size Mm : 3.5
  • Stud Size: #6
  • Tongue Thickness In : 0.03
  • Tongue Thickness Mm : 0.8
  • Tongue Width In : 0.25
  • Tongue Width Mm : 6.4
  • Wire Strip Length In : Sep-32
  • Wire Strip Length Mm : 7.1

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Electrical Panel Connections
  • Control Cabinet Wiring
  • Motor Control Centers
  • Industrial Equipment Terminations
  • Commercial Electrical Systems
  • Maintenance and Repair Operations
  • Professional Electrical Installations

Why Choose Panduit Quality?

Panduit Pan-Term Ring Terminals deliver proven reliability with UL Listed and CSA Certified safety compliance. The tin-plated copper construction and brazed seam design ensure long-lasting performance in demanding electrical environments, while RoHS compliance and professional certifications provide confidence for critical electrical connection applications.

Manufacturer Resources

Product Specs

Arra Compliant:
Y
Barrel Type:
Standard
Base Material:
Copper
California Pro65 Cancer:
No
Country Of Origin:
Mexico
Ean:
74983802029
Finish Coating:
Tin-Plated
For Use With:
CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
Gtin Carton:
5.0075E+13
Gtin Package:
74983802029
Hazardous Material Flag:
N
Inside Diameter In :
0.07
Inside Diameter Mm :
1.8
Insulation Material:
Non-Insulated
Lead Content Indicator:
N
Maximum Copper Conductor Size Awg :
18
Maximum Metric Conductor Size Mm :
1
Maximum Operating Temperature C :
150
Maximum Operating Temperature F :
302
Maximum Voltage V :
2000
Maximum Wire Size Awg :
18
Mercury Content Indicator:
N
Min Order Qty:
100
Minimum Copper Conductor Size Awg :
22
Minimum Wire Size Awg :
22
Outer Diameter In :
0.25
Outer Diameter Mm :
6.4
Overall Length In :
0.62
Overall Length Mm :
15.7
Overall Width In :
0.25
Overall Width Mm :
6.4
Packaging Type:
Bottle
Pallet Quantity:
0
Pallet Volume:
0
Pallet Weight:
0
Product Segment:
IEI
Product Type:
Ring Terminal
Reach Status:
N
Rohs Compliant:
Compliant
Seam Type:
Brazed
Standard Carton Volume Ft3:
0.0398
Standard Carton Weight Pounds:
1.8
Standard Package Volume Ft3:
0.004
Standard Package Weight Pounds:
0.18
Std Carton Height In:
3.8
Std Carton Height Mm:
96.52
Std Carton Length In:
9.55
Std Carton Length Mm:
242.57
Std Carton Width In:
4
Std Carton Width Mm:
101.6
Std Ctn Qty:
1000
Std Package Height In:
1.8
Std Package Height Mm:
45.72
Std Package Length In:
3.6
Std Package Length Mm:
91.44
Std Package Width In:
1.8
Std Package Width Mm:
45.72
Std Pkg Qty :
100
Std Pkg Uom:
Piece
Stud Hole Size In :
#6
Stud Hole Size Mm :
3.5
Stud Size:
#6
Tongue Thickness In :
0.03
Tongue Thickness Mm :
0.8
Tongue Width In :
0.25
Tongue Width Mm :
6.4
Wire Strip Length In :
Sep-32
Wire Strip Length Mm :
7.1
