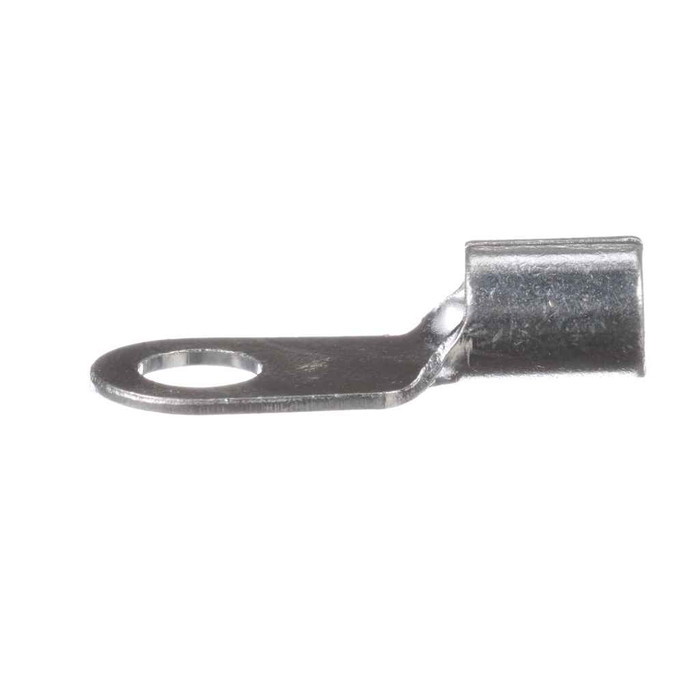

Panduit P6-14R-E Pan-Term® P6-14R-E Ring Terminal, Bare, 6 AWG, 1/4" Stud, PK20

Panduit Pan-Term� Ring Terminal 6 AWG 1/4" Stud Tin-Plated Copper Bare Terminal

(No reviews yet) Write a Review

Model: P6-14R-E
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$53.18
$3.18
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Term� Ring Terminal 6 AWG 1/4" Stud Tin-Plated Copper Bare Terminal

Professional electrical connections for reliable power distribution

The Panduit Pan-Term� Ring Terminal delivers dependable electrical connections for 6 AWG copper conductors with 1/4" stud applications. This bare terminal features tin-plated copper construction with brazed seam construction for maximum conductivity and corrosion resistance. Designed for professional electrical installations requiring secure, long-lasting connections in power distribution systems.

Professional Features & Benefits

  • 6 AWG Wire Capacity: Precisely engineered for 6 AWG copper conductors ensuring optimal fit and electrical performance
  • 1/4" Stud Size: Standard stud hole diameter provides secure mechanical connection to electrical equipment and panels
  • Tin-Plated Copper Construction: Superior conductivity with enhanced corrosion resistance for long-term reliability
  • Brazed Seam Design: Professional seam construction ensures maximum strength and electrical integrity under load
  • 2000V Maximum Voltage Rating: High voltage capability suitable for demanding electrical applications
  • 302�F Operating Temperature: Withstands elevated temperatures in industrial and commercial environments
  • cULus Listed & CSA Certified: Meets rigorous safety standards for professional electrical installations

Technical Specifications

  • Any Reason Not To Sell: N
  • Arra Compliant: Y
  • Barrel Type: Standard
  • Base Material: Copper
  • California Pro65 Cancer: No
  • Country Of Origin: Mexico
  • Ean: 74983870677
  • Finish Coating: Tin-Plated
  • For Use With: CT-1701, CT-2600 (CD-2600-P6)
  • Gtin Carton: 5.0075E+13
  • Gtin Package: 74983870677
  • Hazardous Material Flag: N
  • Inside Diameter In : 0.23
  • Inside Diameter Mm : 5.8
  • Insulation Material: Non-Insulated
  • Lead Content Indicator: N
  • Maximum Copper Conductor Size Awg : 6
  • Maximum Operating Temperature C : 150
  • Maximum Operating Temperature F : 302
  • Maximum Voltage V : 2000
  • Maximum Wire Size Awg : 6
  • Mercury Content Indicator: N
  • Min Order Qty: 200
  • Min Order Uom: Piece
  • Minimum Copper Conductor Size Awg : 6
  • Minimum Wire Size Awg : 6
  • Outer Diameter In : 0.32
  • Outer Diameter Mm : 8.1
  • Overall Length In : 1.21
  • Overall Length Mm : 30.7
  • Overall Width In : 0.47
  • Overall Width Mm : 11.9
  • Packaging Type: Bottle
  • Pallet Quantity: 0
  • Pallet Volume: 0
  • Pallet Weight: 0
  • Product Segment: IEI
  • Product Type: Ring Terminal
  • Reach Status: N
  • Restricted Use Of Hazardous Substances: N
  • Rohs Compliant: Compliant
  • Seam Type: Brazed
  • Standard Carton Volume Ft3: 0.0398
  • Standard Carton Weight Pounds: 2.1
  • Standard Package Volume Ft3: 0.004
  • Standard Package Weight Pounds: 0.21
  • Std Carton Height In: 3.7
  • Std Carton Height Mm: 93.98
  • Std Carton Length In: 9.6
  • Std Carton Length Mm: 243.84
  • Std Carton Width In: 3.95
  • Std Carton Width Mm: 100.33
  • Std Ctn Qty: 200
  • Std Package Height In: 1.75
  • Std Package Height Mm: 44.45
  • Std Package Length In: 3.6
  • Std Package Length Mm: 91.44
  • Std Package Width In: 1.8
  • Std Package Width Mm: 45.72
  • Std Pkg Qty : 20
  • Std Pkg Uom: Piece
  • Stud Hole Size In : 4-Jan
  • Stud Hole Size Mm : 6
  • Stud Size: 1/4"
  • Sub Brand: Pan-Term�
  • Tongue Thickness In : 0.045
  • Tongue Thickness Mm : 1.1
  • Tongue Width In : 0.47
  • Tongue Width Mm : 11.9
  • Uom Ea Pk: PK
  • Wire Strip Length In : 16-Jul
  • Wire Strip Length Mm : 11.1

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Electrical Panel Connections
  • Motor Control Centers
  • Power Distribution Equipment
  • Industrial Control Systems
  • Commercial Electrical Installations
  • Maintenance and Repair Operations
  • Electrical Contractor Applications

Why Choose Panduit Quality?

Panduit Pan-Term� terminals deliver proven reliability with cULus Listed and CSA Certified safety compliance. The tin-plated copper construction and brazed seam design ensure long-term performance in demanding electrical environments, backed by Panduit's commitment to professional-grade electrical connectivity solutions.

Manufacturer Resources

Product Specs

Any Reason Not To Sell:
N
Arra Compliant:
Y
Barrel Type:
Standard
Base Material:
Copper
California Pro65 Cancer:
No
Country Of Origin:
Mexico
Ean:
74983870677
Finish Coating:
Tin-Plated
For Use With:
CT-1701, CT-2600 (CD-2600-P6)
Gtin Carton:
5.0075E+13
Gtin Package:
74983870677
Hazardous Material Flag:
N
Inside Diameter In :
0.23
Inside Diameter Mm :
5.8
Insulation Material:
Non-Insulated
Lead Content Indicator:
N
Maximum Copper Conductor Size Awg :
6
Maximum Operating Temperature C :
150
Maximum Operating Temperature F :
302
Maximum Voltage V :
2000
Maximum Wire Size Awg :
6
Mercury Content Indicator:
N
Min Order Qty:
200
Min Order Uom:
Piece
Minimum Copper Conductor Size Awg :
6
Minimum Wire Size Awg :
6
Outer Diameter In :
0.32
Outer Diameter Mm :
8.1
Overall Length In :
1.21
Overall Length Mm :
30.7
Overall Width In :
0.47
Overall Width Mm :
11.9
Packaging Type:
Bottle
Pallet Quantity:
0
Pallet Volume:
0
Pallet Weight:
0
Product Segment:
IEI
Product Type:
Ring Terminal
Reach Status:
N
Restricted Use Of Hazardous Substances:
N
Rohs Compliant:
Compliant
Seam Type:
Brazed
Standard Carton Volume Ft3:
0.0398
Standard Carton Weight Pounds:
2.1
Standard Package Volume Ft3:
0.004
Standard Package Weight Pounds:
0.21
Std Carton Height In:
3.7
Std Carton Height Mm:
93.98
Std Carton Length In:
9.6
Std Carton Length Mm:
243.84
Std Carton Width In:
3.95
Std Carton Width Mm:
100.33
Std Ctn Qty:
200
Std Package Height In:
1.75
Std Package Height Mm:
44.45
Std Package Length In:
3.6
Std Package Length Mm:
91.44
Std Package Width In:
1.8
Std Package Width Mm:
45.72
Std Pkg Qty :
20
Std Pkg Uom:
Piece
Stud Hole Size In :
4-Jan
Stud Hole Size Mm :
6
Stud Size:
1/4"
Sub Brand:
Pan-Term®
Tongue Thickness In :
0.045
Tongue Thickness Mm :
1.1
Tongue Width In :
0.47
Tongue Width Mm :
11.9
Uom Ea Pk:
PK
Wire Strip Length In :
16-Jul
Wire Strip Length Mm :
11.1
