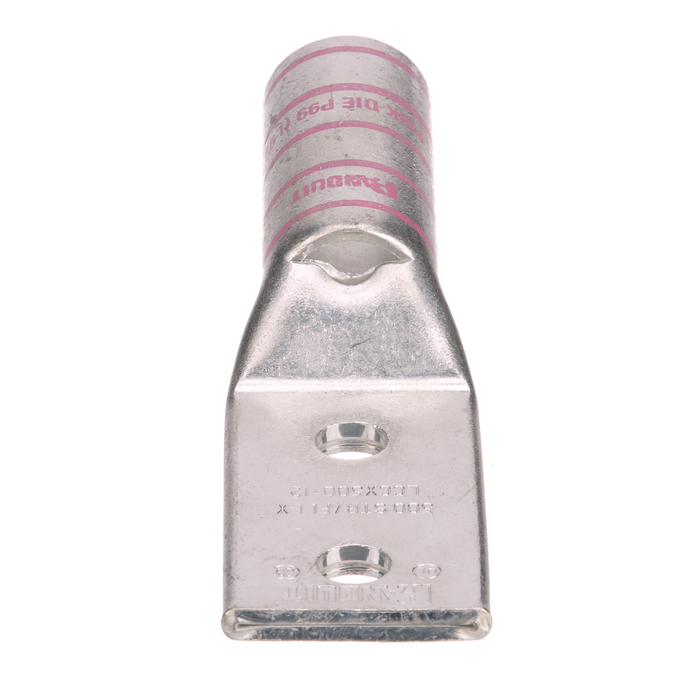

Panduit Pan-Lug LCD6-14A-L Tin-Plated Copper Compression Lug, 6 AWG

Panduit Pan-Lug LCD6-14A-L Tin-Plated Copper Compression Lug, 6 AWG

(No reviews yet) Write a Review

Model: LCMA50-10-L

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Lug™ LCD6-14A-L Tin-Plated Copper Compression Lug, 6 AWG

The Panduit Pan-Lug™ LCD6-14A-L is a two-hole, standard-barrel compression connector lug built from tin-plated copper for 6 AWG copper conductors. The color-coded (blue) barrel is marked with Panduit and competitor die index numbers for fast, correct crimp die selection, while an inspection window lets installers visually confirm full conductor insertion before crimping. Rated to a maximum of 35kV and UL Listed / CSA Certified, this lug suits demanding commercial and industrial power and grounding terminations.

Key Features

  • Conductor Size: Sized for 6 AWG copper conductors with a 7/8 in. wire strip length.
  • Durable Construction: Tin-plated copper base material helps inhibit corrosion and maintain conductivity.
  • Two-Hole Standard Barrel: Beveled barrel entry simplifies conductor insertion during crimping.
  • Inspection Window: Built-in window allows visual verification of full conductor insertion.
  • Color-Coded Barrel: Blue coding with Panduit and competitor die index numbers (T&B Die Index Number 24) speeds correct crimp die selection.
  • Tongue Geometry: Straight tongue angle, 0.48 in. tongue width, 0.08 in. (2.1mm) tongue thickness.
  • Stud Hole: 1/4 in. (6.4mm) stud hole size with 5/8 in. (16mm) stud hole spacing.
  • Barrel Length: 0.81 in. (20.6mm) barrel length accommodates full conductor engagement.

Certifications & Compliance

  • UL Listed to 486A-486B, File #E52164
  • CSA Certified to C22.2 No. 65-13
  • NEBS Level 3 compliant
  • CSA and UL Temperature Rating: 90°C
  • Maximum Voltage: 35kV

Technical Specifications

  • CSA Temperature Rating (°C): 90
  • UL Temperature Rating (°C): 90
  • Inspection Window: Yes
  • Lead Content Indicator: N
  • Mercury Content Indicator: N
  • Stud Hole Spacing (In.): 5/8
  • Wire Strip Length (In.): 7/8
  • Stud Hole Size (In.): 1/4
  • Tongue Thickness (mm): 2.1
  • T & B Die Index Number: 24
  • Maximum Voltage (kV): 35
  • Overall Length (mm): 56.9
  • Product Type: Compression Lug
  • Country of Origin: Mexico

Typical Applications

  • Commercial and Industrial Power Terminations
  • Grounding and Bonding Connections
  • Switchgear and Panelboard Wiring
  • Utility and High-Voltage Cable Terminations up to 35kV
  • Renovation and New Construction Electrical Installations

Why Panduit?

Panduit backs the Pan-Lug™ LCD6-14A-L with tin-plated copper construction, an inspection window for crimp verification, and UL Listed / CSA Certified performance to 486A-486B and C22.2 No. 65-13 standards. Color-coded, die-indexed barrels help installers select the correct crimp die every time, supporting reliable, code-compliant terminations for professional electrical work.

Manufacturer Resources

Product Specs

Barrel Length (In.):
0.81
Standard Package Volume Ft3:
0.0328
Standard Package Weight Pounds:
1.5000
Std. Pkg. UOM:
Piece
Tongue Thickness (In.):
0.08
CSA Temperature Rating (°C):
90
Barrel Entry:
Beveled
Inspection Window:
Yes
Standard Carton Volume Ft3:
0.0000
Color Code:
Blue
Lead Content Indicator:
N
Mercury Content Indicator:
N
Std Package Length MM:
119.38
Sub Brand:
Pan-Lug™
Stud Hole Spacing (In.):
5/8
Wire Strip Length (In.):
7/8
Stud Hole Size (mm):
6.4
Tongue Thickness (mm):
2.1
Product Segment:
IEI
Standard Carton Weight Pounds:
0.0000
Min Order Qty:
1.0000
GTIN Package:
00074983383108
T & B Die Index Number:
24
UOM EA PK:
PK
Barrel Length (mm):
20.6
Pallet Volume:
0.000000
Std Package Width In:
3.35
Any Reason Not to Sell:
N
Barrel Type:
Standard
Stud Hole Spacing (mm):
16
Tongue Width (In.):
0.48
Copper Conductor Size:
6 AWG
Tongue Angle:
Straight
REACH Status:
N
Base Material:
Copper
California Pro65 Cancer:
No
Std Package Length In:
4.7
Maximum Voltage (kV):
35
Finish/Coating:
Tin-Plated
Overall Length (mm):
56.9
UL Temperature Rating (°C):
90
Country of Origin:
Mexico
Std Ctn Qty:
0
Stud Hole Size (In.):
1/4
Product Type:
Compression Lug
Std Package Width MM:
85.09
Pallet Quantity:
0
Std Package Height In:
3.35
Department:
Electrical
Product Group:
Wiring Devices
Pack Size:
100
