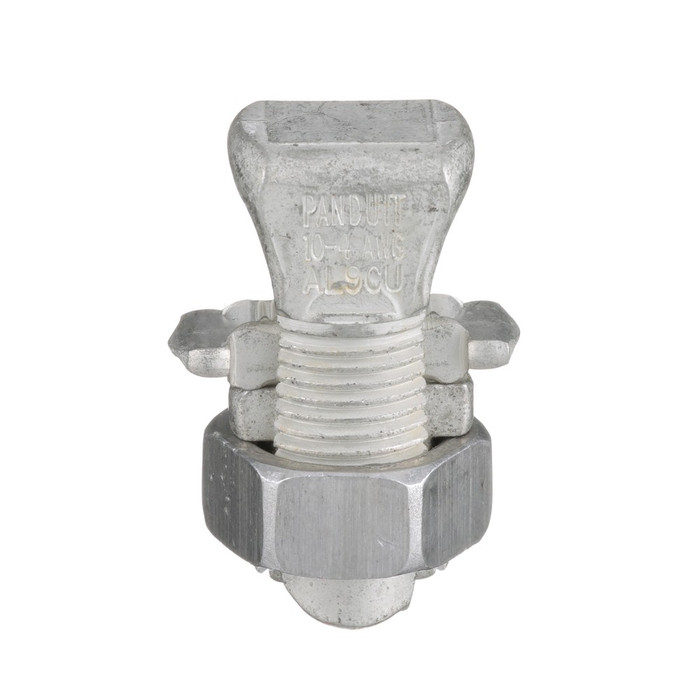

Panduit Pan-Lug™ SBA Series Aluminum Split Bolt Mechanical Connector

Panduit Pan-Lug™ SBA Series Aluminum Split Bolt Mechanical Connector

(No reviews yet) Write a Review

Model: SBA4-C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$23.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Lug™ SBA Series Aluminum Split Bolt Mechanical Connector

The Panduit Pan-Lug™ SBA Series Aluminum Split Bolt Mechanical Connector is a dual-rated aluminum-to-aluminum splice connector engineered for reliable power distribution connections in commercial and industrial electrical systems. Built from aluminum with a tin-plated finish, this Type SBA split bolt connector carries a maximum voltage rating of 600V and a UL temperature rating of 90°C. Sized for a wire range of #4 STR - #10 SOL AWG, it delivers a secure mechanical splice for aluminum conductors while meeting RoHS compliance standards.

Key Features

  • Wire Range: Accommodates #4 STR - #10 SOL AWG conductors for flexible splice and tap connections.
  • Durable Construction: Aluminum body construction provides a dual-rated aluminum-to-aluminum connection for long-term reliability.
  • Split Bolt Design: Type SBA split bolt connector delivers a secure mechanical splice without soldering.
  • Connection Type: Aluminum-to-aluminum connection ensures compatible conductor mating and consistent contact.
  • Voltage Rating: Maximum voltage rating of 600V supports demanding power distribution applications.
  • Finish: Tin-plated finish helps resist corrosion and supports consistent conductivity.
  • Temperature Rating: UL temperature rating of 90°C suits a range of installation environments.

Certifications & Compliance

  • RoHS Compliant
  • UL Temperature Rating of 90°C

Technical Specifications

  • Base Material: Aluminum
  • Finish/Coating: Tin-Plated
  • Maximum Voltage (V): 600
  • UL Temperature Rating (°C): 90
  • Connection Type: Aluminum to Aluminum
  • Country of Origin: United States
  • Std. Pkg. Qty.: 100

Typical Applications

  • Commercial and Industrial Power Distribution
  • Electrical Splicing and Tap Connections
  • Grounding and Bonding Applications
  • Panelboard and Switchgear Wiring
  • New Construction and Electrical Retrofits

Why Panduit?

Panduit's Pan-Lug™ SBA Series split bolt connectors combine an aluminum-to-aluminum connection with a tin-plated finish and a 90°C UL temperature rating for dependable performance in professional electrical installations. Manufactured in the United States and RoHS compliant, this Type SBA connector is built to deliver code-compliant, long-lasting splice connections for demanding power distribution work.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.1047
Standard Package Weight Pounds:
4.9500
REACH Status:
N
Maximum Voltage (V):
600
Base Material:
Aluminum
Std. Pkg. UOM:
Piece
Std Package Length In:
9.15
Finish/Coating:
Tin-Plated
UL Temperature Rating (°C):
90
Country of Origin:
United States
Standard Carton Volume Ft3:
0.0000
Std Package Length MM:
232.41
Mercury Content Indicator:
N
Sub Brand:
Pan-Lug™
Std Ctn Qty:
0
Product Segment:
IEI
Product Type:
Split Bolt Connector
Std Package Width MM:
111.76
Pallet Quantity:
0
Std Package Height In:
4.4
Connection Type:
Aluminum to Aluminum
Standard Carton Weight Pounds:
0.0000
Std Package Height MM:
111.76
Min Order Qty:
1.0000
RoHS Compliant:
Compliant
GTIN Package:
00074983903023
Min. Order UOM:
Piece
ARRA Compliant:
Y
Std. Pkg. Qty.:
100
UOM EA PK:
PK
Pallet Volume:
0.000000
Std Package Width In:
4.4
Hazardous Material Flag:
N
Any Reason Not to Sell:
N
Pallet Weight:
0.0000
Department:
Electrical
Product Group:
Wire Connectors & Terminals
Product Subgroup:
Wire Connectors

Panduit SBA4-C – Frequently Asked Questions

1) What wire sizes does the Panduit SBA4-C split bolt connector take?
The Pan-Lug SBA4-C is sized for #4 STR through #10 SOL AWG conductors. That covers the common branch and feeder tap sizes in that band, and it is the deciding spec: a #2 or larger conductor will not seat in this body, so step up to a larger SBA size for those.
2) Can I use an aluminum split bolt like the SBA4-C to splice copper to aluminum?
No. The SBA4-C is built as an aluminum-to-aluminum connection, so both conductors going into it should be aluminum. For a copper-to-aluminum transition you need a connector specifically rated AL/CU for dissimilar metals. Putting copper into an AL-to-AL split bolt is the wrong application.
3) Is the Panduit SBA4-C rated for 600V feeder work in a panelboard?
Yes, 600V maximum is the rating on the SBA4-C, which covers standard commercial and industrial power distribution up to 600V. Its UL temperature rating is 90 degrees C, so it works with 90 C insulated conductors as long as the circuit ampacity is figured at the correct column for the installation.
4) Do I have to buy a full box of the SBA4-C or can I order a few?
Minimum order on the SBA4-C is 1 piece, so you can pull single connectors for a repair. The standard package is 100 pieces if you are stocking a truck or a job.
5) Does the Panduit SBA4-C meet Buy American and RoHS requirements for a government or institutional job?
It is ARRA compliant and made in the United States, which is what most federally funded specs are looking for. It is also RoHS compliant, and the material flags show no hazardous material and no mercury content.
6) Can the SBA4-C be used for grounding and bonding, not just splices?
Yes. The Pan-Lug SBA split bolt is used for splice and tap connections as well as grounding and bonding work, along with panelboard and switchgear wiring in new construction and retrofits. The constraint is the conductor: aluminum on both sides, within #4 STR to #10 SOL AWG.
7) Is a split bolt the right choice here, or should I be using a compression sleeve?
A split bolt like the SBA4-C makes a mechanical splice with a wrench, no crimp tool and no soldering, so it is the practical pick for field splices, taps, and retrofit work where you cannot get a hydraulic crimper on the conductor. Compression connectors are the better call when the splice needs a permanent, tamper-resistant joint or the installation spec calls one out. Either way this one is limited to aluminum-to-aluminum conductors at 600V or less.
8) Why is the split bolt tin-plated if the body is aluminum?
The tin plating over the aluminum body is a corrosion measure and keeps the contact surface conducting consistently against the aluminum conductor. Bare aluminum oxidizes quickly at the joint, which is what drives up resistance on an aluminum splice over time.
9) How much does a 100-piece package of Panduit SBA4-C split bolts weigh and how big is the box?
The standard 100-piece package runs 4.95 pounds and measures 9.15 by 4.4 by 4.4 inches. Useful if you are figuring shelf space in a stockroom or bundling into a materials shipment.
