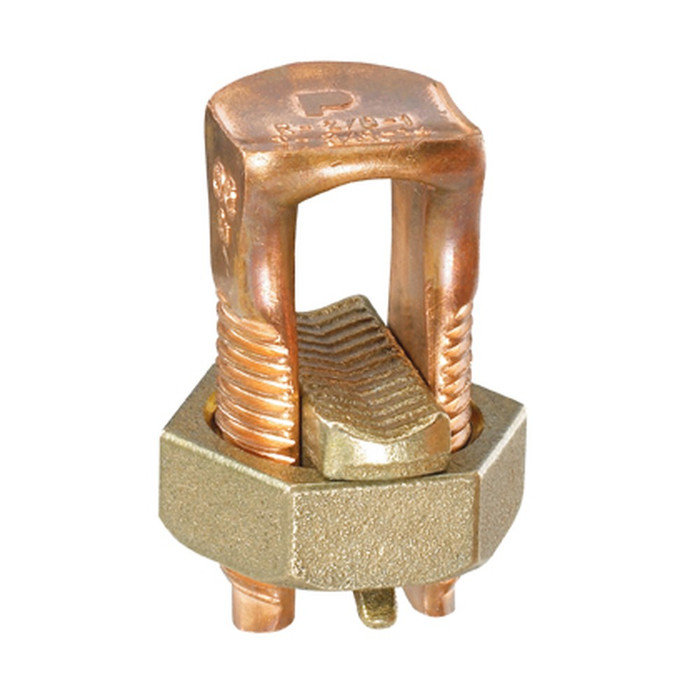

Panduit Pan-Lug SBC Series Copper Split Bolt Connector

Panduit Pan-Lug SBC Series Copper Split Bolt Connector

(No reviews yet) Write a Review

Model: SBC500-1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$105.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Lug SBC Series Copper Split Bolt Connector

The Panduit Pan-Lug SBC Series Copper Split Bolt Connector is a type SBC mechanical connector built for reliable copper-to-copper conductor splicing across a 300 - 500 kcmil range. Constructed from copper for maximum conductivity, this split bolt connector carries a 600V maximum voltage rating and a UL temperature rating of 90°C, making it a dependable choice for demanding electrical and industrial wiring connections.

Key Features

  • Conductor Range: Sized for 300 - 500 kcmil copper conductors, supporting a range of heavy-gauge splicing applications.
  • Durable Copper Construction: Solid copper base material delivers strong conductivity and a secure copper-to-copper connection.
  • Split Bolt Connection Type: Mechanical split bolt design provides a dependable, code-compliant copper-to-copper splice.
  • Voltage Rating: Rated for a maximum of 600V, suitable for demanding power distribution circuits.
  • Temperature Rating: UL temperature rating of 90°C supports use in higher-heat electrical environments.
  • RoHS Compliant: Manufactured to RoHS compliance standards for restricted hazardous substances.

Certifications & Compliance

  • UL 90°C Temperature Rating
  • RoHS Compliant
  • ARRA Compliant

Technical Specifications

  • REACH Status: N
  • Maximum Voltage (V): 600
  • Std Package Length In: 4.4
  • UL Temperature Rating (°C): 90
  • Mercury Content Indicator: N
  • Std Ctn Qty: 0
  • Product Segment: IEI
  • Pallet Quantity: 0
  • Std Package Height In: 2.5
  • ARRA Compliant: Y
  • Std. Pkg. Qty.: 1
  • UOM EA PK: EA
  • Hazardous Material Flag: N
  • Any Reason Not to Sell: N

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Copper Conductor Splicing and Tapping
  • Power Distribution and Panelboard Wiring
  • Grounding and Bonding Connections
  • Heavy-Gauge Conductor Termination Projects

Why Panduit?

Panduit's Pan-Lug SBC Series split bolt connectors combine solid copper construction with a 600V rating and a 90°C UL temperature rating to deliver a secure, code-compliant copper-to-copper splice. Backed by RoHS and ARRA compliance, these mechanical connectors give electrical professionals a dependable option for demanding conductor termination work.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0104
Standard Package Weight Pounds:
0.9300
REACH Status:
N
Maximum Voltage (V):
600
Base Material:
Copper
Std. Pkg. UOM:
Piece
Std Package Length In:
4.4
UL Temperature Rating (°C):
90
Country of Origin:
Brazil
Standard Carton Volume Ft3:
0.0000
Std Package Length MM:
111.76
Mercury Content Indicator:
N
Sub Brand:
Pan-Lug™
Std Ctn Qty:
0
Product Segment:
IEI
Product Type:
Split Bolt Connector
Std Package Width MM:
80.01
Pallet Quantity:
0
Std Package Height In:
2.5
Connection Type:
Copper to Copper
Standard Carton Weight Pounds:
0.0000
Std Package Height MM:
63.5
Min Order Qty:
1.0000
RoHS Compliant:
Compliant
GTIN Package:
00074983904129
Min. Order UOM:
Piece
ARRA Compliant:
Y
Std. Pkg. Qty.:
1
UOM EA PK:
EA
Pallet Volume:
0.000000
Std Package Width In:
3.15
Hazardous Material Flag:
N
Any Reason Not to Sell:
N
Pallet Weight:
0.0000
Copper Conductor Size:
500 kcmil
Department:
Electrical
Product Group:
Wire Connectors & Terminals
Product Subgroup:
Wire Connectors

Panduit SBC500-1 – Frequently Asked Questions

1) What conductor size does the Panduit SBC500-1 split bolt connector take?
The Pan-Lug SBC500-1 is sized for 500 kcmil copper conductors, and the SBC series splice range runs 300 to 500 kcmil. That is heavy feeder territory, so if you are splicing anything smaller than 300 kcmil you want a smaller split bolt in the series rather than this one, a loose fit on a split bolt is a hot joint.
2) Can I use the Panduit SBC500-1 to splice aluminum to copper?
No. The SBC500-1 is a copper-bodied connector rated copper-to-copper only. Putting aluminum in it risks a galvanic/dissimilar-metal joint. For an aluminum or AL-CU splice you need a connector marked AL9CU and the appropriate oxide-inhibiting compound.
3) Is the Panduit SBC500-1 rated for 600V feeder and panelboard work?
Yes, 600V maximum. That covers standard commercial and industrial power distribution, panelboard feeders, and service conductor splices. Above 600V you need a medium-voltage connector system instead.
4) Will this split bolt work with 90 degree C rated THHN?
The SBC500-1 carries a UL temperature rating of 90 degrees C, so it matches 90 degree C insulated conductors such as THHN/THWN-2 without derating the connector. Ampacity of the circuit is still governed by the termination rating at the equipment, not by the splice.
5) Do I need to tape or insulate the Panduit SBC500-1 after making the splice?
Yes. A split bolt is a bare mechanical connector, the copper body is live once the splice is made, so it has to be insulated in the field with tape, a split bolt insulator cover, or heat shrink. Budget for that separately, nothing insulating is included with the connector.
6) Does the Panduit SBC500-1 meet federal Buy American / ARRA requirements and RoHS?
The SBC500-1 is flagged ARRA compliant and RoHS compliant, with no mercury content. Country of origin is Brazil, which matters if a project spec calls for domestic manufacture rather than ARRA compliance alone.
7) Should I use a split bolt or a compression splice on a 500 kcmil copper feeder?
A split bolt like the SBC500-1 is a mechanical, re-enterable splice, you tighten it with a wrench and no hydraulic tool or die set is needed, which is why it wins on service and repair work and in tight pull boxes. A compression sleeve gives a smaller insulated profile and is the choice where the splice must be irreversible or space in the enclosure is critical. For 300 to 500 kcmil copper-to-copper work with hand tools only, the split bolt is the practical option.
8) Is the Panduit SBC500-1 sold individually or in a box?
It ships as a single piece, one connector per standard package, with a minimum order of one. If you are splicing a three-phase feeder with a neutral, order four.
9) How much does one Panduit SBC500-1 weigh and how big is the package?
Standard package weight is 0.93 lb, in a carton measuring 4.4 by 3.15 by 2.5 inches. Useful if you are staging a box of these for a feeder splice job or checking van stock.
How fast can I get the Panduit SBC500-1 delivered?
